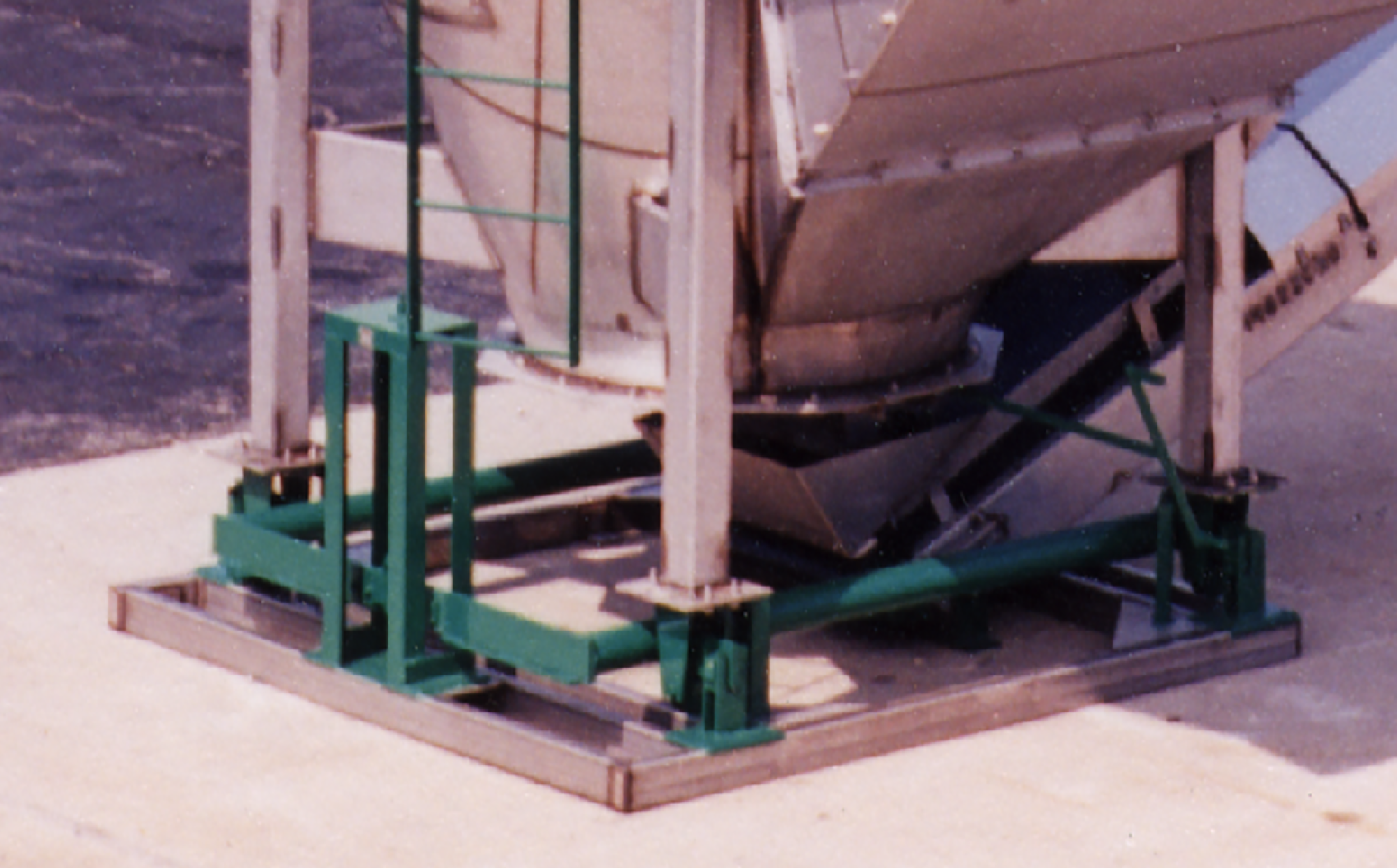

Pipe Lever Scale

  • NTEP Certified and Measurement Canada Approved models available
  • RL20000 alloy steel load cell standard (prices include load cell and ITCM load cell assembly)
  • Mild steel construction, black paint finish
  • Stainless steel, hermetically sealed load cells available

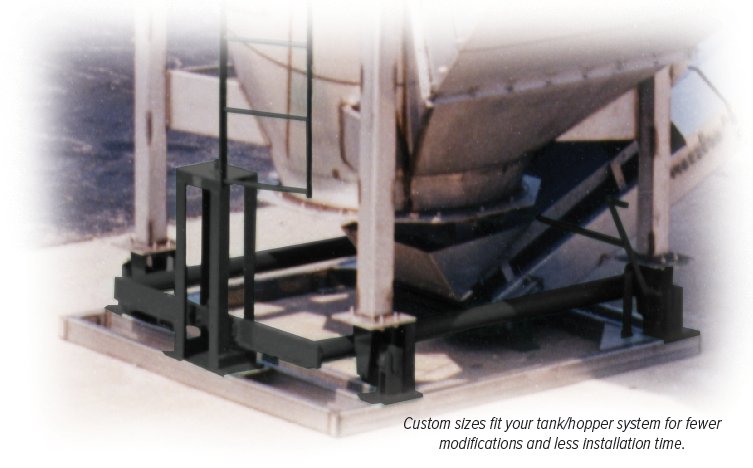

  • Custom ​sizes and capacities available from 5,000 lb - 60,000 lb

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO Measurementcanada Approved BW LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65

End Load Capacity:
100% full scale

mV/V Output:
1.50 - 1.87 mV/V nominal

Cable Length:
20 ft (6.1 m)

Warranty:
One-year limited warranty

Approvals:
NTEP CC 94-126 Model PLS-XXYY-ZZK Class III/IIIL, 5000
Measurement Canada Approved, AM-5114, Legal For Trade on sizes greater than 1.6 m, or a capacity greater than 10,000 kg

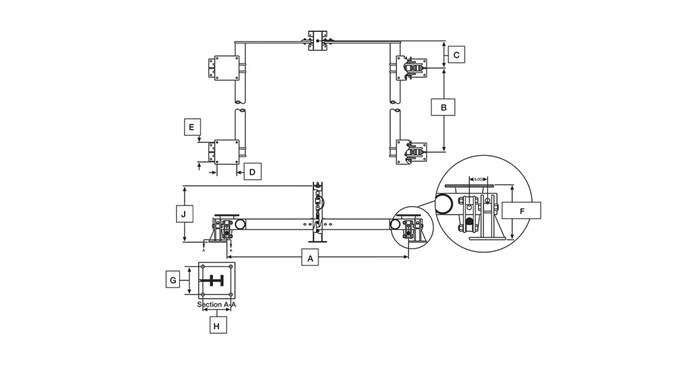

PN Capacity Style Material A B C D E Bearing PN
CM783 25 K A Steel 8 8 8 1/8 6 6 CM755
35055 25 K B Steel 6 6 4 1/2 4 1/2 8 5/8 CM755
46315 25 K B SST 6 6 4 1/2 4 1/2 8 5/8 46323
35054 25 K B Steel 7 3/4 7 3/4 4/6 6 8 1/8 CM755
50040 25 K B Steel 6 7 3/4 6 4 1/2 8 1/8 CM755
50182 25 K B SST 7 3/4 7 3/4 4 1/2 6 8 1/8 46323
39524 5 K C Steel 5 5 3 1/2 3 1/2 5 F731
40452 10 K C Steel 6 6 4 1/2 4 1/2 6 3/4 40460
39982 20 K/25 K/30 K C Steel 9 9 6 1/2 6 1/2 11 1/8 39990
39128 40 K/50 K C Steel 12 12 9 1/4 9 1/4 14 3/4 39134
101601 60 K C Steel 12 12 7 1/2 5 14 3/4 39134
115797 25 K/30 K D Steel 6 6 - - 6 17/32 CM755



Resources / Downloads

Title Download Email
Pipe Lever Scale Catalog Page Download Email

Title Version Revision Download Email Category Archived
Pipe Lever Scale Installation Manual A Download Email Pipe Levers|Agricultural Pipe Levers No

Title Download Email
Pipe Lever Scale Questionnaire Download Email

Title View Download Email Category
Mechanical Basics: Part 1 View Download Email Floor Scales|Mechanical Scales
Mechanical Basics: Part 2 View Download Email Mechanical Scales
Mechanical Basics: Part 3 View Download Email Mechanical Scales
Mechanical Basics: Part 4 View Download Email Mechanical Scales
MS-101 Mechanical Scale Training View Email Portable Beam Scale|Mechanical Scales

Parts

Part # Description List Price Cart
Consult Pipe lever scale, submit questionnaire

Call for price

Options

No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
