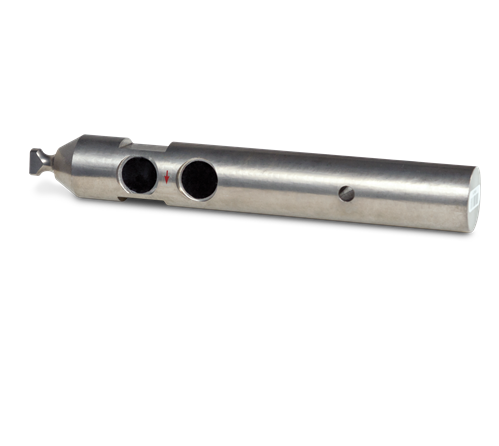

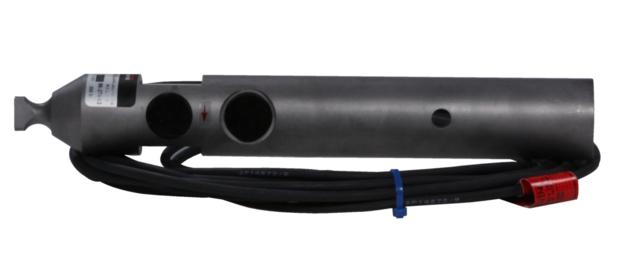

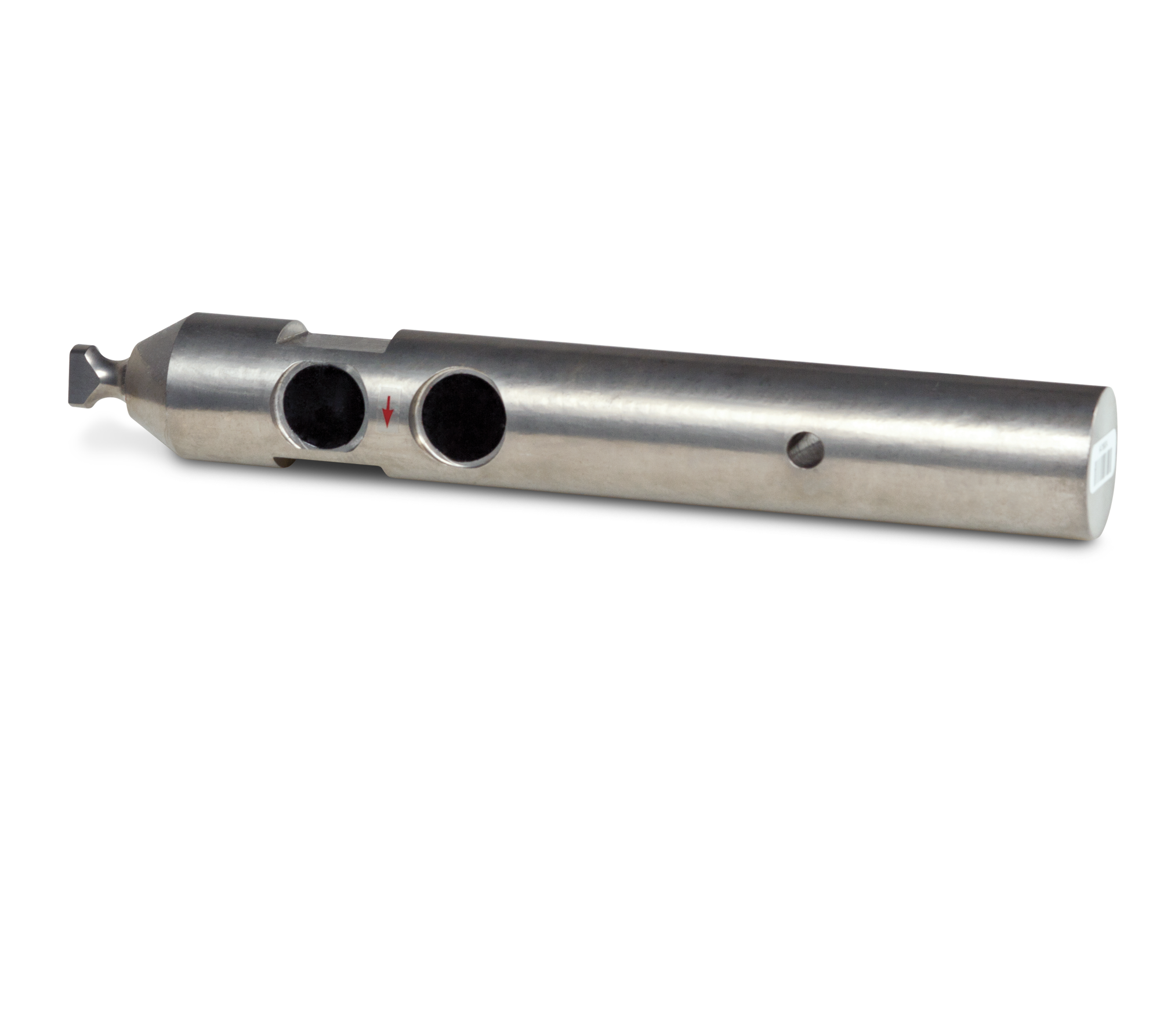

Rice Lake RL32011WB-L, Single-Ended Beam Load Cell

The Legal for Trade RL32011WB-L is our direct link-style replacement for the Avery Weigh-Tronix® Weigh Bar®, improved upon with stainless steel construction and IP67 rating for a variety of floor scale, mount assembly and truck scale designs. Standard capacities range from 1,250 lb to 10,000 lb.

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo

WARNING: Cancer and Reproductive Harm California Proposition 65

Full Scale Output:
2.0 ± 0.1%) mV/V

Output Resistance:
350 (± 3) ohm

Input Resistance:
385 (± 10) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated range
14° F to 104° F/-10° C to 40° C
Operating range
0° F to 150° F/-18° C to 65° C

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5-10 VDC

Combined Error:
0.02% full scale

Non-Repeatability:
± 0.01% full scale

Insulation Resistance:
5,000 megaohms

Cable Length:
20 ft

Cable Diameter:
0.190 polyurethane jacket

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal

Warranty:
Two-year limited warranty

Approvals:
NTEP

Rated Capacity A B C D E
lb/in
1,250 11.50 7.12 8.52 1.25 3.0
2,500 11.50 8.5 8.4 1.62 3.0
5,000 10.9 5.5 7.4 2.0 3.0
10,000 12.6 5.9 8.0 2.5 3.0





Resources / Downloads

Parts

Part # Description List Price Cart
119788 Load Cell,SEB RL32011WB-L 1.25k 1250lb 20ft 2mv/v 350 Ohm SST EW NTEP III 5 M IP67 Link

List Price: $695.00

119789 Load Cell,SEB RL32011WB-L 2.5k 2500lb 20ft 2mv/v 350 Ohm NTEP III 5M EW IP67 SST Link

List Price: $695.00

119790 Load Cell,SEB RL32011WB-L 5k 5000lb 20ft 2mv/v 350 Ohm SST EW NTEP III 5 M IP67 Link

List Price: $795.00

119791 Load Cell,SEB RL32011WB-L 10k 10000lb 20ft 2mv/v 350 Ohm SST EW NTEP III 5 M IP67 Link

List Price: $895.00

Options

No options found for this product
