Rice Lake RL32018S Stainless Steel, Single-Ended Beam Load Cell

The RL32018S stainless steel load cell is available in capacities from 250 lbs to 20,000 lbs. Sealed to IP66 standards, each cell includes 20 ftt of cable and is FM approved. NTEP certified from 1,000 lb to 10,000 lbs.

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65

Full Scale Output:
3.0 mV/V ±0.05% current matched

Output Resistance:
350 (± 3) ohm

Input Resistance:
400 (± 20) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated range:
14° F to 104° F (-10° C to 40° C)
Operating range:
0° F to 150° F (-18° C to 65° C)

Seal Type:
Environmentally sealed, IP66

Safe Overload:
150% full scale

Rated Excitation:
10 VDC (15 V maximum)

Combined Error:
0.017% full scale

Insulation Resistance:
>5,000 megohms

Deflection:
0.2 mm - 0.4 mm

Cable Length:
20 ft

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
Two-year limited warranty

Approvals:
cFMus
NTEP

Rated Capacity A B C D E F G H I J K L M N
lb/in
250-500 1.00 0.59 0.96 2.20 1.24 5.12 0.53 0.70 1/2-20 UNF 3.00 1.00 0.62 0.25 0.13
1,000-5,000 SE 1.24 0.59 0.96 2.20 1.24 5.12 0.53 0.70 1/2-20 UNF 3.00 1.00 0.62 0.25 0.13
5,000 LE - 10,000 1.50 - 1.45 2.99 1.50 6.75 0.80 0.70 3/4-16 UNF 3.75 1.50 0.75 - -
15,000-20,000 2.00 - - 4.00 2.00 8.75 1.06 - 1-14 UNS 4.90 2.00 1.00 - -





Resources / Downloads

Title Download Email
RL32018S Load Cell Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
Your First Choice in Load Cells Download Email Load Cells
Load Cell Wiring Guide Request Download Email Load Cells
Load Cell Selection Guide Request Download Email Load Cells|Weigh Modules
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules
Load Cell and Weigh Module Handbook Request Download Email Load Cells|Weigh Modules

Title View Download Email Category
Rice Lake's Load Cell Service, Selection and Speed View Download Email Load Cells

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells
Properly Welding on Structures with Load Cells Download Email Load Cells

Parts

NTEP Certified

Part # Description List Price Cart
189166 Load Cell,SEB RL32018S- 2500lb 20ft 3mv/v 350 Ohm NTEP III 5M FM WW IP66 SST

List Price: $325.00

189164 Load Cell,SEB RL32018S- 1000lb 20ft 3mv/v 350 Ohm NTEP III 5M FM WW IP66 SST

List Price: $325.00

189165 Load Cell,SEB RL32018S- 2000lb 20ft 3mv/v 350 Ohm NTEP III 5M FM WW IP66 SST

List Price: $325.00

189167 Load Cell,SEB RL32018S- 4000lb 20ft 3mv/v 350 Ohm NTEP III 5M FM WW IP66 SST

List Price: $325.00

189168 Load Cell,SEB RL32018S- 5000LBSE 20ft 3mv/v 350 Ohm NTEP III 5M FM WW IP66 SST

List Price: $325.00

189169 Load Cell,SEB RL32018S- 5000LB LE 20ft 3mv/v 350 Ohm NTEP III 5M FM WW IP66 SST

List Price: $415.00

189170 Load Cell,SEB RL32018S- 10000lb 20ft 3mv/v 350 Ohm NTEP III 5M FM WW IP66 SST

List Price: $415.00

Non-NTEP Certified

Options

No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.

Related Products

Portals 0 Products 9Ae2d04223af4e798a606fe00da6cc36 Orig

Rice Lake RL35023S Painted Stainless Steel, Single-Ended Beam Load Cell

RL35023S Painted Single Ended Beam Stainless Steel NTEP Load Cell

Portals 0 Products Cffa63e74b1b4441bdd482c24e1f7116 Orig

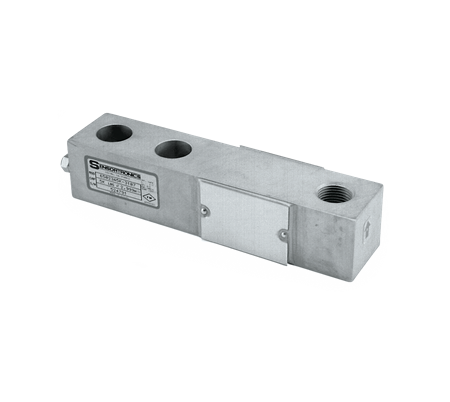

VPG Sensortronics 65023SS, Stainless Steel Single-Ended Beam Load Cell

The VPG Sensortronics 65023SS stainless steel, single-ended beam load cell is designed for low-profile floor scales and is environmentally protected with stainless steel side plates.

Portals 0 Products 7A987f9ae258421d90b50cf91f95dc85 Orig

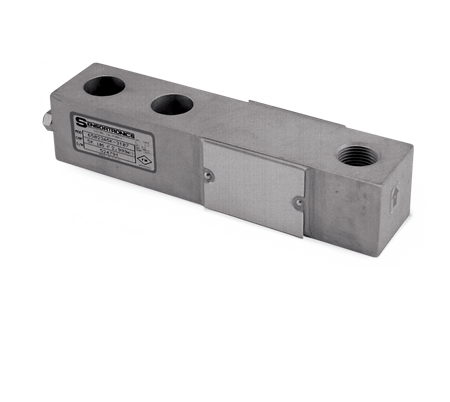

VPG Sensortronics 65023S Stainless Steel, Single-Ended Beam Load Cell
