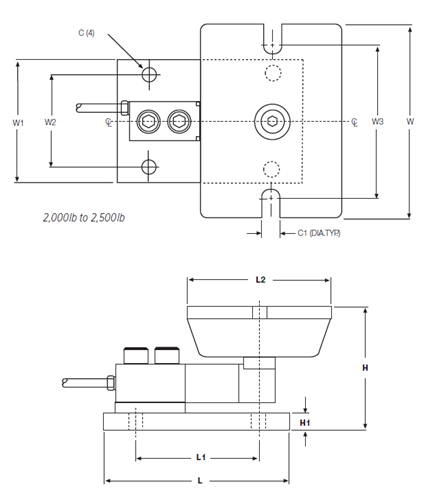

RL50210TA Mini Tank Weigh Module Kit

Complete Kit Includes

• Three or four neoprene isolation/compression mounts with load cells

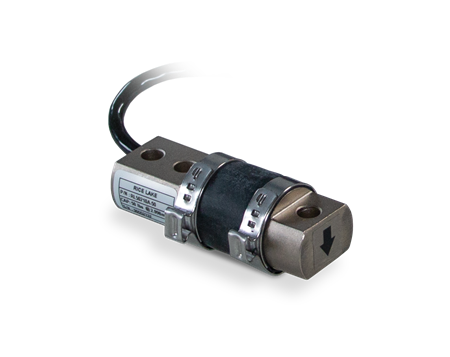

  • 50 to 250 lb mild steel: RL50210

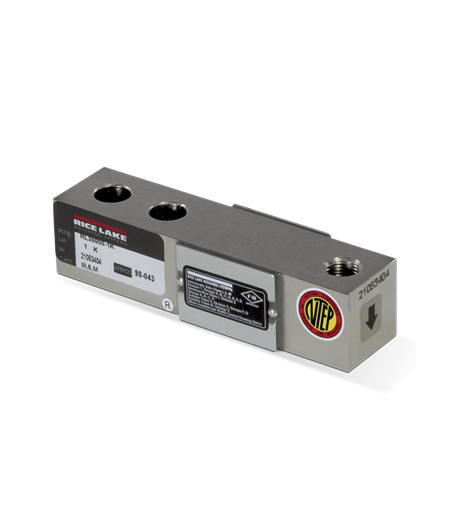

  • 500 lb mild steel: RL30000, RL50210 or RL50225

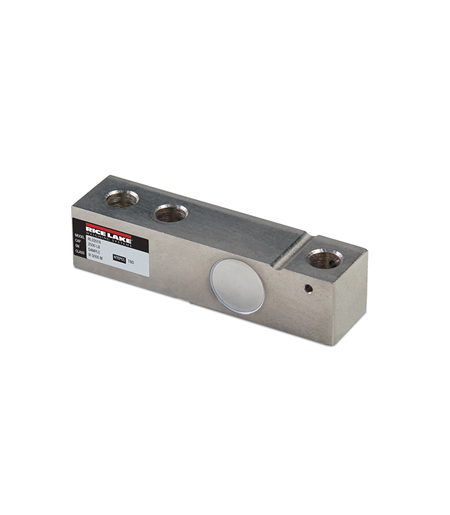

  • 1,000 to 2,500 lb mild steel: RL32018

  • 500 lb stainless steel: RL39123 or equivalent

  • 1,000 to 2,500 lb stainless steel: RL32018S

• One JB4SS NEMA Type 4X stainless steel signal trim junction box

• 25 ft of hostile environment EL147HE SURVIVOR® load cell cable

Standard Features

• NTEP Certified load cells (1,000 lb, 2,000 lb and 2,500 lb only)

• Zinc-plated mild steel or stainless steel assemblies

• Capacities (per module): 50 to 2,500 lb

• Neoprene isolation mounts allow for minor misalignment, thermal expansion and shock absorption

• Overload stop provides durability

Applications

• Small tanks and hoppers

• Conveyor/In-motion weighing

• Small platform scales where minor shock loading may occur

Optional Features

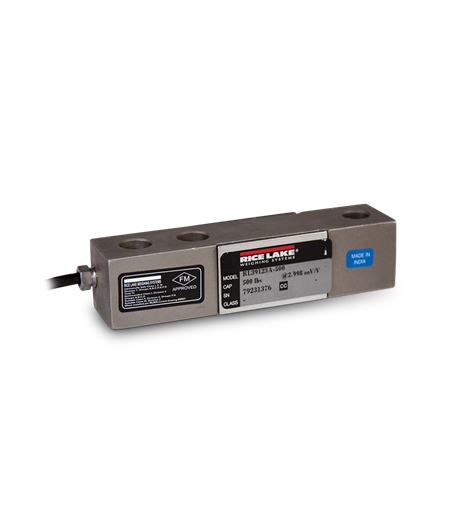

• Stainless steel modules available in 500 lb capacities with RL39123 stainless steel load cells
