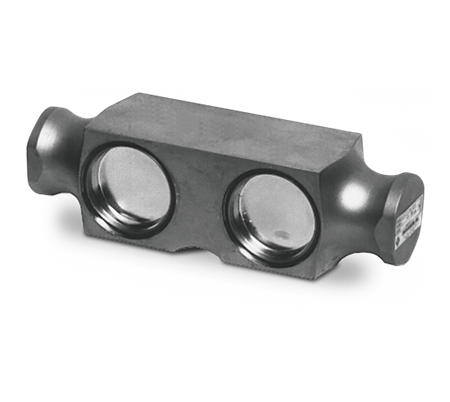

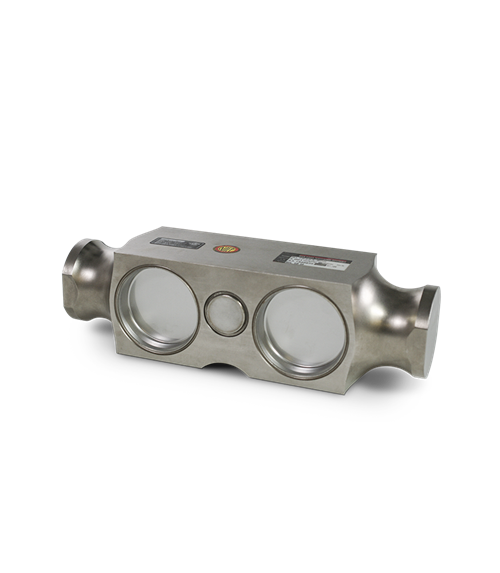

Rice Lake RL75223 Alloy Steel, Double-Ended Beam Load Cell
High performance end-loaded, center-supported shear beam. Designed for low-profile truck and track scales in harsh environments. Welded seal provides superior protection. Parallel link loading provides free movement in all horizontal directions. Compatible with Translink Mounts. Capacities range from 50,000 lb to 100,000 lb. Complete with 40 ft of load cell cable.
Approvals
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
RL75223 Load Cell Specifications
|
Full Scale Output: Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: Safe Sideload: Rated Excitation: Non-repeatability: Combined Error: Insulation Resistance: Deflection at Capacity: |
Cable Length: Cable Diameter: Cable Color Code: Warranty: Approvals: |

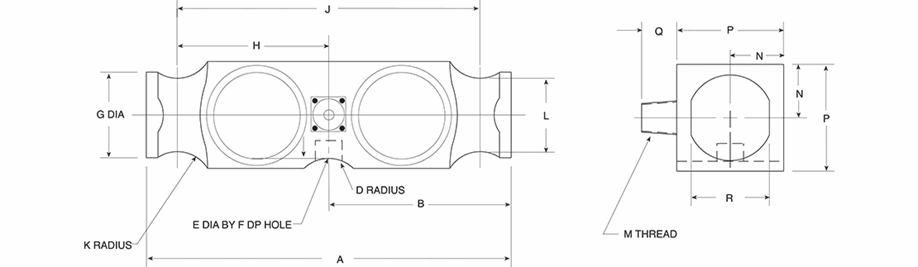

RL75223 Load Cell Dimensions
| Rated Capacity | A | B | D | E | F | G | H | J | K | L | M | N | P | Q | R |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| lb/in | |||||||||||||||
| 50,000 to 65,000 | 10.25 | 5.12 | 1.00 | 0.75 | 0.78 | 2.40 | 4.25 | 8.50 | 1.00 | 2.06 | 1/2-14 NPT | 1.50 | 3.00 | 1.03 | 2.20 |
| 100,000 | 10.25 | 5.12 | 1.00 | — | — | 2.40 | 4.25 | 8.50 | 1.00 | 2.06 | 1/2-14 NPT | 1.50 | 3.00 | 1.03 | 2.20 |
Resources / Downloads
Sales Literature
| Title | Collateral Wizard | Request | Download | Category | |
|---|---|---|---|---|---|
| Load Cell Wiring Guide | Request | Download |  Email |
Load Cells | |
| Load Cell Selection Guide | Request | Download | Email |
Load Cells|Weigh Modules | |
| Load Cell and Weigh Module Selection Guide | Request | Download | Email |
Load Cells|Weigh Modules | |
| Load Cell and Weigh Module Handbook | Request | Download | Email |
Load Cells|Weigh Modules |
Parts
40 ft Cable
| Part # | Description | List Price | Cart |
|---|---|---|---|
| 21611 | Load Cell,DEB RL75223-50K 50,000lb 40ft 3mv/v 700 Ohm NTEP IIIL 10M WW IP67 WS |
List Price: $900.00 |
|
| 21612 | Load Cell,DEB RL75223-65K 65,000lb 40ft 3mv/v 700 Ohm NTEP IIIL 10M WW IP67 WS |
List Price: $900.00 |
|
| 21613 | Load Cell,DEB RL75223- 100K 100,000lb 40ft 3mv/v 700 Ohm NTEP IIIL 10M WW IP67 WS |
List Price: $1,160.00 |
60ft Cable
Related Products

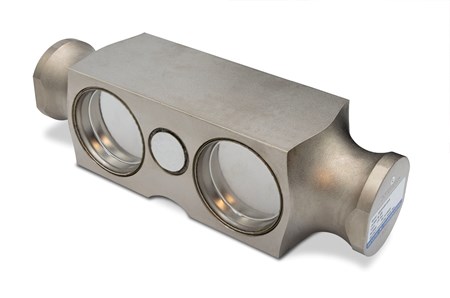

VPG Revere 5223 Double-Ended, Alloy Steel, Load Cell
VPG Revere 5223 is a high-performance, end-loaded, center-supported, double-ended beam load cell designed for low-profile truck and truck scales in harsh environments.

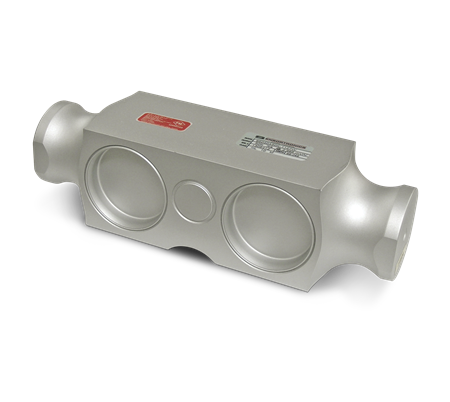

VPG Sensortronics 65040A-1127W Alloy Steel, Double-Ended Beam Load Cell
The VPG Sensortronics 65040A-1127W is an alloy steel, epoxy painted and welded seal double link center loaded load cell.

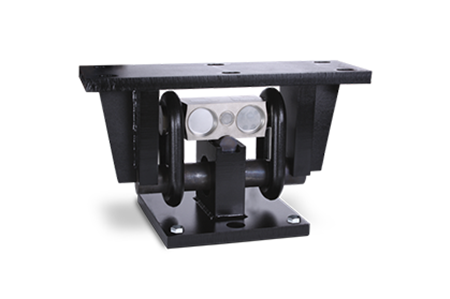

Translink™ Parallel Link Truck Scale Assembly
