Capacities (per module): 25,000 to 100,000 lb
Painted mild steel construction
Center-supported, end-loaded, double-ended shear beam design
Free movement in all directions in the horizontal plane with virtually no friction
Links provide optimal loading conditions for the cell
Self-centering
Requires no check rods
Utilizes cells with 3 mV/V output

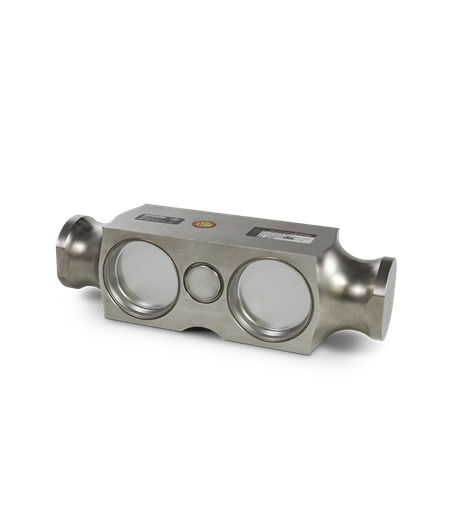

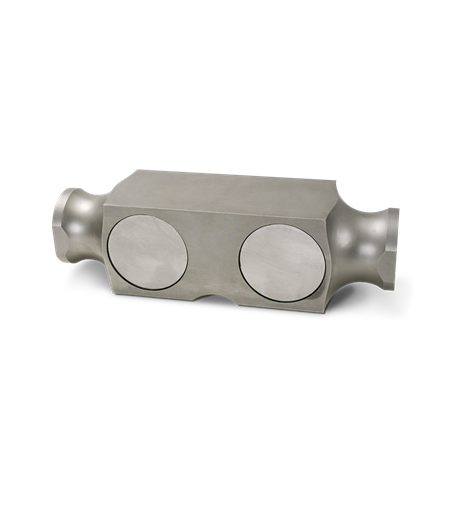

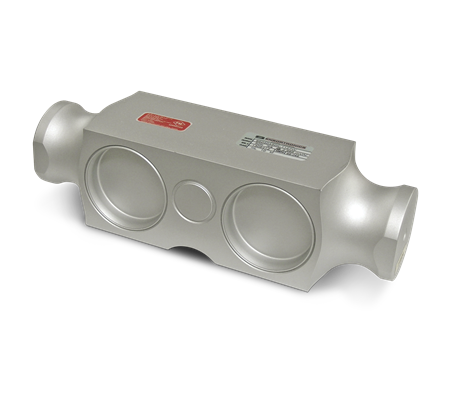

Compatible with Rice Lake RL75223 and RL75040, VPG® Revere® 5223 and VPG Sensortronics® 65040A load cells
Applications
Truck scales
Heavy-capacity horizontal tanks

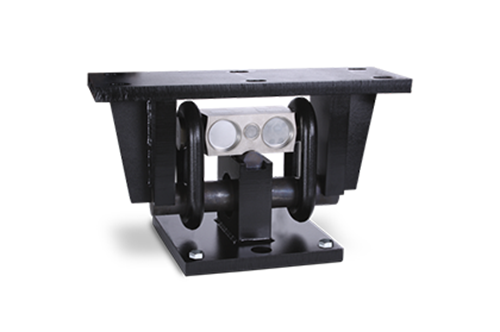

The Translink parallel link truck scale assembly is designed for use with Rice Lake Weighing Systems’ RL75223 and RL75040, VPG Revere 5223 or VPG Sensortronics’ 65040A load cells. This design allows the scale platform to move freely in all directions in a horizontal plane while causing the platform to self-center because of the pendulous action of the links. The unique parallel link design eliminates the need for costly and troublesome checkrods. Simply install platform bumpers and forget about over-travel. This mount is ideal for heavy-capacity weighbridges.
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 17970 | Mount,Translink 50,000- 100,000 lb Mild Steel Painted Compression No Cell For RL75223 | List Price: $885.00 |
