RL50225TA Mini Tank Weigh Module Kit

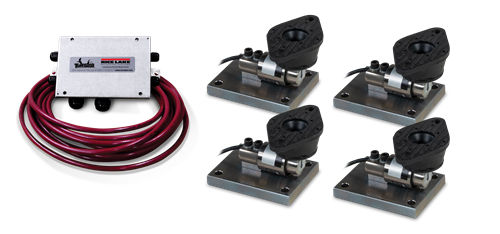

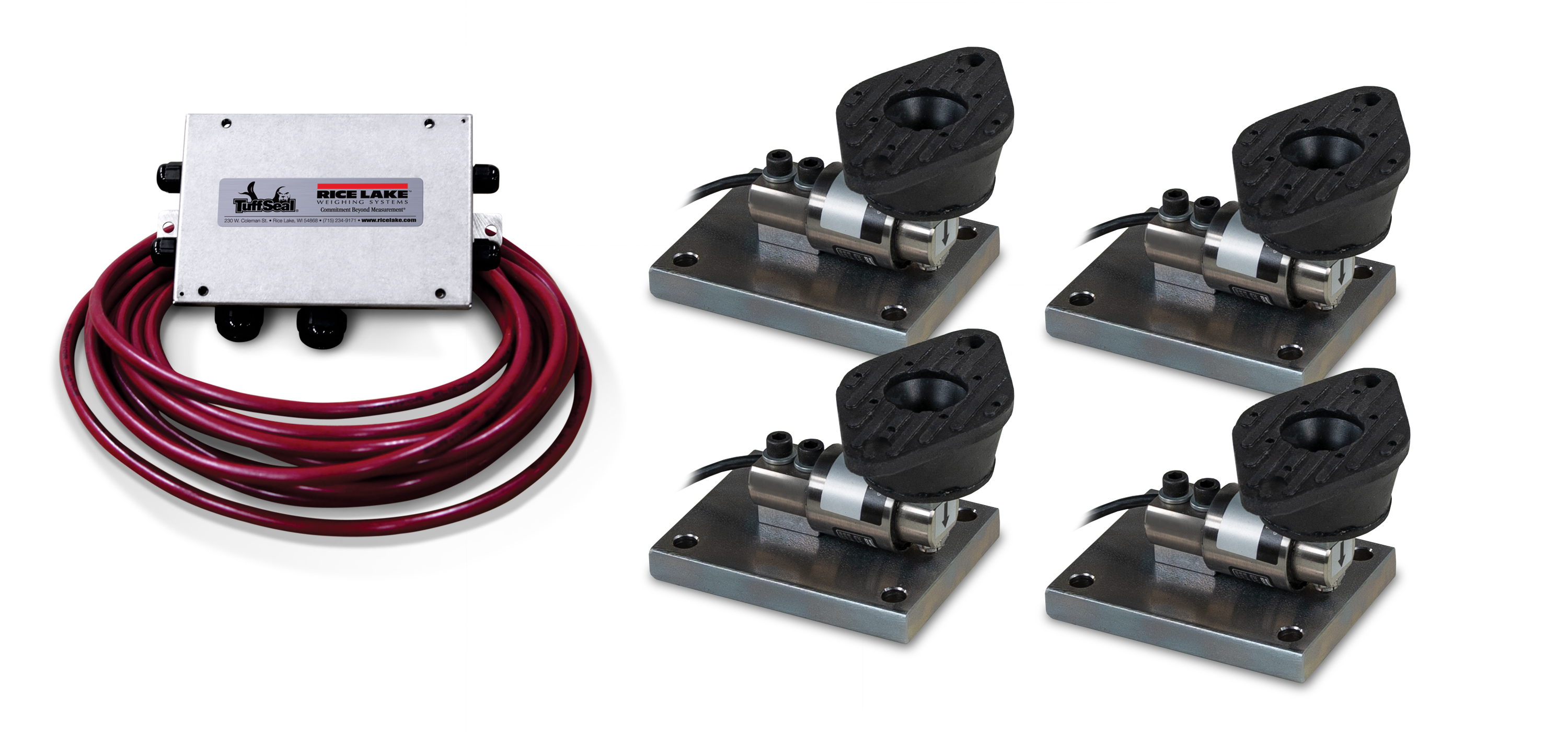

Complete Kit Includes

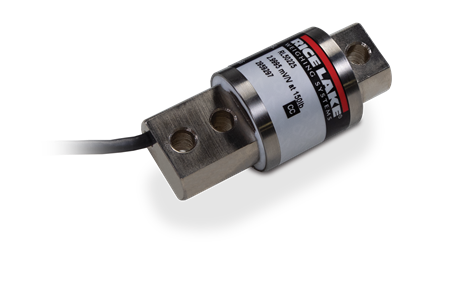

- Three or four neoprene isolation/compression mounts with load cells
- 50 to 250 lb mild steel: RL50225
- One JB4SS NEMA Type 4X stainless steel signal trim junction box
- 25 ft of hostile environment EL147HE SURVIVOR® load cell cable
Standard Features
- Zinc plated mild steel assemblies
- Weighing ranges from 50 to 250 lb per module
- Neoprene isolation mounts allow for minor misalignment, thermal expansion and shock absorption
- Overload stop provides durability
Applications
- Small tanks and hoppers
- Conveyor/In-motion weighing
- Small platform scales where minor shock loading may occur
Approvals
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
Industrial Weigh Module

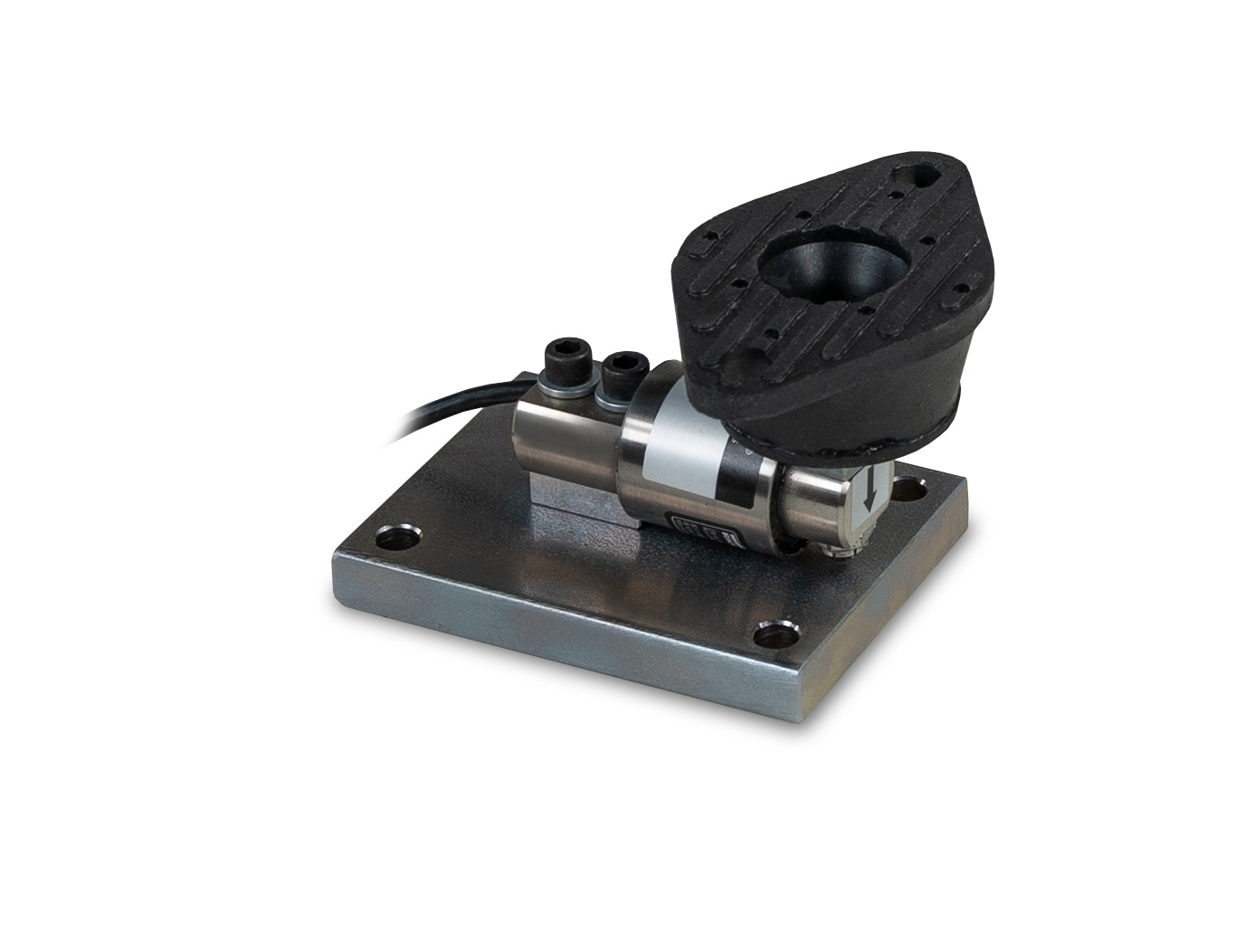

The RL50225TA mini tank weigh module kit can be used in multiple medium-capacity weighing applications, including tanks, conveyors and small platform scales. The mounts can weigh between 50 and 250 pounds and are constructed from zinc-plated mild steel.

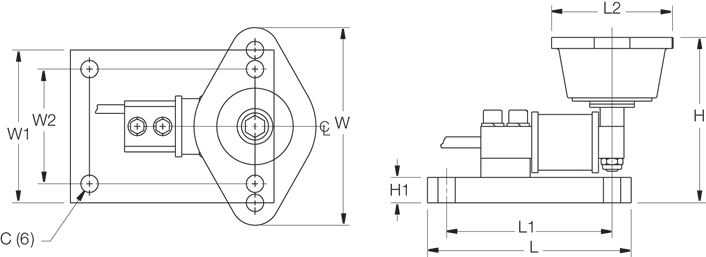

RL50225TA Dimensions
| Rated Capacity | C | C1 | H | H1 | L | L1 | L2 | W | W1 | W2 | W3 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| lb/in | |||||||||||
| 50 to 250 | 0.34 | - | 3.13 | 0.50 | 4.00 | 3.25 | 2.38 | 3.88 | 3.00 | 2.25 | - |
Resources/Downloads
Parts
Single Module (Includes Load Cell)
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 232143 | Mount Assy, RL50225TA-50 50lb Mild Steel Zinc Plated Compression INCL RL50225-50lb |
List Price: $470.00 |
|
| 232142 | Mount Assy, RL50225TA-100 100lb Mild Steel Zinc Plated Compression INCL RL20225-100lb |
List Price: $470.00 |
|
| 232144 | Mount Assy, RL50225TA-150 150lb Mild Steel Zinc Plated Compression INCL RL50225-150lb |
List Price: $470.00 |
|
| 232145 | Mount Assy, RL50225TA-250 250lb Mild Steel Zinc Plated Compression INCL RL50225-250lb |
List Price: $470.00 |
3-Module Kit
4-Module Kit
