RoughDeck® AX-1 Axle Scale

Scale

  • Sizes: 7.5, 9.5 or 11.5 ft lengths
  • Capacity: 50,000 lb
  • Includes (2) 1-8 NC eye bolts
  • Contains four environmentally sealed, IP67, 20,000 lb single-ended, shear beam load cells
  • Treaded top plate
  • JB4SS TuffSeal® signal trim top access junction box
  • Top access foot adjustment holes
  • Carbon steel captured ball feet
  • 20 ft SURVIVOR® EL147HE cable
  • Non-Legal for Trade

Options:

  • Ramps: 10 x 4 ft, treaded top plate
  • Scale frame

End Loading Capacity:
80% full scale at 50,000 lb
Warranty:
Load cells two years, all other components one-year limited warranty

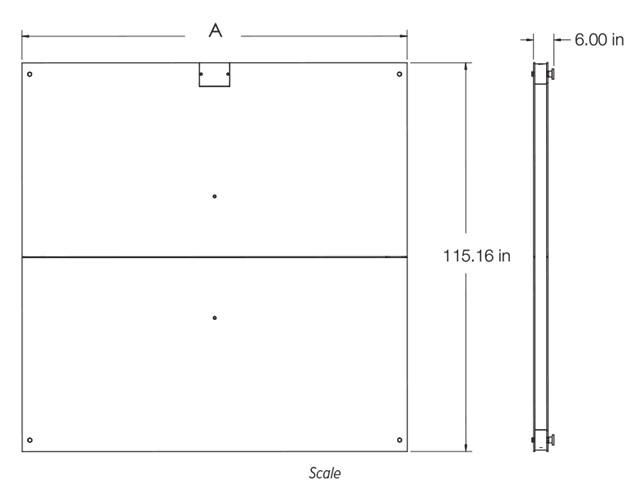

Part Number A
169649 90.00 in
169650 114.00 in
169651 138.00 in

Part Number A1
169652 95.75 in
169653 119.75 in
169654 143.75 in

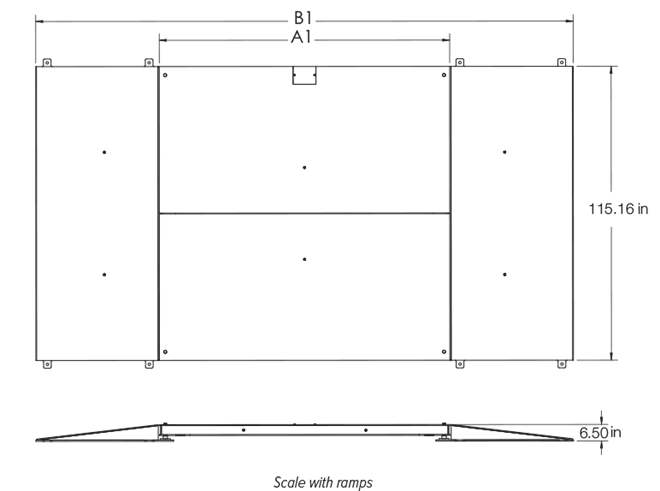

Part Number A B
169645 90.00 in 191.75 in
169647 114.00 in 215.75 in
169648 138.00 in 239.75 in



Part Number A1 B1
169649 90.00 in 187.00 in
169650 114.00 in 211.00 in
169651 138.00 in 235.00 in

Resources / Downloads

Title View Email Category Type
Noble Mountain View Email Vehicle Scale System Application Story
Building Legacies from the Ground Up View Email Application Story

Title Download Email
RoughDeck AX-1 Catalog Page Download Email

Title Version Revision Download Email Category Archived
RoughDeck AX-1 Installation Manual Download Email Axle Scales No

Title Collateral Wizard Request Download Email Category
RoughDeck AX-1 Request Download Email Axle Scales
Axle Scale Comparative Matrix Request Download Email Axle Scales

Parts

Scale Only

Part # Description List Price Cart
169649 Scale,Roughdeck AX-1 Axle 115.16in Width X 90in Length X 6in Height Mild Steel 50,000lb

List Price: $16,550.00

169650 Scale,Roughdeck AX-1 Axle 115.16in Width X 114in Length X 6in Height Mild Steel 50,000lb

List Price: $18,630.00

169651 Scale,Roughdeck AX-1 Axle 115.16in Width X 138in Length X 6in Height Mild Steel 50,000lb

List Price: $20,700.00

Scale, bundled with scale frame

Options

Scale frame only

Part # Description List Price Cart
169652 Frame ASSY,Roughdeck AX-1 Mild Steel 120in Width x 95in Length x 6.75in Height

List Price: $2,900.00

169653 Frame ASSY,Roughdeck AX-1 Mild Steel 120in Width x 119in Length x 6.75in Height

List Price: $3,365.00

169654 Frame ASSY,Roughdeck AX-1 Mild Steel 120in Width x 143in Length x 6.75in Height

List Price: $5,325.00

Ramp, attaches to scale frame

Ramp, attaches to scale

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
