RoughDeck® QC-X Quick Clean Extreme Solid Base Plate Floor Scale

  • Rugged washdown design, rigid 304 stainless steel frame constructed with continuous welds
  • Meets HACCP requirements
  • Manual drop-in-place safety bars
  • Four stainless steel, hermetically sealed, IP69K shear-beam load cells
  • 20 ft of SURVIVOR® EL147HE hostile environment cable for connecting junction box to indicator
  • Remote TuffSeal® JB4SS stainless steel NEMA Type 4X junction box can be mounted up to 15 ft away
  • 1/4 in top plate
  • Four adjustable stainless steel SUREFOOT™ support feet
  • Top plate opens 75 degrees
  • Tool-less top plate lock downs

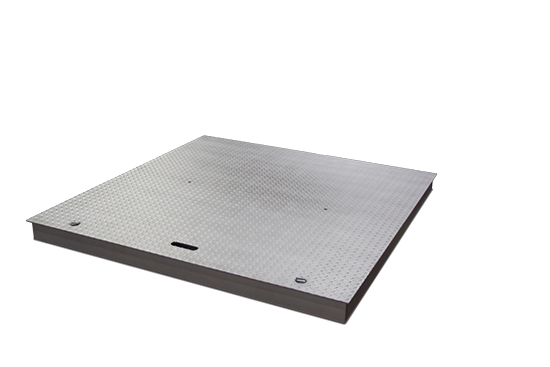

  • Top plate available with a smooth deck or diamond treadplate
  • Two 1/2-20 NF threaded eyebolt holes for lifting scale into pit frame

Approvals

Some approval documents are available to view by clicking the icons below.

LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65

Safeguard Against What Lies Beneath

What can’t be seen can lead to devastating consequences—both for production facilities and consumers. For ultimate microbial resistance in sanitary environments, Rice Lake’s RoughDeck QC-X washdown floor scale is designed to safeguard against microscopic bacteria in food processing, pharmaceutical and chemical applications.

The RoughDeck QC-X base is composed of solid, stainless steel, vertical plates—providing superior protection against bacteria and mold growth. The rugged design incorporates 304 stainless steel construction and four welded-seal load cells with PTFE cable for steam cleaning and washdown areas. The RoughDeck QC-X is designed to create ideal cleaning conditions for strict sanitation requirements.

When protection matters most, Rice Lake’s QC-X is the ideal solution for strict sanitary washdown environments.

Extreme Resistance

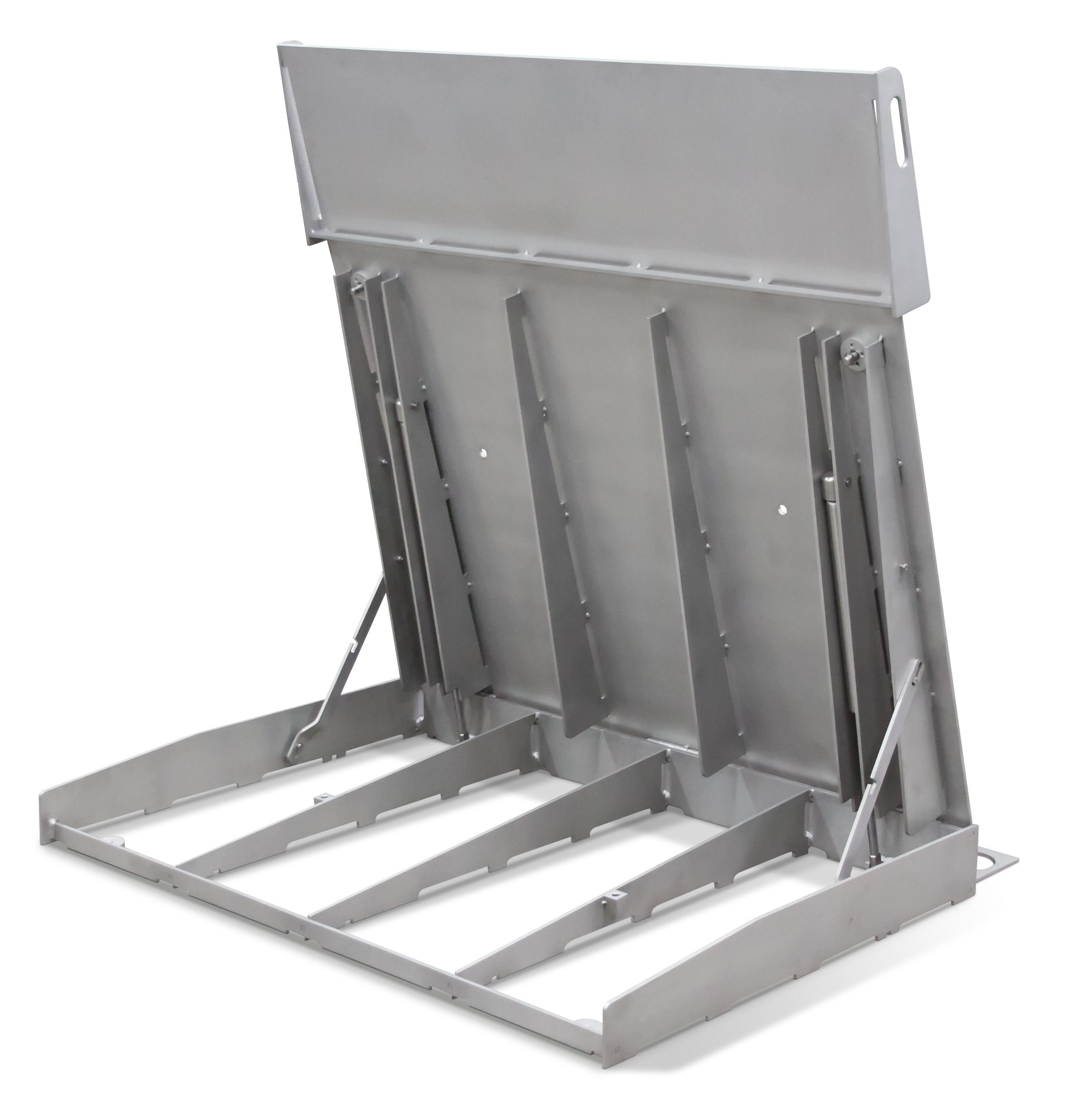

The scale base is built from solid, stainless steel plates. The absence of tubes or channels means peace of mind when cleaning the scale. Continuous welds on the solid base plates follow strict sanitary design principles.

Extreme Access

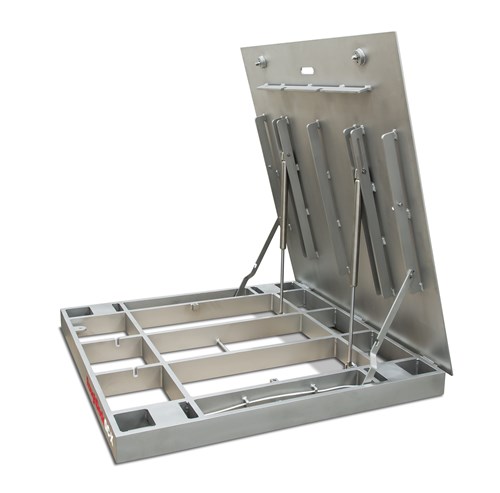

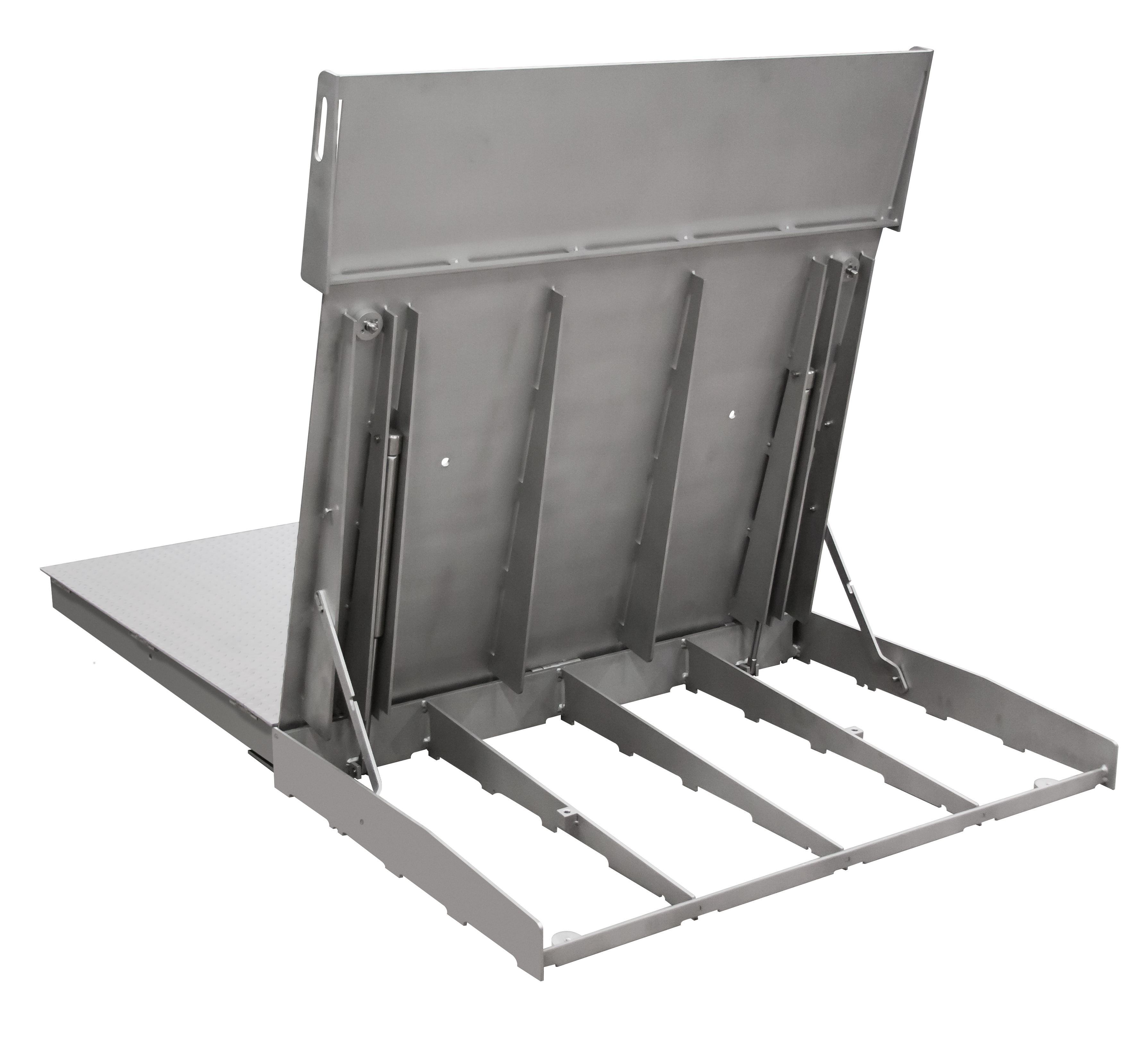

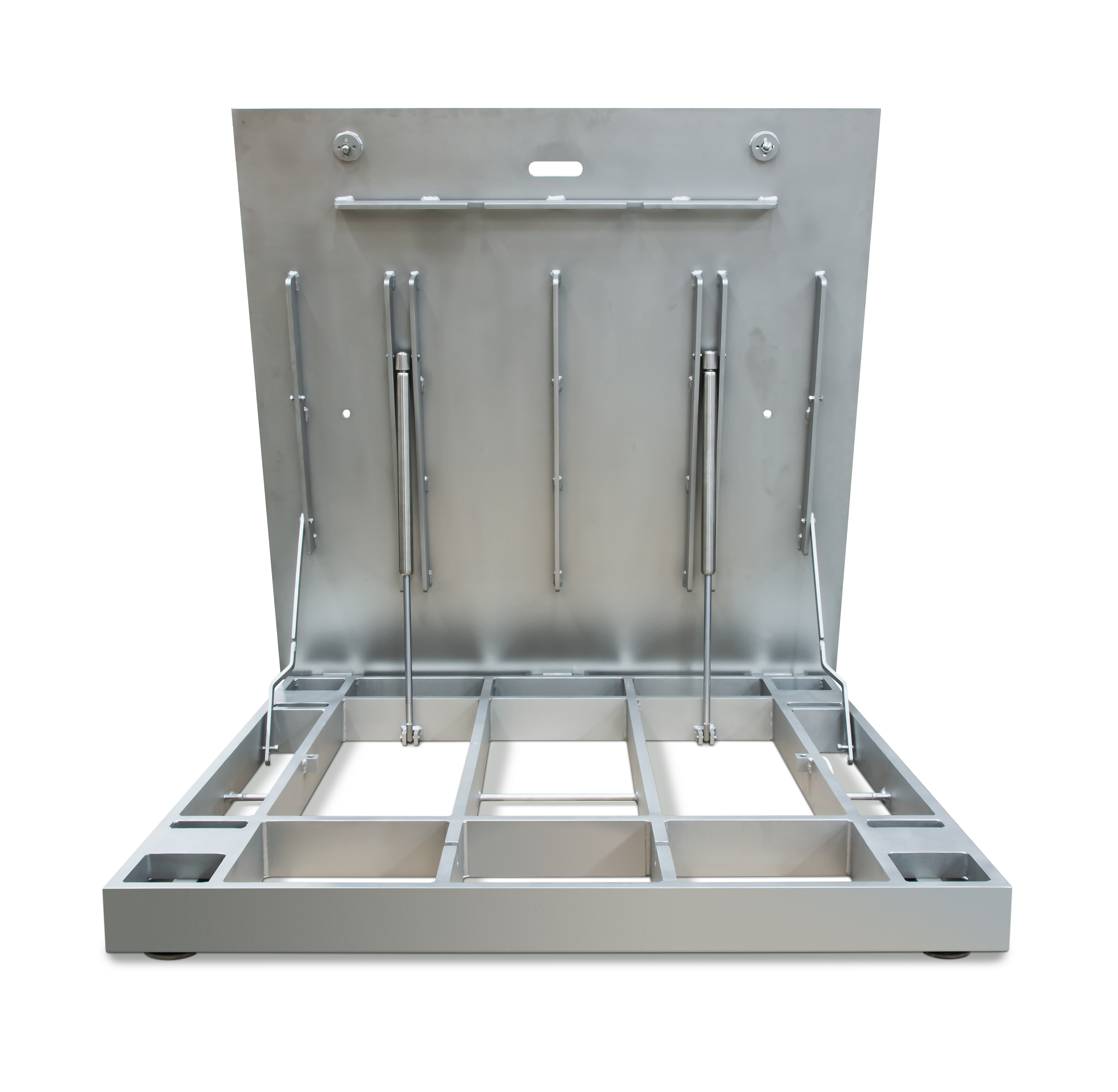

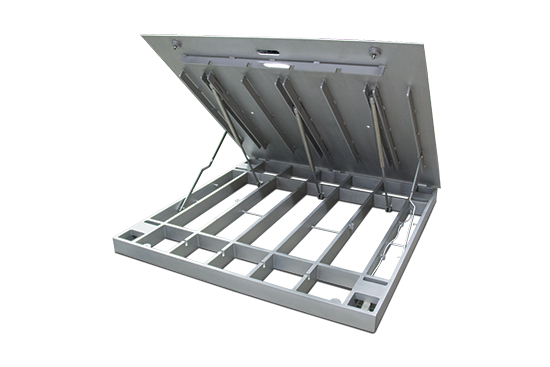

The top plate opens 75 degrees, allowing the entire scale interior to be washed and inspected.

Extreme Strength

An allover 304 stainless steel construction provides rugged strength in the toughest food, pharmaceutical or chemical environments. A choice of a smooth top plate deck or a diamond treadplate deck (for extra traction) allows further application accommodation.

End Load Capacity:
100% full scale at 5,000 lb
80% full scale at 10,000 lb

Warranty (limited):
Weldment five-years, load cells two-years, all other components one-year

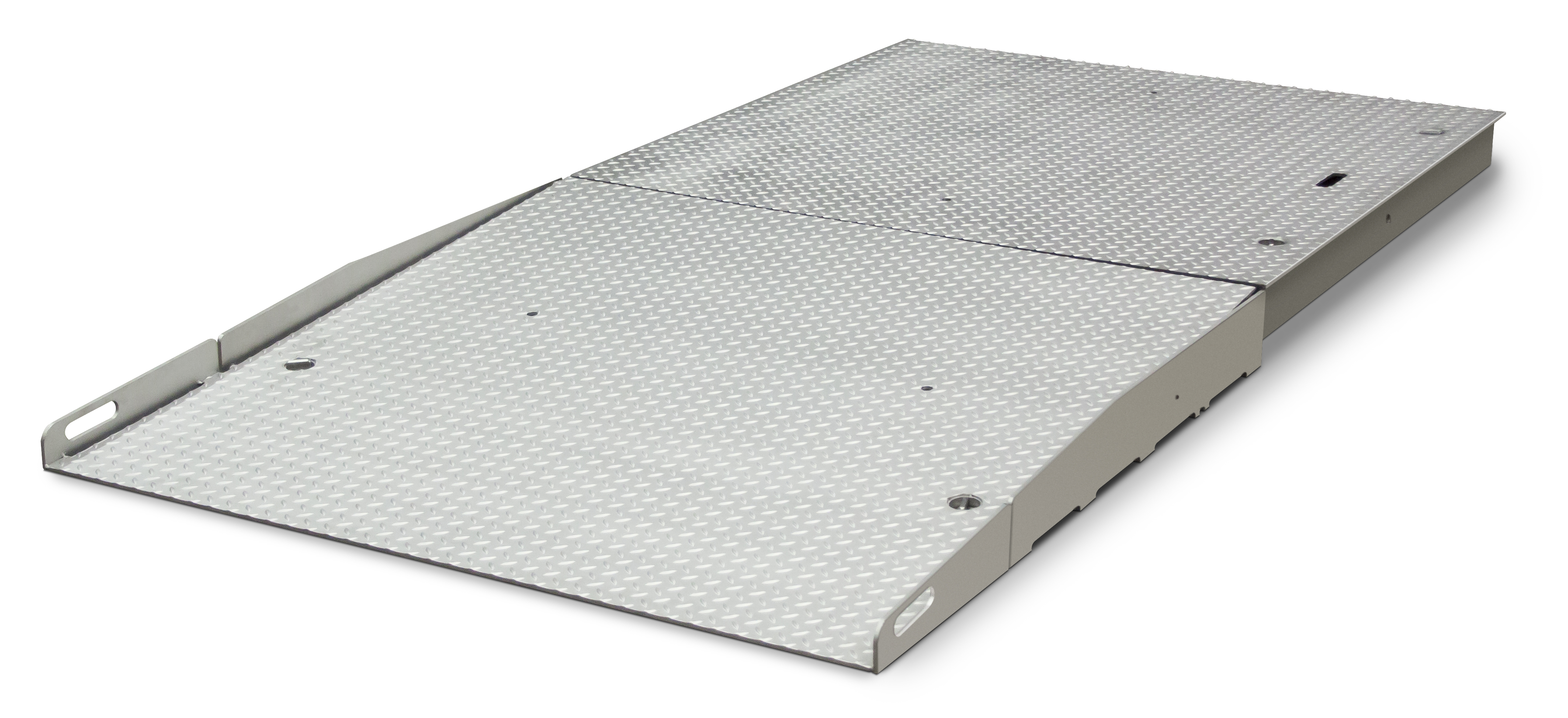

Ramps (Diamond Treadplate)
Part # Ramp Size Ramp Angle of Incline
175692 4 ft x 3 ft x 4.625 in, fits hinge/handhole side 7.0°
175693 4 ft x 4 ft x 4.625 in, fits hinge/handhole side 5.2°
175699 5 ft x 3 ft x 4.625 in, fits hinge/handhole side 7.0°
175700 5 ft x 4 ft x 4.625 in, fits hinge/handhole side 5.2°
178840 4 ft x 3 ft x 4.625 in, fits side of scale 7.0°
178849 4 ft x 4 ft x 4.625 in, fits side of scale 5.2°
178850 5 ft x 3 ft x 4.625 in, fits side of scale 7.0°
178851 5 ft x 4 ft x 4.625 in, fits side of scale 5.2°

Resources / Downloads

Title View Email Category Type
Extreme Clean: Meeting Meat's Cleanliness Standards View Email Floor Scales Application Story
Getting to the Point of Point Loading Email Articles
The Food Safety Modernization Act and the Role of Scales in Food Processing View Email Articles
Weighing Meat from Farm to Table View Email Agriculture Application Story
What are IP Ratings? Email Checkweighers|Indicators / Controllers|Load Cells|Platform Scales|Precision Balances|Retail Equipment|Wrappers|Weigh Modules Articles

Title Download Email
RoughDeck QC-X Catalog Page Download Email
RoughDeck QC-X Pit Frame Concrete Details Catalog Page Download Email

Title Version Revision Download Email Category Archived
RoughDeck QC-X Floor Scale Installation Manual A Download Email Platform Scales|Floor Scales No

Title Download Email
RoughDeck QC-X Replacement Parts Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
RoughDeck QC-X Floor Scale Request Download Email Floor Scales
Washdown Solutions Request Download Email Washdown Scales

Title View Download Email Category
RoughDeck QC-X Quick Clean Washdown Floor Scale View Download Email Floor Scales|Washdown Scales
RoughDeck® QC-X Washdown Floor Scale Overview View Download Email Floor Scales|Washdown Scales

Title Download Email Category
The Food Safety Modernization Act: Sanitary Design Principles and the Role of Scales in Food Processing Download Email Washdown Scales

Parts

Diamond Tread Top Plate

Part # Description List Price Cart
175688 Scale,Roughdeck QC-X 4x4HPQC-X-5K 4ftx4ftx4-5/8 5000lb 30ft Cable Diamond Top Plate

List Price: $13,775.00

175690 Scale,Roughdeck QC-X 4x4HPQC-X-10K 4ftx4ftx4-5/8 10,000lb 30ft Cable Diamond Top Plate

List Price: $13,755.00

175696 Scale,Roughdeck QC-X 5x5HPQC-X-5K 5ftx5ftx4-5/8 5000lb 30ft Cable Diamond Top Plate

List Price: $19,170.00

175697 Scale,Roughdeck QC-X 5x5HPQC-X-10K 5ftx5ftx4-5/8 10,000lb 30ft Cable Diamond Top Plate

List Price: $19,170.00

Smooth Top Plate

Options

Part # Description List Price Cart
28740 Floor Stand,Indicator SST (36.3in) For 120/120 Plus, 882IS/882IS Plus, 882IS/882IS Plus w/battery, 880/880 Plus, 480/480 Plus, 482/482 Plus, 680 Synergy

List Price: $340.00

18778 Mounting Plate Set, Roughdeck 1,000-10,000 lb SST

List Price: $50.00

Pit Frames (WxL)

Ramps (Diamond Tread plate Standard)

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
