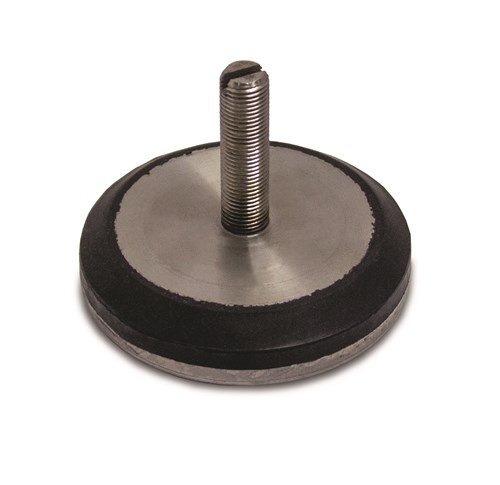

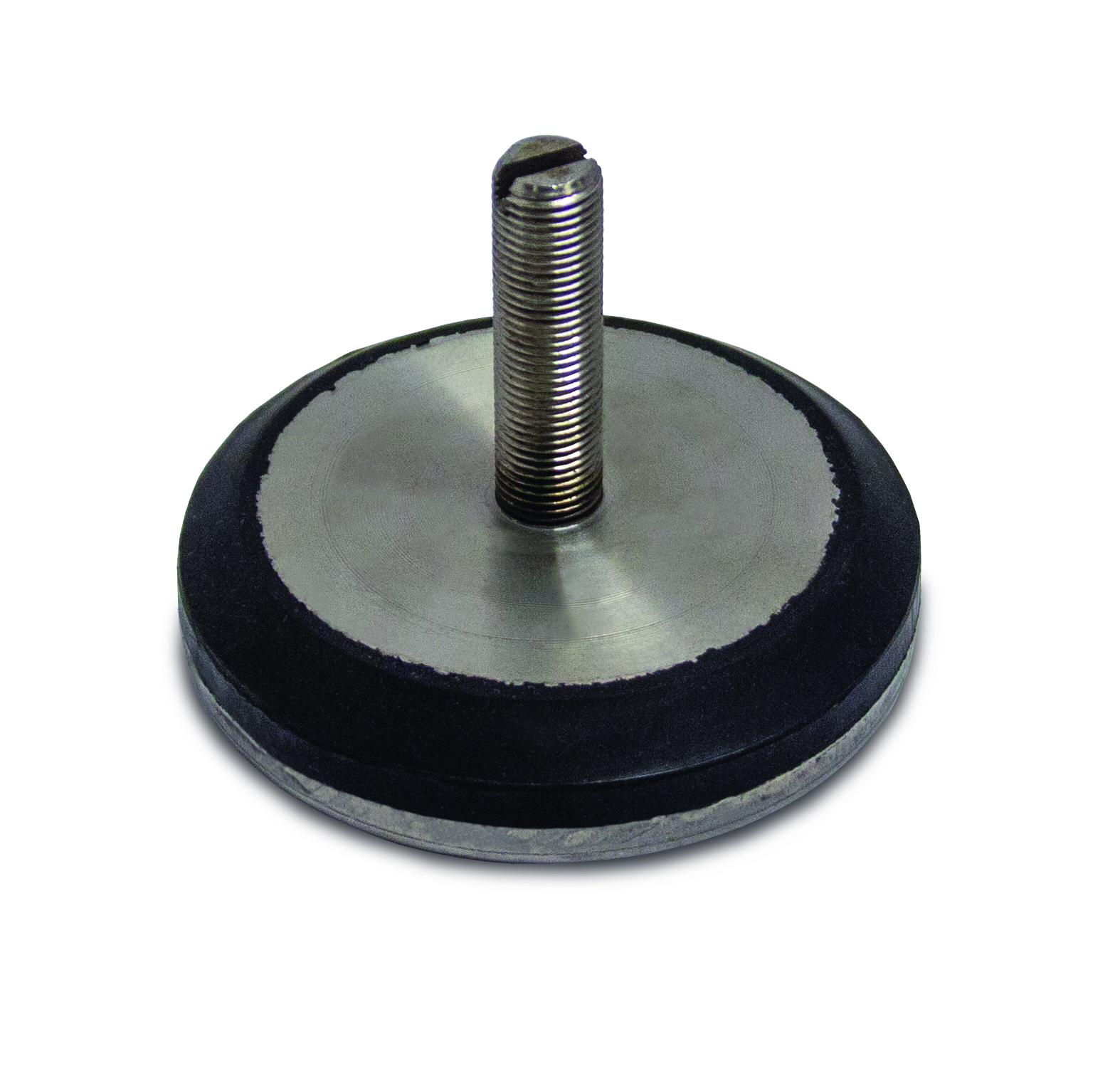

Surefoot™

  • Replacement foot, adapts to most floor scales
  • Use with single-ended beams to provide large, flat, adjustable introduction surface
  • Special neoprene rubber sandwich base gives high accuracy, linearity and repeatability



Part # Material Thread Size Base Ht. Total Ht. Diameter
18756 Stainless steel 1/2-20 UNF 0.75 in 2.62 in 3.47 in
39021 Mild steel 3/4-16 UNF-2B 0.875 in 3.25 in 4.40 in
39022 Mild steel 3/4-16 UNF-2B 0.875 in 4.06 in 5.40 in
110930 Mild steel 1-14 UNF 1.0 in 4.06 in 5.40 in
42130 Stainless steel M12   2.62 in

3.47 in





Resources / Downloads

Title Download Email
Surefoot Catalog Page Download Email

Parts

Part # Description List Price Cart
18756 Foot,Floor Scale SUREFOOT 1/2-20NFx3.47DIAx2.62 SST/Neoprene

List Price: $50.00

39021 Foot ASSY,20k Floor Scale

List Price: $93.00

39022 Foot ASSY,30k Floor Scale

List Price: $135.00

110930 Foot Assy, Mild Steel 1-14 UNF, 5.40in diameter

List Price: $235.00

42130 Foot,Floor Scale SUREFOOT M12x3.47 Dia x 2.62 SST/Neoprene

List Price: $103.00

Options

No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
