Complete Kit Includes

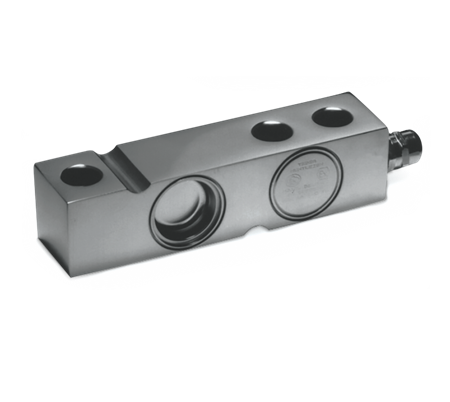

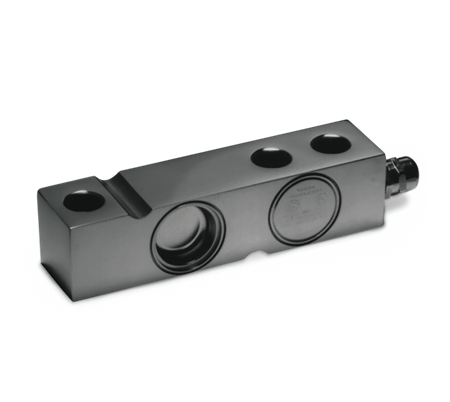

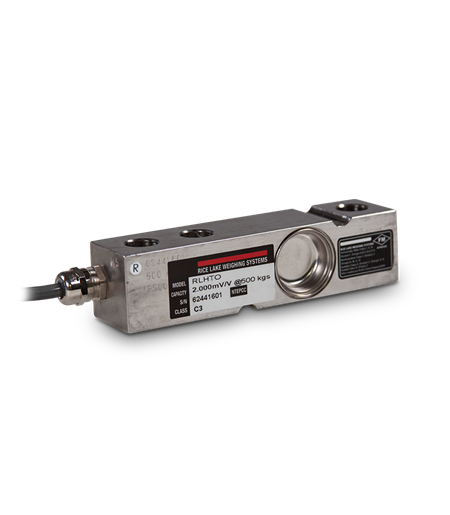

Three or four RL1700 HE stainless steel compression mounts with NTEP Certified RL9018SS (5 to 250 kg) or RLHTO (500 to 5,000 kg) stainless steel, hermetically sealed, single-ended beam load cells
One JB4SS NEMA Type 4X stainless steel signal-trim junction box
25 ft of hostile environment EL147HE SURVIVOR load cell cable
Standard Features
Capacities (per module): 5 to 5,000 kg
All stainless steel, weldless construction retains less residue and allows fast, thorough cleaning
Bolt-in-place design; module bolts directly to tank leg without requiring additional load buttons or mounting plates
Self-checking with lift-off/tip-over protection and jacking/shipping bolts
Load cell is isolated from overload in all directions
Applications
Multi-ingredient micro-batching
Meat and poultry processing
Batching/blending
Dye/ink blending
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
The SURVIVOR RL1700 HE weigh module offers precision-machined, weldless construction to maximize pressure washdown cleaning effectiveness. This design, coupled with integral jacking/shipping bolts, eases installation and minimizes maintenance costs. OIML C3-certified load cells in capacities from 5 kg to 5,000 kg provide accurate, consistent weighments. Ideal for multi-ingredient micro-batching applications, the RL1700 HE weigh module provides exceptional performance in hostile environments. The unique design of the RL1700 HE weigh module isolates the load cell from side loads and overloads, minimizing load cell mechanical damage and eliminating the need for extraneous hardware. The RL1700 HE weigh module offers a guaranteed waterproof rating to ensure reliable performance in moisture-laden environments.
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 32687 | Mount ASSY,RL1700HE-5kg SST Compression Incl RL9018SS-5kg | List Price: $1,000.00 | |
| 32688 | Mount ASSY,RL1700HE-10kg SST Compression Incl RL9018SS-10kg | List Price: $1,000.00 | |
| 32689 | Mount ASSY,RL1700HE-20kg SST Compression Incl RL9018SS-20kg | List Price: $1,000.00 | |
| 32690 | Mount ASSY,RL1700HE-50kg SST Compression Incl RL9018SS-50kg | List Price: $1,000.00 | |
| 32691 | Mount ASSY,RL1700HE-100kg SST Compression Incl RL9018SS-100kg | List Price: $1,000.00 | |
| 32692 | Mount ASSY,RL1700HE-200kg SST Compresssion Incl RL9018SS-200kg | List Price: $1,000.00 | |
| 32693 | Mount ASSY,RL1700HE-250kg SST Compression Incl RL9018SS-250kg | List Price: $1,000.00 | |
| 32974 | Mount ASSY,1710HE 500kg SST HS Compression Incl RLHTO-C3-500kg | List Price: $1,225.00 | |
| 32973 | Mount ASSY,1710HE 1000kg SST HS Compression Incl RLHTO-C3-1t | List Price: $1,225.00 | |
| 32972 | Mount ASSY,1710HE 2000kg SST HS Compression Incl RLHTO-C3-2t | List Price: $1,225.00 | |
| 32971 | Mount ASSY,1700HE 5000kg SST Compression Incl RLHTO-C3-5t | List Price: $1,495.00 |
Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.
To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
