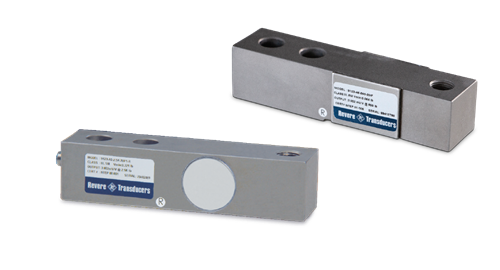

Single-ended stainless steel beam designed for low-profile scales and process weighing in both Legal for Trade and non-Legal for Trade applications. Capacities range from 250 to 20,000 lb. Complete with 20 ft of load cell cable.
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 69383 | Load Cell,SEB 9123-A5- 2.5k 2500lb 20ft RTI 3mV/V 350 OHM WW NTEP III 5 M FM IP67 SST | List Price: $315.00 | |
| 69384 | Load Cell,SEB 9123-A5-4k 4,000lb 20ft RTI 3mV/V 350 OHM WW NTEP III 5 M FM IP67 SST | List Price: $315.00 | |
| 69385 | Load Cell,SEB 9123-A5- 5kSE 5,000lb 20ft RTI 3mV/V 350 OHM WW NTEP III 5 M FM IP67 SST | List Price: $315.00 | |
| 69386 | Load Cell,SEB 9123-A5-5K 5,000lb 20ft RTI 3mV/V 350 OHM WW NTEP III 5M FM IP67 SST | List Price: $410.00 | |
| 69387 | Load Cell,SEB 9123-A5-10K 10,000lb 20ft RTI 3mV/V 350 OHM WW NTEP III 5M FM IP67 SST | List Price: $410.00 | |
| 69388 | Load Cell,SEB 9123-A5-15K 15,000lb 20ft RTI 3mV/V 350 OHM WW NTEP III 5M FM IP67 SST | List Price: $695.00 | |
| 69389 | Load Cell,SEB 9123-A5-20K 20,000lb 20ft RTI 3mV/V 350 OHM WW NTEP III 5M FM IP67 SST | List Price: $695.00 |
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 31534 | Adapter,Conduit SST 1/4-18 NPT 3/8-24UNF-ZA | List Price: $40.00 |
The Rice Lake RL32018S Stainless Steel, Single-Ended Beam stainless steel load cell is available in capacities from 250 to 20,000 pounds. Sealed to IP66 standards, each cell includes 20 feet of cable and is FM approved. NTEP approved from 1,000 to 10,000 pounds.
