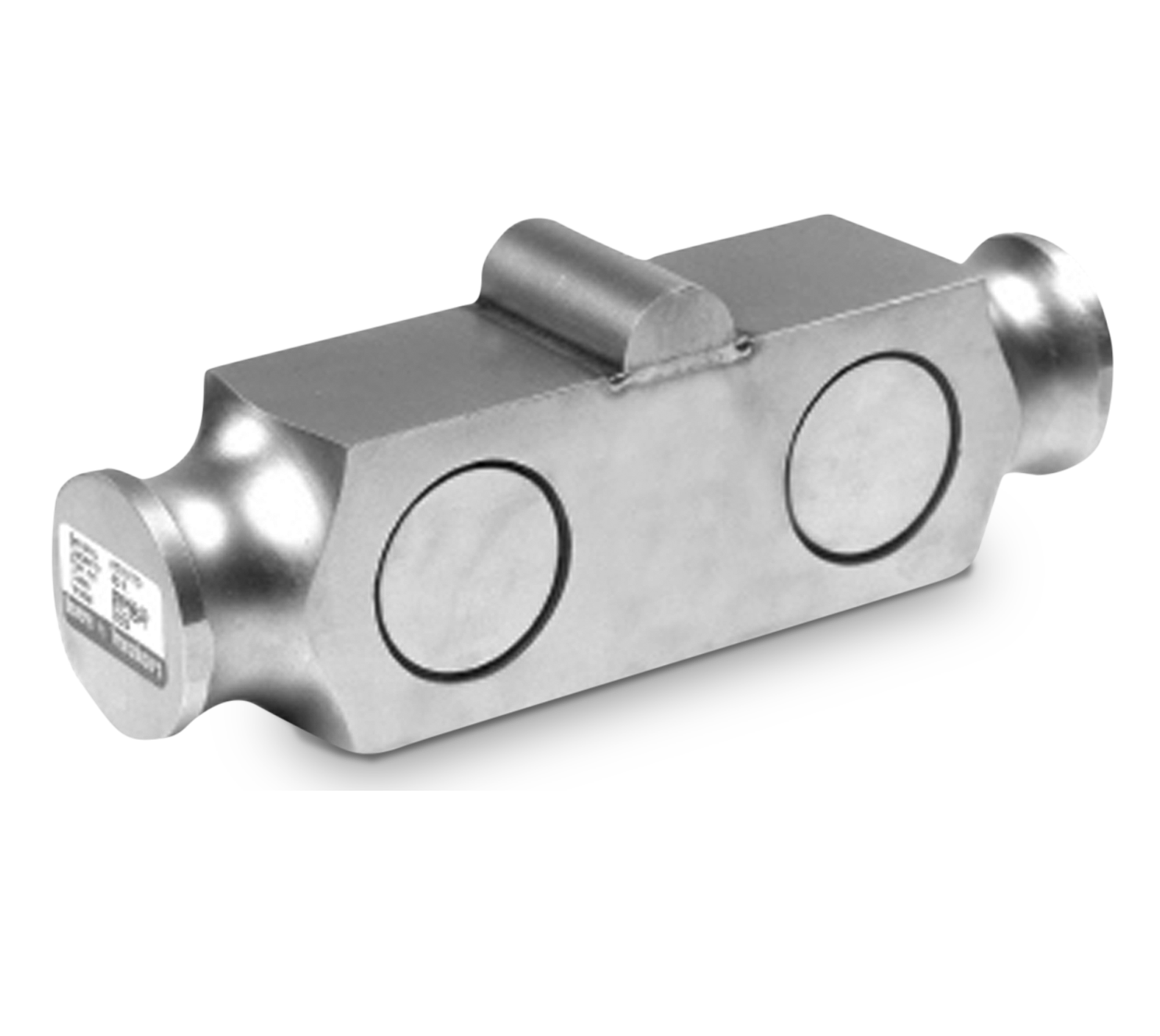

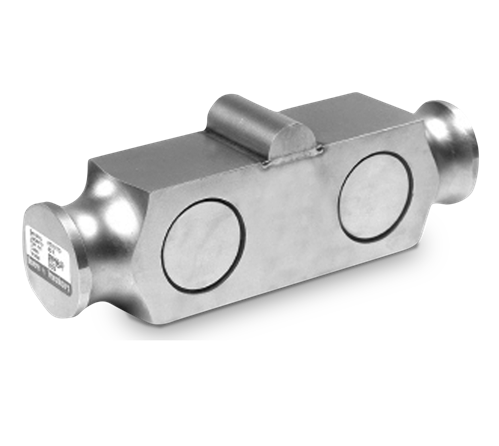

VPG Revere 9323 Stainless Steel, Double-Ended Beam Load Cell

Very high performance end-loaded, center-supported double-ended beam designed for low-profile track and truck scales in harsh environments. Parallel link loading provides free movement in all horizontal directions with virtually no friction. Available in 50,000 lb and 60,000 lb with 30 ft of load cell cable.


Some approval documents are available to view by clicking the icons below.


WARNING: Cancer and Reproductive Harm California Proposition 65

Full Scale Output:
3.0 mV/V

Output Resistance:
700 (± 7) ohm

Input Resistance:
700 (± 7) ohm

Stainless steel

Compensated range
14 °F to 104 °F (-10 °C to 40 °C)
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

0.01% full scale

Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
30 ft

Cable Diameter:
0.295 in polyurethane jacket

Cable Color Code:
Red –Excitation
Black –Excitation
Green +Signal
White –Signal

One-year limited

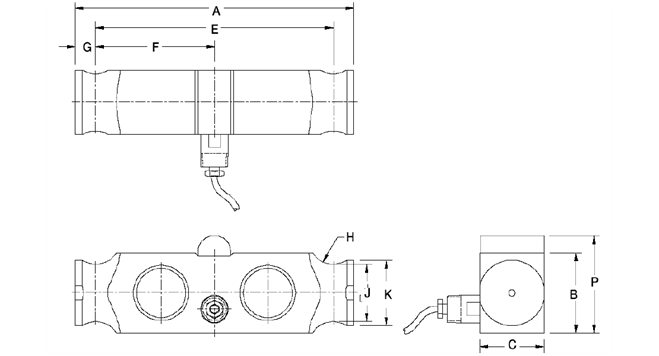

Rated Capacity A B C E F G H J K P
50,000 to 60,000 8.50 2.45 1.95 7.25 3.63 0.63 0.75 1.75 2.00 3.00



Resources / Downloads

Title Download Email
Revere 9323 Load Cell Catalog Page Download Email

Title Version Revision Download Email Category Archived
Load Cell and Weigh Module Handbook B Download Email Load Cells|Weigh Modules No

Title Collateral Wizard Request Download Email Category
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells


Part # Description List Price Cart
84156 Load Cell, DEB 9323-B10- 50k 50000lb 30ft RTI 3mv/v 700 Ohm WW NTEP IIIL 10 M FM SST

List Price: $885.00

84157 Load Cell,DEB 9323-B10- 60k 60000lb 30ft RTI 3mv/v 700 Ohm WW NTEP IIIL 10 M FM SST

List Price: $885.00
