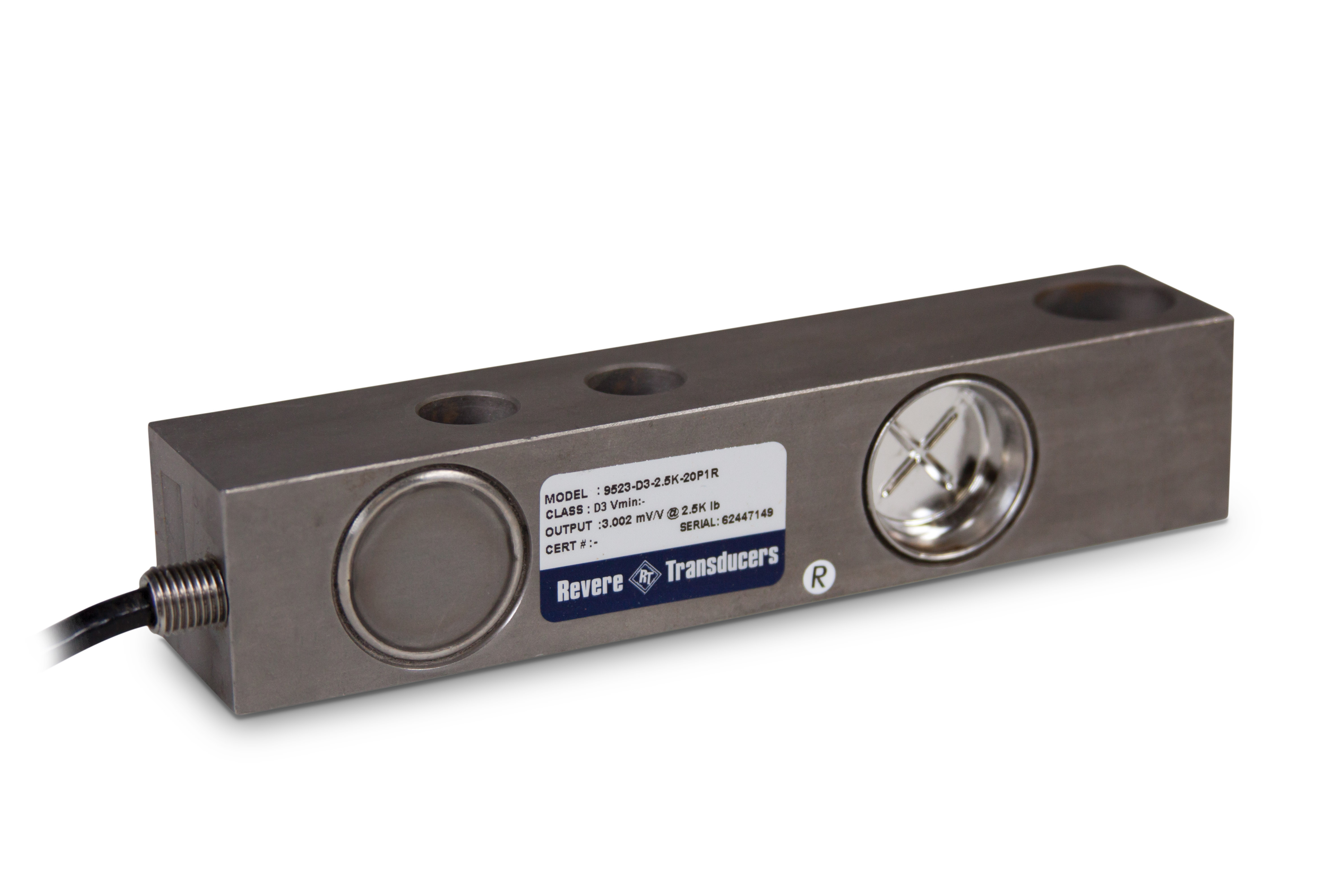

VPG® Revere 9523 Stainless Steel, Single-ended Beam Load Cell

Single-ended beam offers both welded sealing and stainless steel construction for use in most hostile environments. Applications include platform scales and process weighing. Capacities range from 1,000 lb to 10,000 lb.

Approvals

Some approval documents are available to view by clicking the icons below.

LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65

Full Scale Output:
3.0 mV/V

Output Resistance:
350 (± 3.5) ohm

Input Resistance:
350 (± 3.5) ohm

Material/Finish:
Stainless steel

Temperature:
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Welded-seal, IP67

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Non-repeatability:
0.01% full scale

Combined Error:
0.03% full scale

Insulation Resistance:
5,000 megohm

Deflection at Capacity:
1,000 lb: 0.016 in
2,500 lb: 0.03 in
4,000 lb: 0.041 in
5,000 lb: 0.035 in
10,000 lb: 0.042 in

Cable Length:
20 ft

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
One-year limited

Approvals:
cFMus

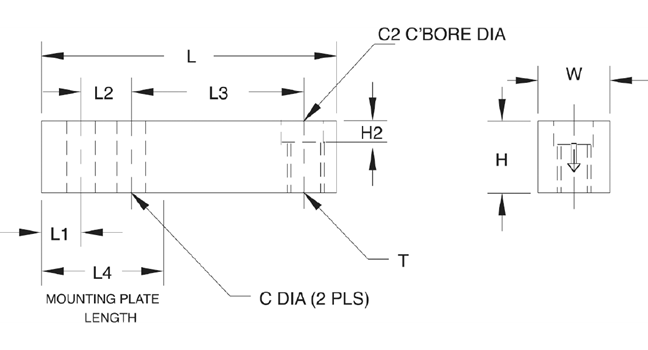

Rated Capacity C C2 H H2 L L1 L2 L3 L4 T W
lb/in
1,000 to 4,000 0.53 0.81 1.25 0.56 6.12 1.62 1.00 3.00 3.38 1/2-20 UNF 1.25
5,000 to 10,000 0.78 1.19 1.50 0.59 7.71 1.71 1.50 3.75 4.08 3/4-16 UNF 1.50





Resources / Downloads

Title Download Email
Revere 9523 Load Cell Catalog Page Download Email

Title Version Revision Download Email Category Archived
Load Cell and Weigh Module Handbook D Download Email Load Cells|Weigh Modules No

Title Collateral Wizard Request Download Email Category
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells

Parts

Part # Description List Price Cart
17221 Load Cell,SEB 9523-D3-1K- 20P1 1000lb 20ft 3mv/v 350 Ohm FM WW IP67 SST WS RTI

List Price: $577.00

17222 Load Cell,SEB 9523-D3- 2.5K-20P1 2500lb 20ft 3mv/v 350 Ohm FM WW IP67 SST WS RTI

List Price: $577.00

17223 Load Cell,SEB 9523-D3-4K- 20P1 4000lb 20ft 3mv/v 350 Ohm FM WW IP67 SST WS RTI

List Price: $577.00

17224 Load Cell,SEB 9523-D3-5K- 20P1 5000lb 20ft 3mv/v 350 Ohm FM WW IP67 SST WS RTI

List Price: $636.00

17225 Load Cell,SEB 9523-D3-10K -20P1 10,000lb 20ft 3mv/v 350 Ohm FM WW IP67 SST WS RTI

List Price: $662.00
