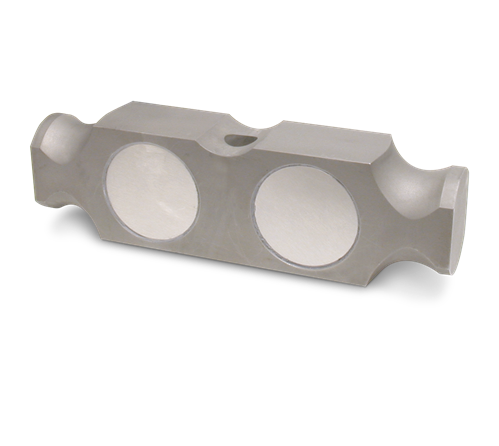

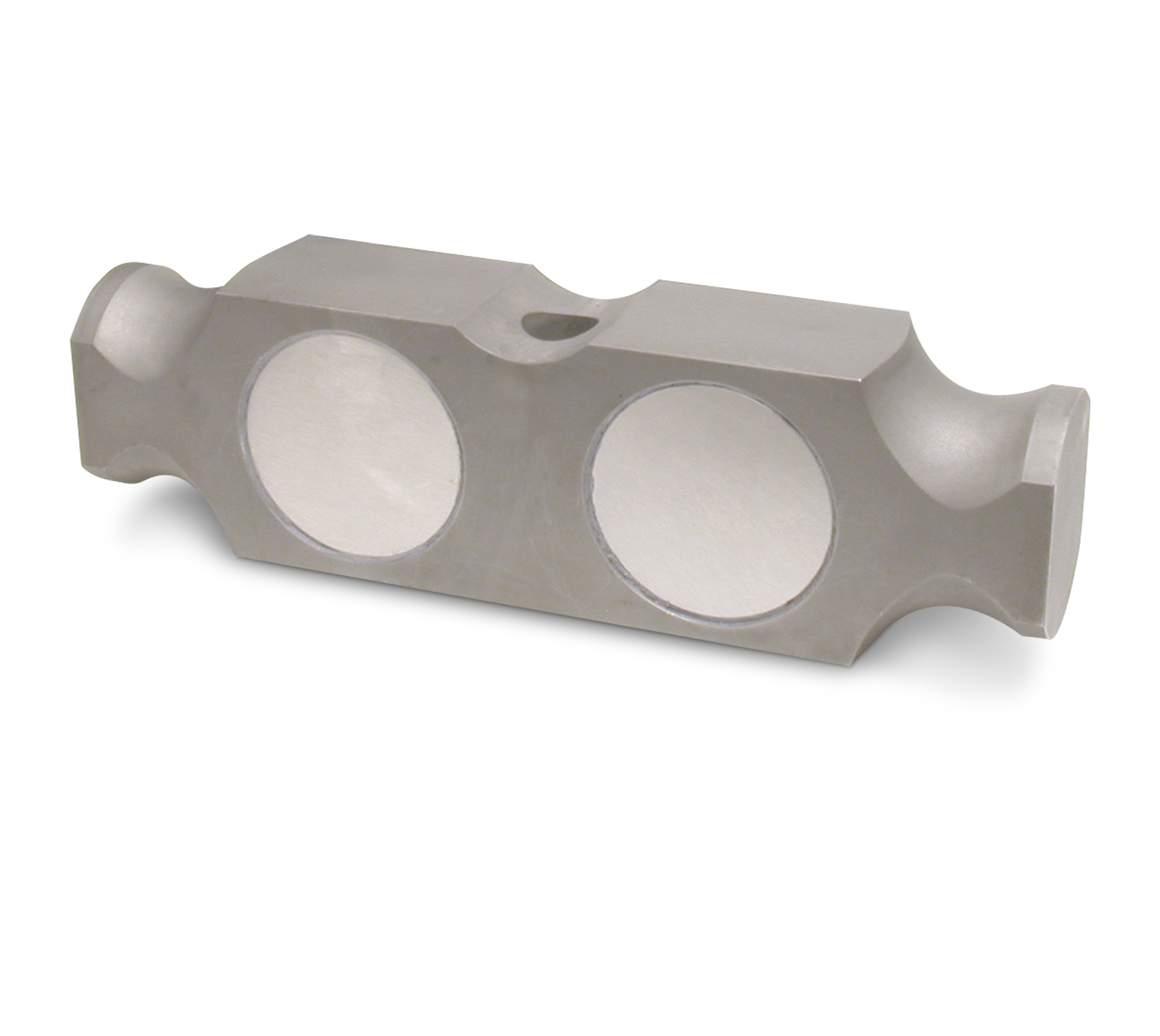

VPG Revere 9803 Stainless Steel, Double-Ended Beam Load Cell

This center loaded double-ended beam features full stainless steel construction. Ideal for both truck scale and process weighing applications. Available in 50,000 lb to 100,000 lb capacities. Each unit is provided with standard 30 ft of load cell cable.


Some approval documents are available to view by clicking the icons below.


WARNING: Cancer and Reproductive Harm California Proposition 65

Full Scale Output:
3.0 mV/V

Output Resistance:
700 (± 3.5) ohm

Input Resistance:
700 (± 3.5) ohm

Stainless steel

Compensated range
14 °F to 104 °F (-10 °C to 40 °C)
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

0.01% full scale

Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
30 ft

Cable Diameter:
0.295 in
Polyurethane jacket

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

One-year limited

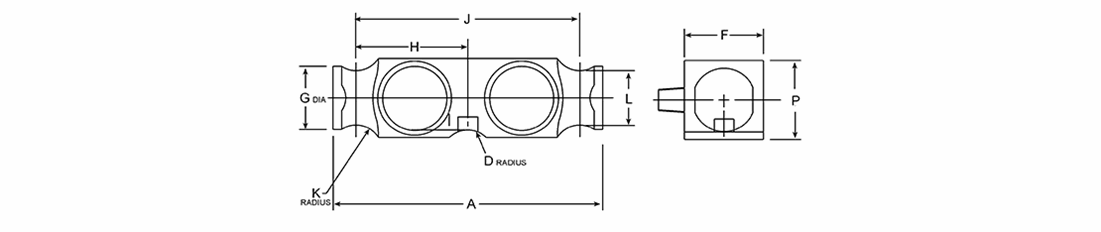

Rated Capacity A D F G H J K L P
50,000 to 100,000 10.25 1.00 1.94 2.40 4.25 8.50 1.00 2.06 2.94



Resources / Downloads

Title Download Email
Revere 9803 Load Cell Catalog Page Download Email

Title Version Revision Download Email Category Archived
Load Cell and Weigh Module Handbook B Download Email Load Cells|Weigh Modules No

Title Collateral Wizard Request Download Email Category
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells


Part # Description List Price Cart
69489 Load Cell,DEB 9803-B10- 50K-30P1 50,000lb 30ft 3mv/v 700 Ohm NTEP IIIL 10M WW SST RTI

List Price: $1,000.00

69490 Load Cell,DEB 9803-B10- 65K-30P1 65,000lb 30ft 3mV/V 700 Ohm NTEP IIIL 10M WW SST RTI

List Price: $1,000.00

124390 Load Cell,DEB 9803-B10- 100k-30P1 100,000lb 30ft 3mv/v 700 Ohm NTEP IIIL 10M FM WW SST RTI

List Price: $1,000.00
