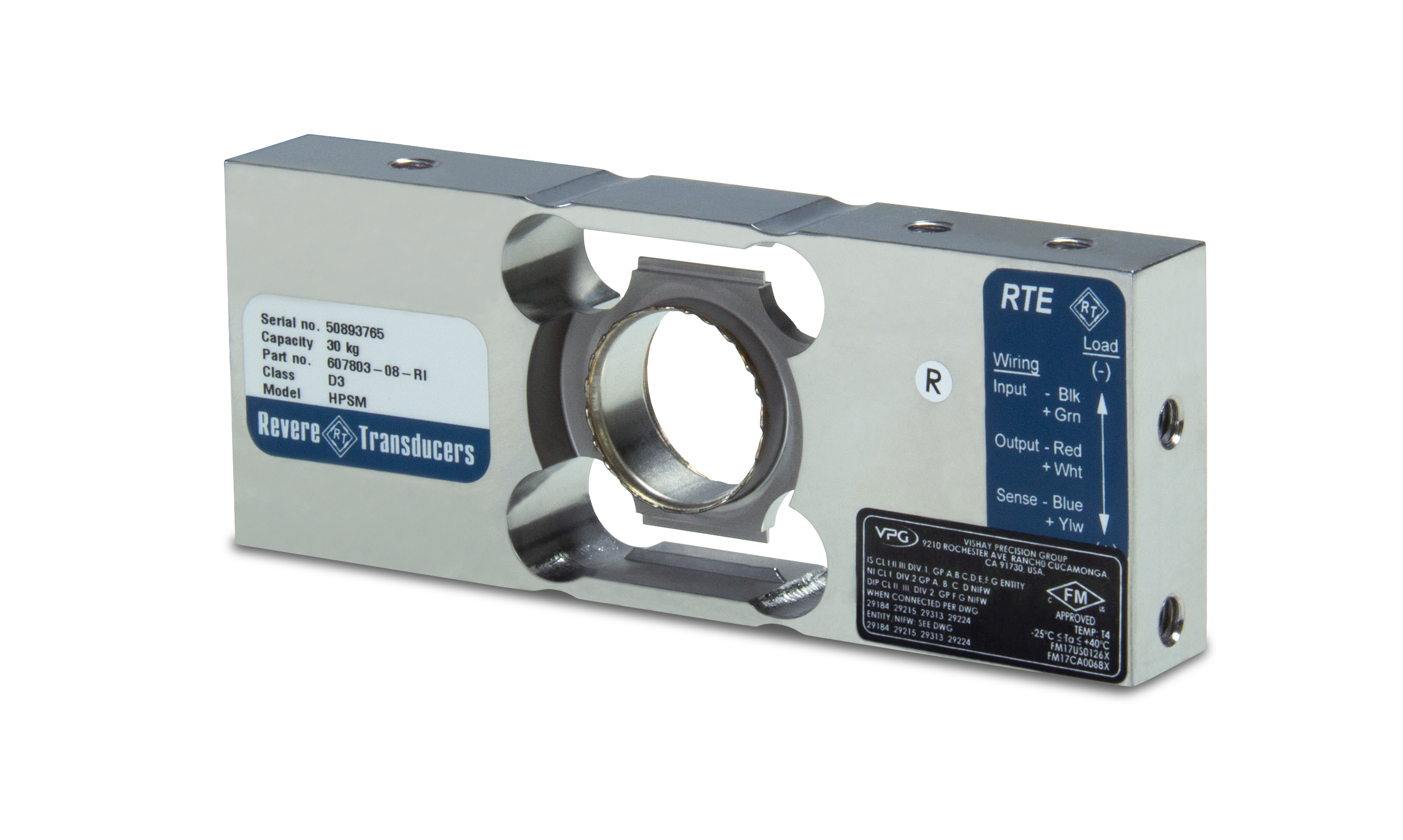

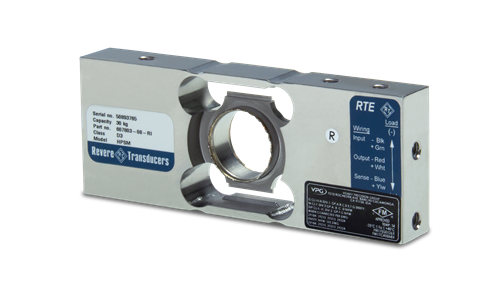

VPG Revere HPSM Stainless Steel, Single Point Load Cell

Low-profile single-point load cell with metric envelope designed for bench scale and checkweigher applications in caustic/acidic environments. Insensitive to off-center loading. Tolerates most severe washdowns. Capacities range from 6 kg to 30 kg. Includes 20 ft of load cell cable.


Some approval documents are available to view by clicking the icons below.


WARNING: Cancer and Reproductive Harm California Proposition 65

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (± 3.5) ohm

Input Resistance:
350 (± 3.5) ohm

Stainless steel

Operating range
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Welded-seal, IP67

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.03% full scale

0.01% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
20 ft

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal

One-year limited


Rated Capacity A B C D E F F1 F2 G H J K M N
6 to 30 130 117 98 23 14 33 19 75 108 25 50 19 44 20



Resources / Downloads

Title Download Email
Revere HPSM Load Cell Catalog Page Download Email

Title Version Revision Download Email Category Archived
Load Cell and Weigh Module Handbook B Download Email Load Cells|Weigh Modules No

Title Collateral Wizard Request Download Email Category
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells


Part # Description List Price Cart
22334 Load Cell,SPT HPSM-D3-6KG -20P9 6kg 20ft 2mv/v 350 Ohm EW IP67 Metric SST WS RTI

List Price: $652.00

109131 Load Cell, SPT HPSM-D3- 12KG-20P9 12kg 20ft 2mv/v 350 Ohm FM EW IP67 Metric SST WS RTI

List Price: $652.00

115336 Load Cell,SPT HPSM-D3- 30KG-20P9 30kg 20ft RTI 2mv/v 350 Ohm Metric EW WS SST FM IP67

List Price: $736.00
