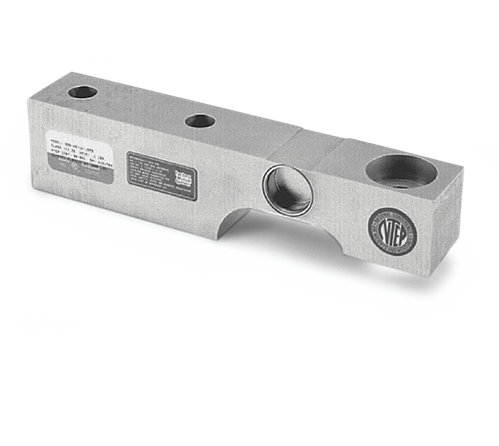

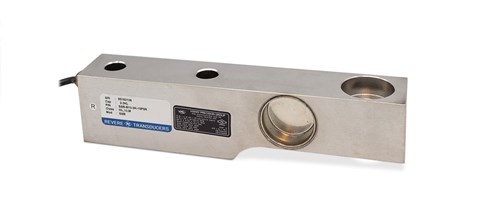

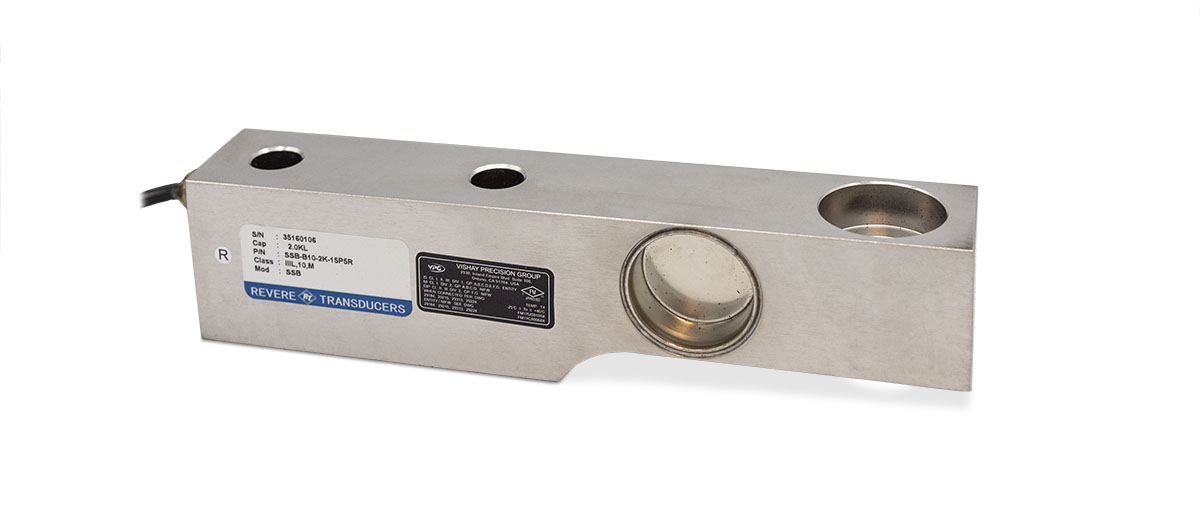

VPG® Revere SSB, Stainless Steel, Single-ended Beam Load Cell

Rugged and precise, this single-ended beam offers welded seal protection and stainless steel construction. Designed for use in the most hostile environments. Applications include platform scales, materials testing and process weighing. NTEP Certified capacities range from 1,000 lb to 10,000 lb.

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (± 3.5) ohm

Input Resistance:
350 (± 3.5) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated:
14 °F to 104 °F (-10 °C to 40 °C)
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Welded-seal, IP67

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.02% full scale

Non-repeatability:
0.01% full scale

Insulation Resistance:
5,000 megohm

Deflection at Capacity:
0.018 in

Cable Length:
15 ft

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal

Warranty:
One-year limited

Approvals:
cFMus
NTEP

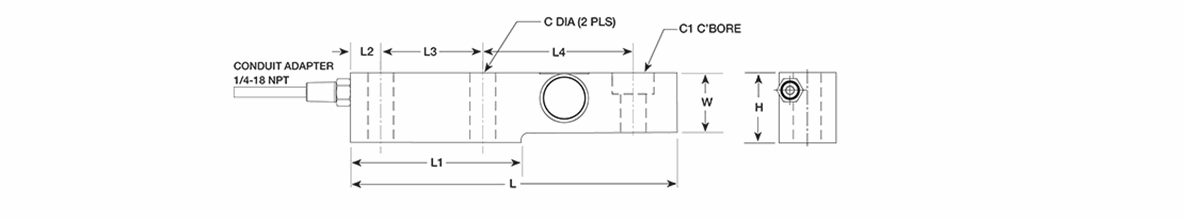

Rated Capacity C W C1 H L L1 L2 L3 L4 CONDUIT ADAPTER
lb/in
1,000 to 5,000 0.53 1.44 1.19 × 0.56 DP 1.88 8.00 4.00 0.75 2.50 3.87 1/4-18NPT
10,000 0.88 1.88 1.63 × 0.62 DP 2.75 9.25 4.62 0.81 2.62 4.87 1/4-18NPT





Resources / Downloads

Title Download Email
Revere SSB Load Cell Catalog Page Download Email

Title Version Revision Download Email Category Archived
Load Cell and Weigh Module Handbook D Download Email Load Cells|Weigh Modules No

Title Collateral Wizard Request Download Email Category
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells

Parts

Part # Description List Price Cart / Quote
21538 Load Cell,SEB SSB-B10-1K- 15P5 1000lb 15ft 2mv/v 350 Ohm NTEP IIIL 10M FM IP67 EW SST WS RTI

List Price: $726.00

21539 Load Cell,SEB SSB-B10-2K- 15P5 2000lb 15ft 2mv/v 350 Ohm NTEP IIIL 10M FM IP67 EW SST WS RTI

List Price: $726.00

21540 Load Cell,SEB SSB-B10-5K- 15P5 5000lb 15ft 2mv/v 350 Ohm NTEP IIIL 10M FM IP67 EW SST WS RTI

List Price: $726.00

21541 Load Cell,SEB SSB-B10-10K 15P5 10,000lb 15ft 2mv/v 350 Ohm NTEP IIIL 10M FM IP67 EW SST WS RTI

List Price: $805.00

Related Products

rl-RLSSB-load-cell

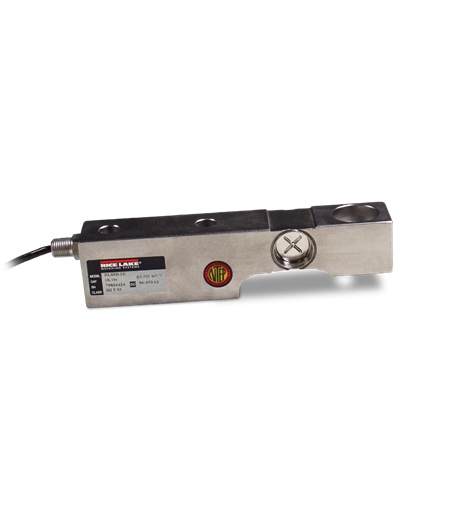

Rice Lake RLSSB Stainless Steel, Single-Ended Beam Load Cell

The Rice Lake RLSSB Stainless Steel, Single-Ended Beam Load Cell offers welded-seal protection for use in the most hostile environments.

Hdimage(1)

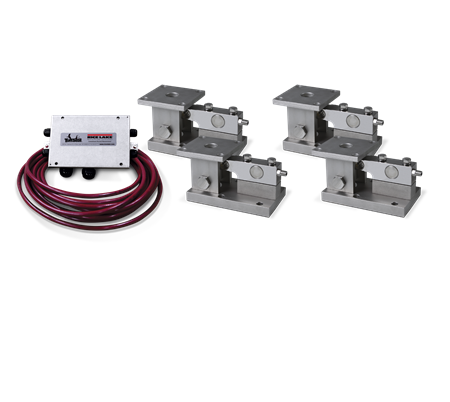

RL1900 Series Steel Weigh Module
