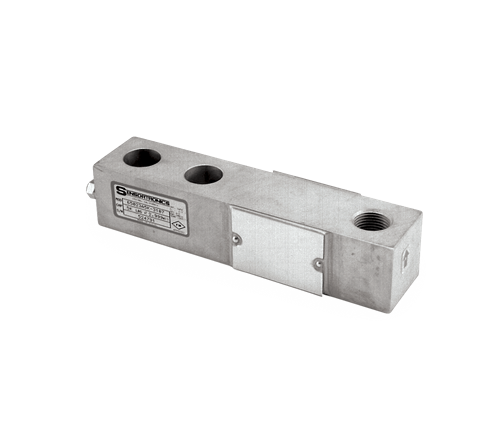

VPG Sensortronics 65023A Alloy Steel, Single-Ended Beam Load Cell

Designed for low-profile floor scales. Environmentally protected with stainless steel side plates. Nickel-plated alloy steel with a threaded loading hole. Capacities from 250 to 20,000 lb.

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65

Full Scale Output:
3.0 mV/V

Output Resistance:
349 to 355 ohm

Input Resistance:
343 to 357 ohm

Material/Finish:
High-alloy steel, nickel plated

Temperature:
Compensated range
14 °F to 104 °F (-10 °C to 40 °C)
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 V DC (15 V maximum)

Nonlinearity:
0.03% full scale

Hysteresis:
0.02% full scale

Insulation Resistance:
5,000 megohm

Deflection at Capacity:
250 to 1,500 lb: 0.013 in
1,000 to 5,000SE lb: 0.017 to 0.025 in
5,000LE to 10,000 lb: 0.025 to 0.035 in
15,000 to 20,000 lb: 0.048 to 0.063 in

Cable Length:
20 ft

Cable Diameter:
0.200 in
Polyurethane jacket

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
One-year limited

Approvals:
cFMus
NTEP

Rated Capacity T L1 C1 W H D C F G
lb/in
250 to 500 1/2-20 UNF 0.62 0.53 1.25 1.00 5.12 1.00 3.00 0.50
1,000 to 5,000 SE 1/2-20 UNF 0.62 0.53 1.25 1.25 5.12 1.00 3.00 0.62
5,000 LE to 10,000 3/4-16 UNF 0.75 0.78 1.50 1.50 6.75 1.50 3.75 0.75
15,000 to 20,000 1-14 UNS 1.00 1.03 2.00 2.00 8.88 2.00 4.88 1.00





Resources / Downloads

Title Download Email
Sensortronics 65023A Load Cell Catalog Page Download Email

Title Version Revision Download Email Category Archived
Load Cell and Weigh Module Handbook B Download Email Load Cells|Weigh Modules No

Title Collateral Wizard Request Download Email Category
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells

Parts

NTEP-Certified

Part # Description List Price Cart
21507 Load Cell,SEB 65023A1K- 5107 1000lb 20ft 3mv/v 350 Ohm NTEP III 5M FM WW IP67 SENSTRS

List Price: $312.00

69832 Load Cell,SEB 65023A1.5K- 5107 1500lb 20ft SENSTR 3mV/V 350OHM WW NTEP III 5 M FM IP67

List Price: $312.00

21508 Load Cell,SEB 65023A2K- 5107 2000lb 20ft 3mv/v 350 Ohm NTEP III 5M FM WW IP67 SENSTRS

List Price: $312.00

21509 Load Cell,SEB 65023A2.5K- 5107 2500lb 20ft 3mv/v 350 Ohm NTEP III 5M FM WW IP67 SENSTRS

List Price: $312.00

21510 Load Cell,SEB 65023A3K- 5107 3000lb 20ft 3mv/v 350 Ohm NTEP III 5M FM WW IP67 SENSTRS

List Price: $312.00

21511 Load Cell,SEB 65023A4K- 5107 4,000 lb 20ft SENSTRS 3mV/V 350 OHM WW NTEP III 5 M FM IP67

List Price: $312.00

102884 Load Cell,SEB 65023A5KSE -5223 5000lb 20ft 3mv/v 350 Ohm NTEP III 5M FM WW IP67

List Price: $312.00

21512 Load Cell,SEB 65023A5K- 5107 5000lb 20ft 3mv/v 350 Ohm NTEP III 5M FM WW IP67 SENSTRS

List Price: $398.00

21513 Load Cell,SEB 65023A10K- 5107 10,000lb 20ft 3mv/v 350 Ohm NTEP III 5M FM WW IP67 SENSTRS

List Price: $398.00

NTEP-Certified 50ft Cable

Non-NTEP Certified

Related Products

WEB SC Celtron SQB

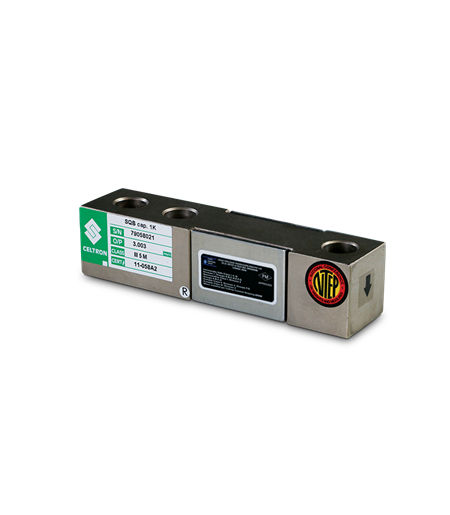

VPG Celtron SQB Alloy Steel, Single-Ended Beam Load Cell
