This NTEP Certified, zinc-plated, alloy steel load cell is sealed with a potting compound that has been a proven solution in numerous applications. Units are available in 40,000- and 50,000-pound capacities and are complete with 60 feet of copper overbraid load cell cable. Units are available upon request in stainless steel with a welded seal and a 50,000-pound capacity.
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 47850 | Load Cell,DEB 65061A40K- 1108 40000lb 60ft 3mV/V 700 Ohm WW NTEP IIIL 10M IP67 | List Price: $1,275.00 | |
| 47851 | Load Cell,DEB 65061A50K- 1108 50000lb 60ft 3mV/V 700 Ohm WW NTEP IIIL 10M IP67 alloy steel | List Price: $1,275.00 | |

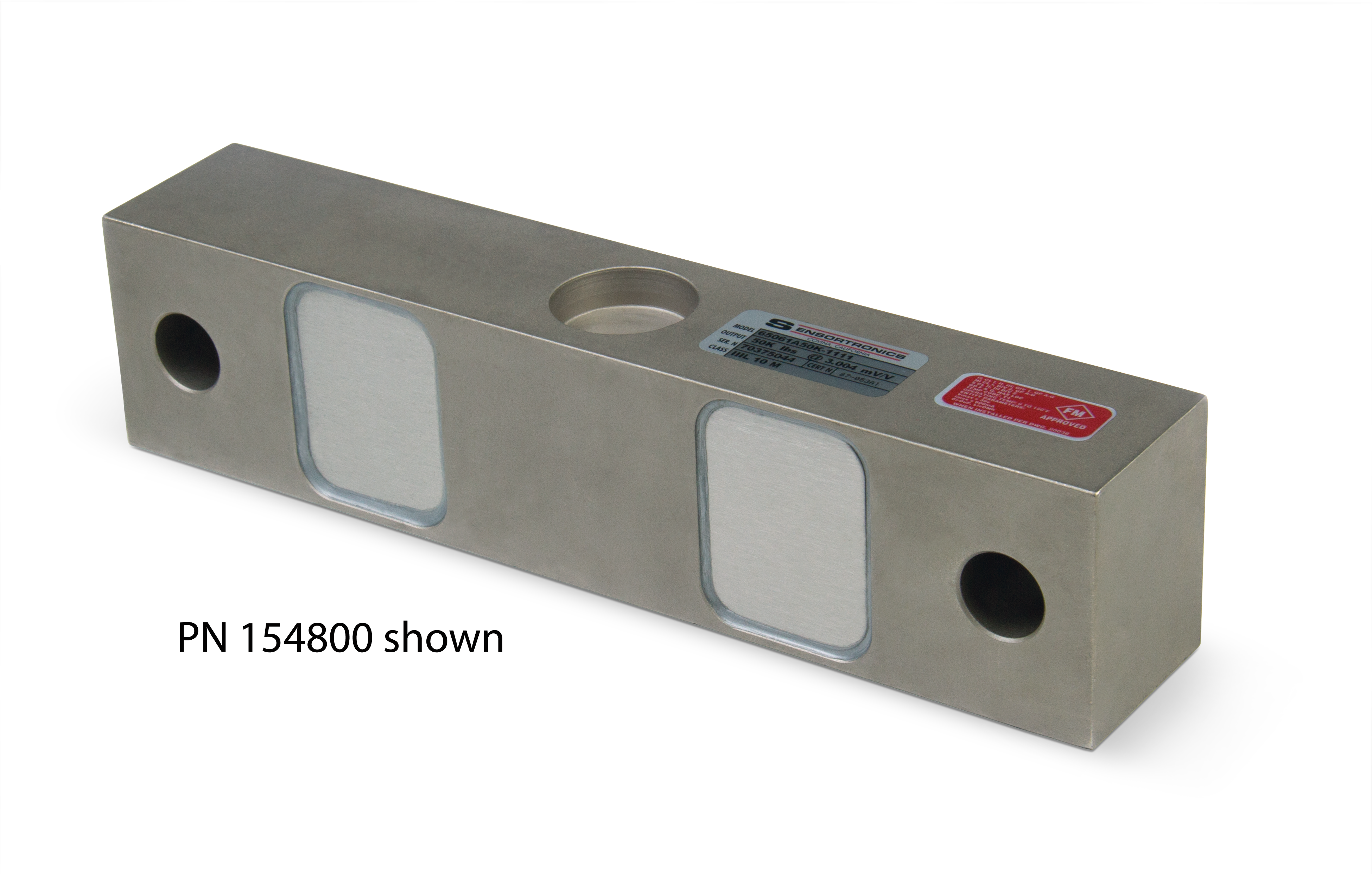

| 154800 | Load Cell, DEB 65061A50k- 1111 50,000lb 60ft 3mv/v 700 Ohm MS NTEP IIIL 10M IP67 | List Price: $1,275.00 |
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 25524 | Load Button ASSY,65061 Load Cell. Not to be used with load cell with counterbore load hole. | List Price: $53.00 | |
| 50807 | Pin,Load Rodan 1-3/4 DIA 1-3/4 DIA x 4-1/16 Long | List Price: $101.00 | |
| 44837 | Bearing Screw 2-12 UNC x 2.35 Long | List Price: $134.00 | |
| 50748 | Bushing,.880ID x .856Long Mild Steel Plated Fairbanks Rodan | List Price: $42.00 | |
| 50767 | Stand,4.62x6.25x15.38 Machined And Painted Fairbanks Rodan Truck Scale | List Price: $337.00 | |
| 50747 | Support Pin,.75DIA x 4.50 Long Fairbanks Rodan | List Price: $37.00 | |
| 15180 | Washer,Plain STD 3/4 SST ID=.812 OD=1.750 Thickness=.109 | List Price: $2.30 | |
| 15244 | Pin,Cotter 5/32x1 Extended Prong Steel Zinc Plated | List Price: $1.50 | |
| 154802 | Load Button, 65061A Rodan Scale with counterbore load hole Stainless Steel | List Price: $45.00 |
