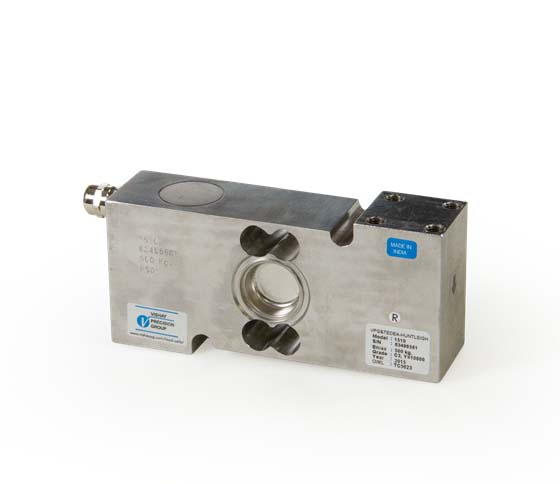

VPG Tedea-Huntleigh 1510 Stainless Steel, Single Point Load Cell

A stainless steel, welded-seal single point load cell ideally suited for washdown applications. Suitable for use with variety of platform and monorail scales in sanitary environments. Capacities range from 100 kg to 500 kg.


Some approval documents are available to view by clicking the icons below.


WARNING: Cancer and Reproductive Harm California Proposition 65

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (± 3) ohm

Input Resistance:
380 (± 10) ohm

Stainless steel

Compensated range
14 °F to 104 °F (-10 °C to 40 °C)
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Welded-seal, IP68

Safe Overload:
150% at center loading point, full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.020% full scale

Insulation Resistance:
2,000 megohm

Cable Length:
10 ft

Cable Diameter:
0.220 in
Polyurethane jacket

Cable Color Code:
Green +Excitation
Black –Excitation
Red +Signal
White –Signal
Blue +Sense
Brown –Sense

Platform Size:
23.62 × 23.62 in

One-year limited

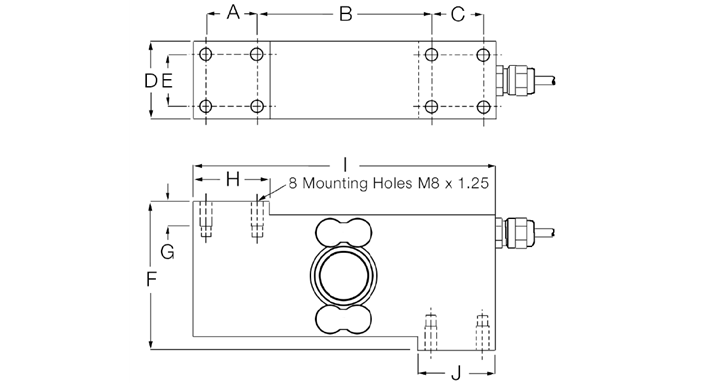

Rated Capacity A B C D E F G H I J
100 to 500 25.4 86.3 25.4 38.1 25.4 72.8 11.9 38.1 149.9 38.1






Resources / Downloads

Title Download Email
Tedea 1510 Load Cell Catalog Page Download Email

Title Version Revision Download Email Category Archived
Load Cell and Weigh Module Handbook B Download Email Load Cells|Weigh Modules No

Title Collateral Wizard Request Download Email Category
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells



Part # Description List Price Cart
65851 Load Cell,SPT 1510-100kg- C3 3M 2mV/V 350 OHM Tedea-Huntleigh SST WS IP68

List Price: $842.00

65852 Load Cell,SPT 1510-250KG- C3 3M 2mV/V 350 OHM Tedea Huntleigh SST WS IP68

List Price: $842.00

65853 Load Cell,SPT 1510-500KG- C3 3M 2mV/V 350 OHM Tedea Huntleigh SST WS IP68

List Price: $842.00

NTEP Certified
