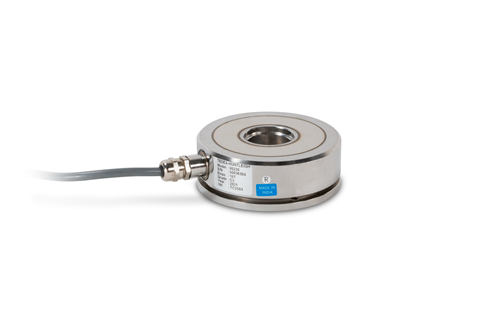

VPG Tedea-Huntleigh 220 Stainless Steel, Compression Disk Load Cell

Bending ring load cell with low profile design ideal for high capacity weighing applications, including weighbridges, tanks, silos, high capacity platform scales and force measurement. OMIL approved capacities range from 5,000 kg to 30,000 kg.

Approvals

Some approval documents are available to view by clicking the icons below.

OIML Logo LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65

Full Scale Output:
2.0 mV/V

Output Resistance:
1,025 (±20) ohm

Input Resistance:
1,065 (±60) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated:
14 °F to 104 °F (-10 °C to 40 °C)
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Hermetically sealed, IP68

Safe Overload:
150% at center loading point, full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.020% full scale

Insulation Resistance:
2,000 megohm

Deflection at Capacity:
< 0.5 mm at full scale

Cable Length:
5,000 kg: 5 m
10,000 to 20,000 kg: 10 m
30,000 kg: 20 m

Cable Diameter:
0.220 in
Polyurethane jacket

Cable Color Code:
Blue +Excitation
Black –Excitation
White +Signal
Red –Signal
Green +Sense
Gray –Sense

Warranty:
One-year limited

Approvals:
cFMus
OIML

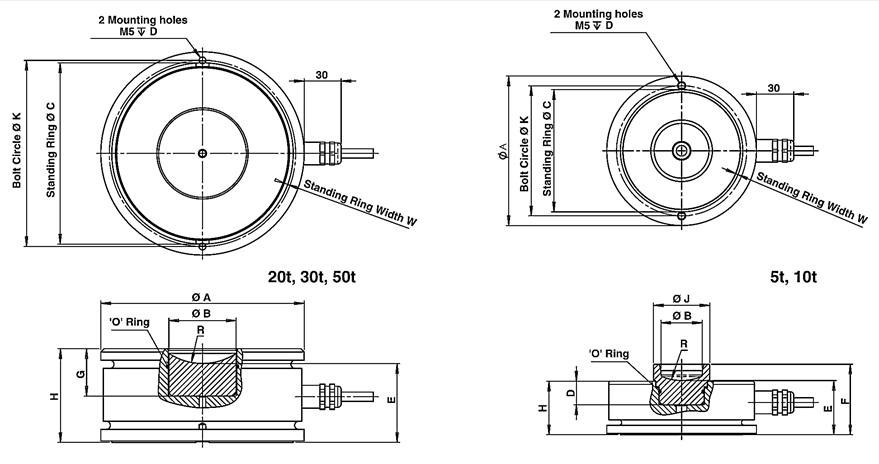

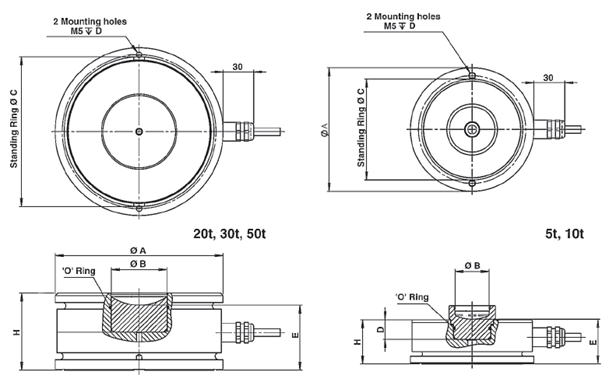

Rated Capacity A B C D E H
kg/mm
5,000 80.0 19.0 70.0 20.0 33.4 30.0
10,000 92.0 28.0 80.0 14.6 33.4 33.0
20,000 to 30,000 110.0 29.0 101.5 26.3 39.0 50.0





Resources / Downloads

Title Download Email
Tedea 220 Load Cell Catalog Page Download Email

Title Version Revision Download Email Category Archived
Load Cell and Weigh Module Handbook D Download Email Load Cells|Weigh Modules No

Title Collateral Wizard Request Download Email Category
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells

Parts

Part # Description List Price Cart / Quote
65854 Load Cell,CDK 220-C3-5000 KG 5M 2MV/V 1000 OHM Tedea-Huntleigh SST HS IP68 OIML C3 FM

List Price: $1,266.00

65855 Load Cell,CDK 220-C3- 10,000KG 10M 2MV/V 1000 OHM Tedea SST HS IP68 OIML C3 FM

List Price: $1,372.00

65856 Load Cell,CDK 220-C3- 20,000KG 10M 2MV/V 1000 OHM Tedea SST HS IP68 OIML C3 FM

List Price: $1,372.00

65857 Load Cell,CDK 220-C3-30,0 30000KG 20M 2MV/V 1000 OHM Tedea-Huntleigh SST HS IP68 OIML C3 FM

List Price: $1,372.00

Related Products

Hdimage(1)

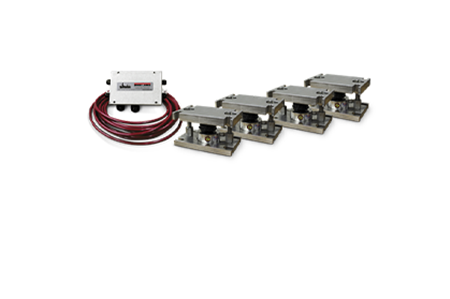

220 Universal Mount Stainless Steel Weigh Module
