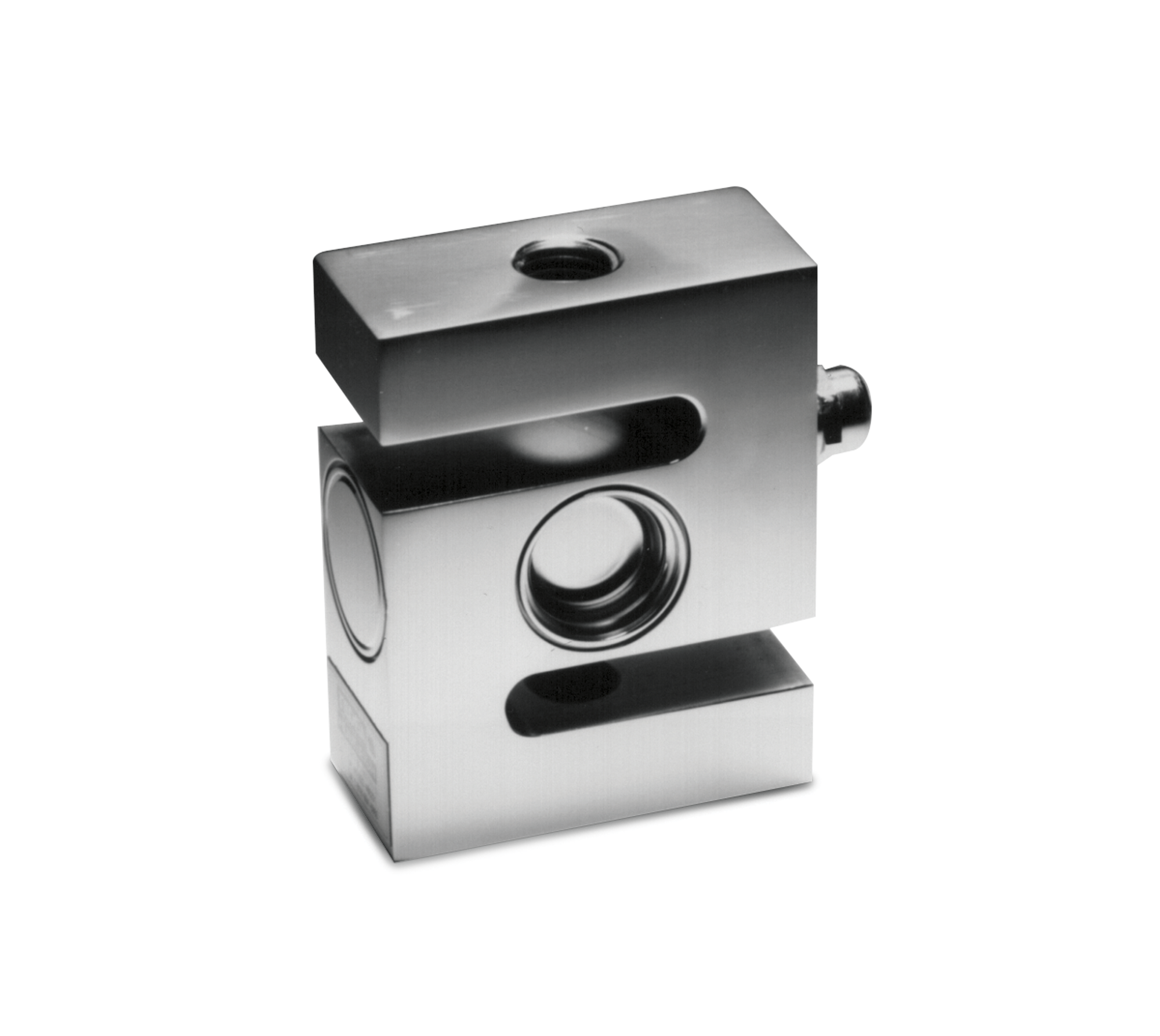

VPG Tedea-Huntleigh 620 Stainless Steel, S-Beam Load Cell

Ideally suited for harsh environments, lever conversions, hoppers/tanks, vibratory feeders, general purpose weighing and force measurement applications. The stainless steel, welded cavity design provides protection against water and corrosive materials. Capacities range from 500 to 2,000 kg.  Complete with 5 m of load cell cable.


Some approval documents are available to view by clicking the icons below.


WARNING: Cancer and Reproductive Harm California Proposition 65

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (± 3) ohm

Input Resistance:
400 (± 20) ohm

Stainless steel

Compensated range
14 °F to 104 °F (-10 °C to 40 °C)
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Welded-seal, IP68

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.02% full scale

Insulation Resistance:
1,000 megohm

Cable Length:
5 m

Cable Diameter:
0.220 in
Polyurethane jacket

Cable Color Code:
Blue +Excitation
Black –Excitation
White +Signal
Red –Signal
Green +Sense
Grey –Sense

One-year limited

Ex (Available upon request)
OIML (Available upon request)

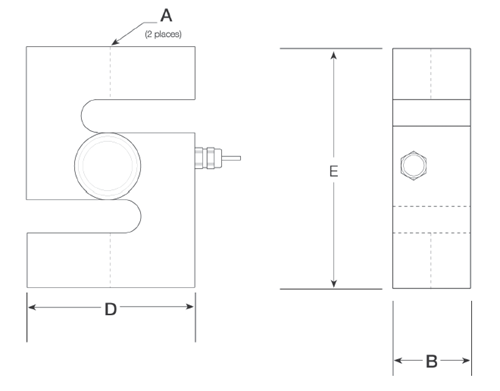

Rated Capacity A* B D E
500 to 1,000 1/2-20 UNF 33.5 73.2 94.0
2,000 3/4-16 UNF 33.5 73.2 94.0
*Metric threads available


Resources / Downloads

Title Download Email
Tedea 620 Load Cell Catalog Page Download Email

Title Version Revision Download Email Category Archived
Load Cell and Weigh Module Handbook B Download Email Load Cells|Weigh Modules No

Title Collateral Wizard Request Download Email Category
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells


Part # Description List Price Cart
36389 Load Cell,SBM 620-500kg 500kg 5M TH 2mV/V 350 OHM NTEP IP68 III 3 S/ III 5 M SST WS FM

List Price: $689.00

36390 Load Cell,SBM 620-1000kg 1000kg 5m TH 2mV/V 350 OHM NTEP IP68 III 3 S/III 5 M SST WS FM

List Price: $689.00

36391 Load Cell,SBM 620-2000kg 2000kg 5m TH 2mV/V 350 OHM NTEP IP68 III 3 S/III 5 M SST WS FM

List Price: $689.00
