LaserLight2™ Remote Display

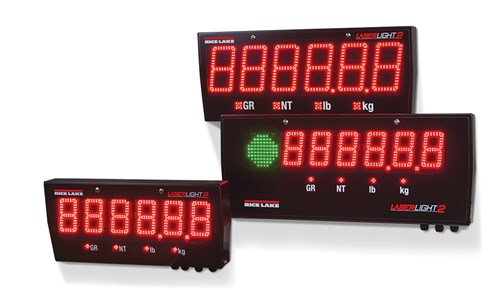

  • Available with a 4 in (100 mm) or 6 in (150 mm) display
  • Six high-intensity red digits (double-row discrete LED)
  • Time and date displayed when scale is empty
  • Auto Learn mode of communication protocols
  • Hold displayed weight (demand input)
  • Software selectable standstill mode for no updates while in motion
  • Durable weathertight IP66 enclosure
  • Adjustable daylight/night intensity
  • Non-glare contrast filtered lens
  • Mirror (reverse image) function
  • RS-232, 20 mA and RS-485 communications
  • Auto sensing 115/230 VAC power supply

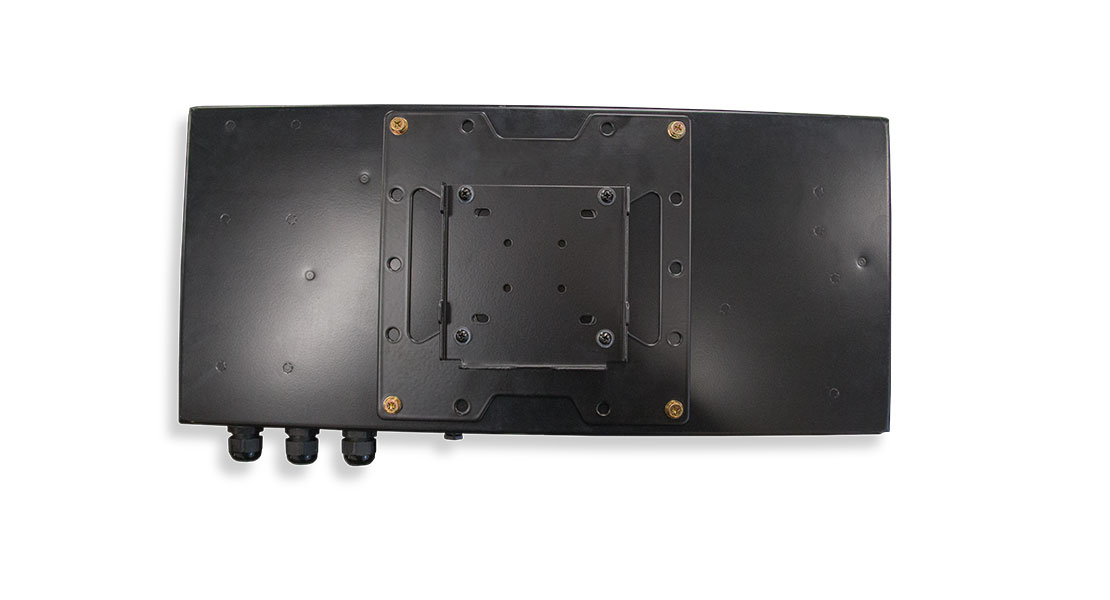

  • Wall mounted with side flanges or with VESA mount
  • Goretex breather vent inhibits internal moisture buildup

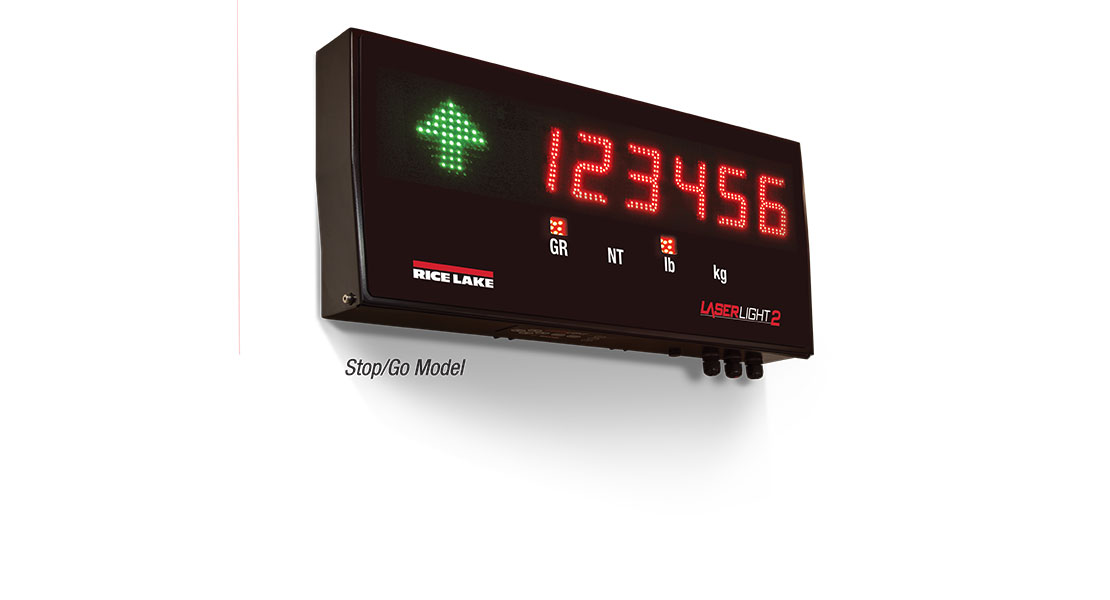

  • Red, green and arrow lights in stop/go version

Approvals

Some approval documents are available to view by clicking the icons below.

ULCUS

WARNING: Cancer and Reproductive Harm California Proposition 65

Bright and Vivid Display, Even in Direct Sunlight

Prominently display weight, numeric data and messages with the LaserLight2 remote display. A super-bright LED display with non-glare lens provides sharp seven-segment, six-digit characters that are easy to read. Never lose visibility in dark conditions or experience wash-out in direct sunlight. Simply power up a LaserLight2 remote display in your application and the benefits are clearly visible.

A redesigned enclosure provides easy access to internal components. The front panel swings open for
convenient setup and service, yet is securely held in place. The weather-tight, IP66 rated enclosure provides
superior protection for worry-free daily use. The external keypad makes navigating configuration
options safe and easy with up, down, left and right arrow keys as well as Enter, Setup, Mode, Set and Learn buttons.

Available in four-inch or six-inch character sizes, LaserLight2 remote displays include annunciators for gross, net, pounds, and kilograms.

Display:
6-digit, 7-segment discrete oval red LED lamps
Contrast enhanced optical filtering lens 1- or 2-place decimal or comma indication
4 annunciators for GR, NT, lb, kg
4-inch red, green ball/arrow in Stop/Go model

Maximum Viewing Distance:
4 in: 200 ft (65 m)
6 in: 300 ft (100 m)

Input Interface:
RS-232, RS-485, 20 mA current loop (active or passive, switch selectable)

Output Interface:
Independently configurable echo out port or RS-232

Input Data Format:
Baud Rate: 1200, 2400, 4800, 9600 and 19200 self-learning or software selectable

Character Format:
7 or 8 data bits; even, odd, or no parity; 1 or 2 stop bits, self-learning or software selectable

Update:
Continuous or out-of-motion only; software selectable

Power Consumption:
AC voltages: 100-240 VAC;
50-60Hz
4 in: 21 watt
6 in: 27 watt

Time:
Software enable/disable, 12- or 24-hour format

Date:
Software enable/disable, US or ISO format

Rating/Material:
IP66 weather tight, mild steel, powder coated

Dimensions:
4-inch (L x H): 22.28 in x 9.8 in
6-inch (L x H): 30.63 in x 12.77 in
Stop/Go (L x H): 30.63 in x 12.77 in (flanges add 2.00 in width)

Weight:
4 in: 20 lb (9 kg)
6 in: 25 lb (11 kg)

Operating Temperature Range:
-40°F to 120°F (-40°C to 49°C)

Warranty:
Two-year limited warranty

Approvals:
UL/cUL on specific part numbers

LaserLight2 Dimensions
22-inch Enclosure (Four-inch Model)
A 22.28 in (565 mm) D 9.80 in (250 mm)
B 10.96 in (280 mm) E 23.00 in (584 mm)
C 3.28 in (85 mm) F 6.00 in (152 mm) 3/8 inch bolt
31-inch Enclosure (Six-inch and Stop/Go Models)
A 30.63 in (780 mm) D 12.77 in (325 mm)
B 13.94 in (355 mm) E 31.00 in (787 mm)
C 3.73 in (95 mm) F 7.75 in (197 mm) 3/8 inch bolt



Resources / Downloads

Title View Email Category Type
1280 in Full Control View Email Application Story
Birchwood's Bluegills View Email Application Story
Fair Weight View Email Agriculture|Livestock Scales Application Story
RoughDeck® Sets World Record View Email Articles
Time for Bourbon at O.Z. Tyler View Email Articles

Title Download Email
LaserLight2 Catalog Page Download Email

Title Version Revision Download Email Category Archived
LaserLight2 Series Technical Manual G Download Email Remote Displays / Scoreboards No
LaserLight2 Remote Display Pole Mount Kit Installation Addendum C Download Email Remote Displays / Scoreboards No
ConnexLink Wireless Radio 900 MHZ Installation for LaserLight2 A Download Email Remote Displays / Scoreboards No

Title Download Email
LaserLight 2 Replacement Parts Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
LaserLight2 Series Collateral Wizard Request Download Email Remote Displays / Scoreboards

Title Version Size Release Date Download Email
LaserLight2 Firmware 3.04 114.5 KB 02/08/2018 Download Email

Title View Download Email Category
Connecting a Stop and Go LaserLight to a 920i with iRev View Email Software|Indicators / Controllers|Remote Displays / Scoreboards|Weight Indicators

Parts

(includes Flange-mount hardware)

Part # Description List Price Cart
167091 Display,LaserLight2 4-IN 4 inch LED, 115/230VAC, Painted Steel Enclosure with Flange Mount

List Price: $1,900.00

179521 Display,LaserLight2 cUL 4 cUL Marked, 4 inch LED, 115/230VAC, Mild Steel Painted Enclosure with Flange Mount

List Price: $2,100.00

175286 Display,LaserLight2 SST 4 4 Inch LED, 115/230VAC, Stainless Steel Enclosure with Flange Mount

List Price: $2,250.00

167092 Display,LaserLight2 6-IN 6 inch LED, 115/230VAC, Painted Steel Enclosure with Flange Mount

List Price: $2,400.00

179523 Display,LaserLight2,cUL 6 cUL Marked, 6 inch LED, 115/230VAC, Mild Steel Painted Enclosure With Flange Mount

List Price: $2,600.00

179525 Display,LaserLight2,cUL Stop-Go, cUL Marked, 4 inch LED, 115/230VAC, Painted Enclosure With Flange Mount

List Price: $2,600.00

187120 Display,LaserLight2 S/G 4 inch LED with Stop and Go Light, 115/230VAC, Stainless Steel Enclosure Enclosure with Flange Mount

List Price: $2,825.00

167093 Display,LaserLight2 S/G 4 inch LED with Stop and Go Light, 115/230VAC, Painted Steel Enclosure with Flange Mount

List Price: $2,400.00

(includes VESA-mount hardware)

(includes MSI ScaleCore RF kit)

Options

Part # Description List Price Cart
175052 LaserLight2 RF Kit ConnexLink Transceiver Kit

List Price: $835.00

175213 VESA Mount,Low Profile Flat Wall Mount 200mm Hole Pattern 22-40 Inch Displays

List Price: $85.00

175305 Opt Kit,LaserLight2,4 IN. Mounting Bracket

List Price: $27.00

175306 Opt Kit,LaserLight2,6 IN. Mounting Bracket

List Price: $27.00

179910 Opt Kit,LL2,4 IN. SST Mounting Bracket

List Price: $30.00

187124 Opt Kit,LL2,6 IN. SST Mounting Bracket

List Price: $40.00

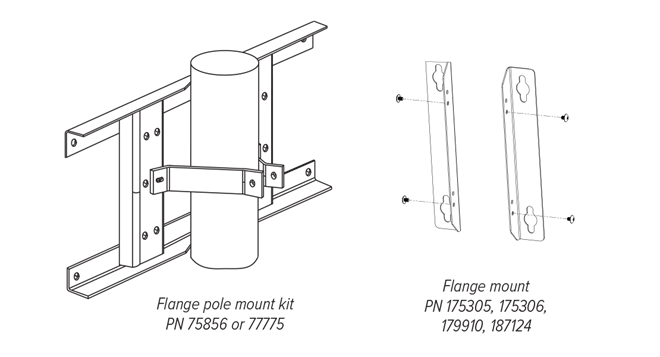

75856 Pole,Mount Kit LaserLight 4 inch Remote Display, Summit Gray

List Price: $250.00

77775 Pole,Mount Kit LaserLight 6 inch Remote Display

List Price: $250.00

177865 Pole Mount,LaserLight2 Displays 2-Inch To 6-Inch Poles

List Price: $80.00

178790 Offset Mounting Plt Kit LaserLight2 Displays

List Price: $75.00

181224 Visor Kit,LaserLight2 4 inch Model, 22 inch Enclosure

List Price: $160.00

181801 Visor Kit,LaserLight2 6-In or 4-In Stop/Go Model, 31 inch Enclosure

List Price: $175.00

Consult LaserLight2 green display (modified LED boards)

Call for price

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.

Related Products

MSI 3460 Challenger 3 Crane Scale2

MSI-3460 Challenger 3 Crane Scale

MSI-3460's latest instrumentation technology is the central enhancement of the Challenger 3, bringing industry-leading weighing features of previous Challenger designs to a whole new level.

WEB SC MSI 4260 Portaweight

MSI-4260 Port-A-Weigh Crane Scale

For medium- to heavy-capacity and duty-cycle needs, the MSI-4260 Port-A-Weigh & MSI-4260 IS Intrinsically Safe Crane Scale have an established reputation as the industry standard in overhead weighing.

Hdimage(1)

MSI-8004HD Indicator/RF LED Remote Display

The MSI-8004HD Indicator and RF Remote Display has all of the heavy-duty versatility of the MSI-8000HD with the added benefit of extremely high visibility in indoor and outdoor applications.

Hdimage(1)

MSI-8000 RF Remote Display

The MSI-8000 RF Remote Display is a full-featured remote display enabling operators to operate weighing systems from a distance not offering harm's way.

Hdimage(1)

MSI-8000HD Weight Indicator and RF Remote Display

The MSI-8000HD weight indicator/RF remote display is the heavy-duty version of the reputable handheld MSI-8000 RF remote display.

Hdimage(1)

TranSend™ Wireless Load Cell Interface System

The MSI-7000 and 7001 TranSend exceeds communication expectations by wirelessly transmitting data between load cells and receiving units.

WEB SC Laserlight M

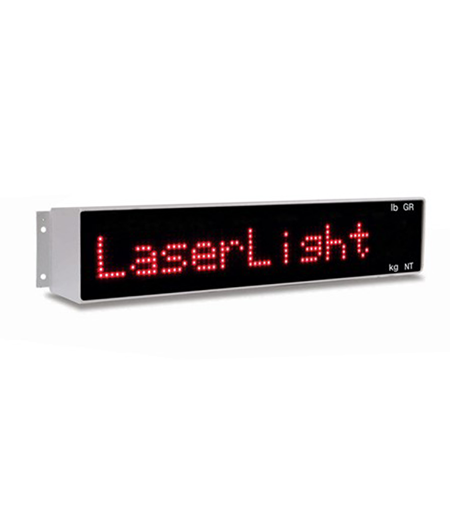

LaserLight® M-Series Messaging Remote Display
