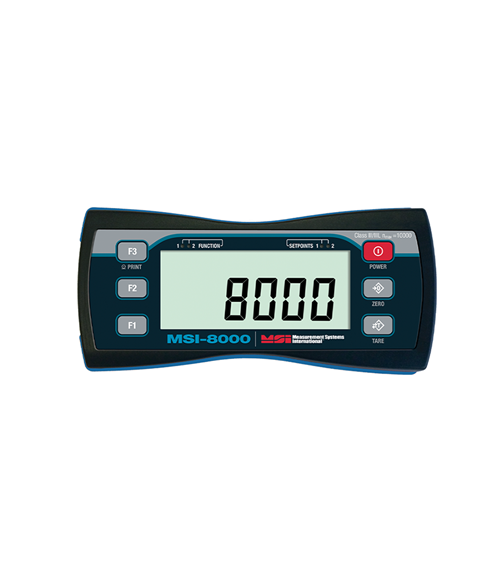

MSI-8000 RF Remote Display

  • Compatible with all ScaleCore™ based products including: MSI-7300 Dyna-Link 2, MSI-3460 Challenger 3,MSI-4260 Port-A-Weigh, MSI-7000 and MSI-7001 TranSend™, MSI-9600HT and MSI-6360
  • LCD display
  • Membrane keypad for remote control functionality
  • User-definable function keys for added versatility
  • Universal 115/230 VAC, 50/60 Hz battery charger (NA plug standard)

(Contact MSI for application consultation)

Long Distance Communication with Ultimate Versatility

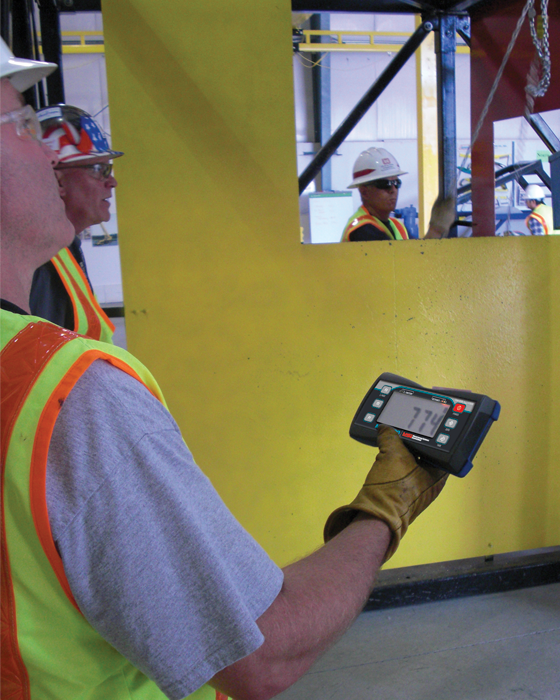

The MSI-8000 remote display makes wireless control easy with the ability to operate weighing systems from a distance. The wireless remote display can be used for viewing MSI ScaleCore-based crane scales and dynamometers, including any RF compatible MSI-3460 Challenger 3, MSI-4260 Port-A-Weigh overhead crane scale, or MSI-7300 Dyna-Link 2 tension dynamometer. Both devices are compact and carry an RF effective range of 300 feet (line of sight) and operate on a license-free 2.4 GHz frequency. With user-friendly keypads, standard function keys for both devices include: On/Off, Zero, Tare and Print. In addition, two userdefined keys are included for peak hold, high resolution, total, view total, net/gross, and units switching. Three selectable setpoints come standard in both models, with two of the selectable setpoints utilizing the programmable user-defined keys.

The MSI-8000 features a heavy-duty NEMA 4/IP65 enclosure, making it ideal for use in nearly any operating environment. The MSI-8000 features a large, six-digit, one-inch LCD display for improved visibility, and a user-friendly keypad for simple configuration and operation. Just one MSI-8000 communicates wirelessly with up to four compatible MSI devices and an integrated RS-232 data port allows the MSI-8000 to easily interface with peripheral devices such as printers, PCs and scoreboards. Power to the MSI-8000 is supplied by an internal rechargeable lithium polymer battery, which provides up to 24 hours of continuous use between charging.

Enclosure:
NEMA Type 4, IP65

Weight:
0.98 lb (445 g)

Keypad:
On/Off, Zero (100%), Tare, Print and two user-defined keys for the following functions: peak hold, high resolution, total, view total, net/gross, units switching

Display:
Six-digit 1.0 in (26.4 mm) LCD screen

Units Displayed:
Pounds, kilograms, tons, metric tons, kilonewtons

Annunciators:
Stable, COZ, low battery, peak, net, kg, kN, lb, M, ton, setpoint, function LEDs

Power:
Integral lithium-ion battery
Universal 115/230 VAC, 50/60 Hz battery charger
(NA plug included)

Operating Time:
Up to 24 hours of continuous use (15 minute auto-shutoff with non-use)

Operating Temperature:
-4 °F to 140 °F (-20 °C to 60 °C)

RF Radio Link:
2.4 GHz 802.15.4
Communicates with RF 3460, 4260, 7300, 7000 & 7001

RF Effective Range:
Typically 100 to 300 ft, line of sight; for longer range consult factory

Connector:
Four-pin Turck connector for charging and RS-232 communication

Warranty:
One-year limited

Dimensions
A 8.00 in (203 mm) C 3.85 in (98 mm)
B 3.85 in (98 mm) D 1.37 in (35 mm)



Resources / Downloads

Title View Email Category Type
Rig it Right View Email Overhead Weighing Systems Application Story
The MSI-7300 Dyna-Link 2 Digital Tension Dynamometer Is a Trusted Tool View Email Overhead Weighing Systems Articles

Title Download Email
MSI-8000 Catalog Page Download Email

Title Version Revision Download Email Category Archived
MSI-8000 RF Remote Display Operation Manual F Download Email MSI Crane Scales No
MSI-8000 Menu Map Download Email MSI Crane Scales No
MSI Crane Scale Safety and Periodic Maintenance Manual A Download Email MSI Crane Scales No
MSI Wi-Fi Setup Download Email MSI Crane Scales No
ScaleCore 2 Database Program (Sc2Db) Download Email MSI Crane Scales No
ScaleCore Connect Software Manual B Download Email MSI Crane Scales|Overhead Weighing Systems No

Title Download Email
Overhead Weighing Systems Questionnaire Download Email

Title Download Email
MSI-8000 Replacement Parts Page Download Email

Title Collateral Wizard Request Download Email Category
6 Step Integrated Crane Weighing Component Selector Guide Request Download Email MSI Crane Scales
Crane Scale Selection Guide Request Download Email MSI Crane Scales|Overhead Weighing Systems
MSI Overhead Weighing Product Guide Request Download Email MSI Crane Scales
MSI-8000 and MSI-8000HD Request Download Email MSI Crane Scales|Remote Displays / Scoreboards
The Overhead Weighing Solutions Buyer's Guide Request Download Email Systems Integration/Load Cells|Tension Dynamometers|MSI Software|MSI Aircraft Load Monitoring|MSI Crane Scales|Overhead Weighing Systems
Why Buy MSI? Download Email MSI Crane Scales|Overhead Weighing Systems

Title Version Size Release Date Download Email
ScaleCore Connect 1.01 47.3 MB 11/25/2019 Download Email
ScaleCore Configuration Management Program (ScCMP) Software v2-0-5-51 44.9 MB 06/17/2015 Download Email

Title View Download Email Category
Ensure Safety with MSI View Download Email Overhead Weighing Systems|MSI Crane Scales|Systems Integration/Load Cells|Hanging Scales|Weight Indicators|MSI Software|MSI Aircraft Load Monitoring

Title Download Email Category
Connecting with MSI Download Email MSI Crane Scales

Parts

MSI-8000 RF Remote Display

Part # Description List Price Cart
139381 MSI-8000 Remote Display RF Handheld (Requires an MSI Crane Scale or MSI-7300 equipped with a RF modem)

List Price: $1,320.00

Options

Options/Accessories

Part # Description List Price Cart
149549 MSI-8000 Battery Charger 115/230 VAC 50/60 Hz. North American Style Plug

List Price: $155.00

149550 FINAL ASSY BATTERY CHARGER INTL 8000

List Price: $150.00

150964 CABLE ASSY,SERIAL I/O DCE D9 SOCKETS 8000

List Price: $190.00

151095 OPTION KIT AUDIBLE ALARM HANDHELD DISPLAY 8000

List Price: $300.00

182223 MSI-8000 Car Charger 12VDC Cigarette Lighter Battery Charger. 5VDC 2.4 A

List Price: $135.00
