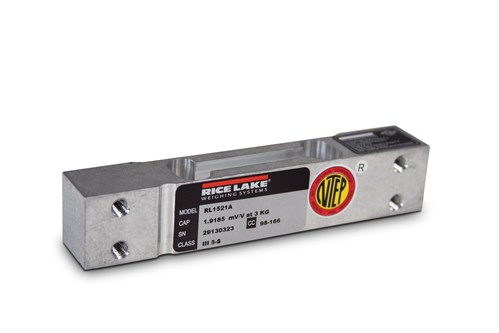

Rice Lake RL1521A Aluminum, Single Point Load Cell
Low-profile single-point load cell designed for electronic bench scales and platform scales. A replacement for the VPG BLH and NMB C2G1, capacities range from 3 kg to 35 kg.
Approvals
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
RL1521A Load Cell Specifications
|
Full Scale Output: Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: Rated Excitation: Combined Error: Insulation Resistance: Cable Length: Cable Diameter: |
Cable Color Code: Max Platform Size: Warranty: Approvals: |
RL1521A Load Cell Dimensions
| Rated Capacity | A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|
| kg/mm | ||||||||
| 3 to 7 | 130.0 | 22.0 | 25.0 | M6 × 1.0 | 25.4 | 15.0 | 106.0 | 12.0 |
| 10 to 30 | 130.0 | 22.0 | 25.0 | M6 × 1.0 | 30.0 | 15.0 | 106.0 | 12.0 |
| 35 | 130.0 | 22.0 | 25.0 | M6 × 1.0 | 40.0 | 15.0 | 106.0 | 12.0 |
Resources / Downloads
Sales Literature
| Title | Collateral Wizard | Request | Download | Category | |
|---|---|---|---|---|---|
| Load Cell Wiring Guide | Request | Download |  Email |
Load Cells | |
| Load Cell Selection Guide | Request | Download | Email |
Load Cells|Weigh Modules | |
| Load Cell and Weigh Module Selection Guide | Request | Download | Email |
Load Cells|Weigh Modules | |
| Load Cell and Weigh Module Handbook | Request | Download | Email |
Load Cells|Weigh Modules |
Parts
1.5ft Cable
| Part # | Description | List Price | Cart |
|---|---|---|---|
| 50620 | Load Cell,SPT RL1521A-3kg 3 KG 1.5ft 2mV/V 350 OHM NTEP III 5S AL IP66 FM |
List Price: $148.00 |
|
| 50619 | Load Cell,SPT RL1521A-5kg 5 KG 1.5ft 2mV/V 350 OHM NTEP III 5S AL IP66 FM |
List Price: $148.00 |
|
| 50621 | Load Cell,SPT RL1521A-7KG 7 KG 1.5ft 2mV/V 350 OHM NTEP III 5S AL IP66 FM |
List Price: $148.00 |
|
| 50622 | Load Cell,SPT RL1521A- 10KG 10KG 1.5ft 2mV/V 350 OHM NTEP III 5S AL IP66 FM |
List Price: $148.00 |
|
| 50623 | Load Cell,SPT RL1521A- 15KG 15KG 1.5ft 2mV/V 350 OHM NTEP III 5S AL IP66 FM |
List Price: $148.00 |
|
| 50624 | Load Cell,SPT RL1521A- 20KG 20KG 1.5ft 2mV/V 350 OHM NTEP III 5S AL IP66 FM |
List Price: $148.00 |
|
| 50625 | Load Cell,SPT RL1521A- 30KG 30KG 1.5ft 2mV/V 350 OHM NTEP III 5S AL IP66 FM |
List Price: $148.00 |
|
| 50626 | Load Cell,SPT RL1521A- 35KG 1.5ft 2mV/V 350 OHM NTEP III 5S AL IP66 FM |
List Price: $148.00 |
10ft Cable
Related Products
VPG Celtron LPS Aluminum, Single Point Load Cell
The VPG Celtron LPS aluminum, single point load cell is designed for counting and bench weighing applications. Capacities range from three kilograms to 100 kilograms (6.6 pounds to 220.5 pounds)

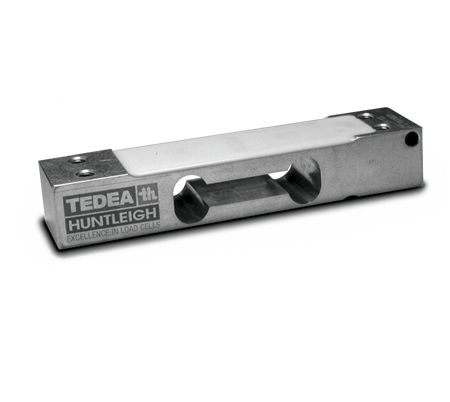

VPG Tedea-Huntleigh 1022 Aluminum, Single Point Load Cell
