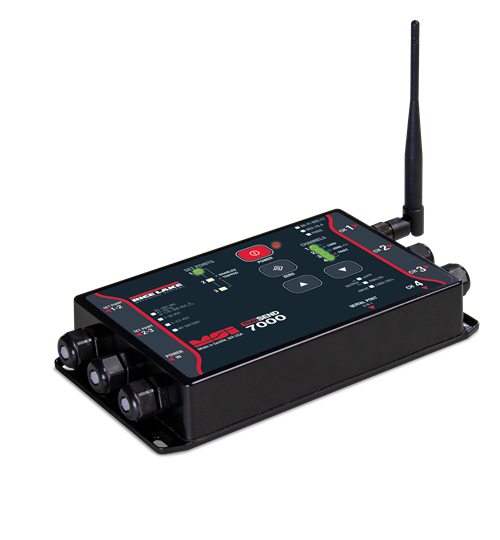

TranSend™ Wireless Load Cell Interface System

  • Works with any basic digital weight indicator
  • Excitation to load cell(s) provided by the transmitter, not the indicator
  • Each transmitter/receiver set is individually paired
  • Auto-off mode - selectable for 15, 30, 45, 60 minutes or off
  • Auto-sleep mode - power down during non-use, power up with weight change or key press
  • Serial communication cable included with all transmitters

Additional HD Features:

  • IP68 milled aluminum enclosure
  • Second radio modem available

A Simple and Efficient Load Cell Interface

From the initial weighment on the scale to the final numeric value on the indicator, efficient communication is key to the success of the entire operation. Whether it’s overhead, livestock, tank, or heavy capacity weighing, once your traditional conduit is damaged or needs to be replaced, communication is halted and so is your operation. The MSI-7000 and 7001 TranSend not only solves issues resulting from traditional conduit, it also exceeds communication application expectations.

From the brand you know and trust for expert integrated solutions, MSI has designed both the 7000 and 7001 TranSend to transform the signal of one or more load cells and transmits that data wirelessly to a receiving unit. TranSend is fully compatible with a broad range of receiving devices including MSI-8000, MSI-8000HD, any other digital weight indicator, PC, PLC, or other industrial device. Housed in a rugged IP-66 NEMA Type 4 enclosure, TranSend is suitable for most indoor and outdoor environments with an operating distance of up to 300 feet.

Select from the basic functionality of single-channel models, or upgrade to the expanded capabilities of multi-channel models. Multi-channel devices offer up to three optional relay contacts, audible alarm, and can function as a smart junction box. In the event of a load cell failure, TranSend can automatically compensate and transmit a service warning, and compensate for that load cell until it is repaired.

The MSI 7000 and 7001 TranSend transforms the way your devices communicate between one another. Upgrade your current communication process by eliminating expensive conduit and replacing it with TranSend.

Power:
5-6 VDC, 7-36 VDC 85-265 VAC

Excitation Voltage:
Transmitter: +4.8 VDC, 16x 350Ω or 32x 700Ω load cells

Standard Antenna:
1/2 wave 2dBi, articulated

Frequency:
Direct sequence spread spectrum at 2.4 GHz, 802.15.4

Effective Range:
Typically 100 ft -300 ft, line of sight; for longer range consult factory

Digital I/O:
Three coil relays available on select models and 7000HD units

Circuit Protection:
RFI, EMI, ESD protection

Serial Port:
Full duplex RS-232

Operating Temperature:
-40° F to 185° F (-40° C to 85° C)

Enclosure:
NEMA Type 4 (IP66), aluminum black powder coated (excludes wall cube model)
7000HD and 7001HD: IP68

Additional RF Options:
Wi-Fi
Bluetooth®
Cellular (consult)
802.15.4 FHSS

Warranty:
One-year limited

Resources / Downloads

Title View Email Category Type
Flipping for Wireless View Email Overhead Weighing Systems Application Story

Title Download Email
TranSend RF Transceiver Catalog Page Download Email

Title Version Revision Download Email Category Archived
MSI TranSend 7000 Series Technical Manual D Download Email MSI Crane Scales No
MSI Wi-Fi Setup Download Email MSI Crane Scales No
ScaleCore Connect Software Manual B Download Email MSI Crane Scales|Overhead Weighing Systems No
ScaleCore Electronic Tension Test Recorder (ScETTR) Download Email MSI Crane Scales No
ScaleCore 2 Database Program (Sc2Db) Download Email MSI Crane Scales No

Title Collateral Wizard Request Download Email Category
TranSend Wireless Load Cell Interface System Request Download Email MSI Crane Scales
The Overhead Weighing Solutions Buyer's Guide Request Download Email Systems Integration/Load Cells|Tension Dynamometers|MSI Software|MSI Aircraft Load Monitoring|MSI Crane Scales|Overhead Weighing Systems
Why Buy MSI? Download Email MSI Crane Scales|Overhead Weighing Systems
MSI Overhead Weighing Product Guide Request Download Email MSI Crane Scales
Overhead Weighing Safety Guide Request Download Email Overhead Weighing Systems|MSI Crane Scales
6 Step Integrated Crane Weighing Component Selector Guide Request Download Email MSI Crane Scales

Title Version Size Release Date Download Email
MSI mV Scale Calibration (Truck Scale Calibration) Utility 1 58.8 MB 06/19/2017 Download Email
MSI Scale Discovery Utility 1.5+ 1.2 MB 12/28/2021 Download Email
MSI WiFi Connect 1.0 58.3 MB 05/04/2017 Download Email
ScaleCore Configuration Management Program (ScCMP) Software v2-0-5-51 44.9 MB 06/17/2015 Download Email
ScaleCore Connect 1.01 47.3 MB 11/25/2019 Download Email

Title View Download Email Category
Ensure Safety with MSI View Download Email Overhead Weighing Systems|MSI Crane Scales|Systems Integration/Load Cells|Hanging Scales|Weight Indicators|MSI Software|MSI Aircraft Load Monitoring
TranSend and SendIt Configuration View Download Email Wireless Communications|Overhead Weighing Systems
TranSend and SendIt Overview View Download Email Wireless Communications|Overhead Weighing Systems
TranSend and SendIt Calibration View Download Email Wireless Communications|Overhead Weighing Systems

Parts

Transmitters: 5-6 VDC Power Input

Part # Description List Price Cart
160330 MSI-7001LC 1CH 5-6VDC RF 802.15.4 2.4GHz

List Price: $885.00

159207 MSI-7000LC 4CH 5-6VDC NO RELAYS RF 802.15.4, 2.4GHz

List Price: $935.00

161949 MSI-7000LC 4CH 5-6VDC W/ 3 Coil Relays RF 802.15.4 2.4GHz

List Price: $1,070.00

176644 MSI-7001LC 1CH 5-6VDC Bluetooth Class 1, 2.4GHz

List Price: $930.00

176638 MSI-7000LC 4CH 5-6VDC Bluetooth, No Relays Bluetooth Class 1, 2.4GHz

List Price: $985.00

176641 MSI-7000LC 4CH 5-6VDC Bluetooth, w/ 3 Coil Relays Bluetooth Class 1, 2.4GHz

List Price: $1,120.00

176655 MSI-7001LC 1CH 5-6VDC WiFi, 802.11 b/g, 2.4GHz

List Price: $930.00

176648 MSI-7000LC 4CH 5-6VDC WiFi, No Relays WiFi, 802.11 b/g, 2.4GHz

List Price: $985.00

176652 MSI-7000LC 4CH 5-6VDC WiFi, w/ 3 Coil Relays WiFi, 802.11 b/g, 2.4GHz

List Price: $1,120.00

Transmitters: 7-36 VDC Power Input

Transmitters: 85-265 VAC Power Input

7000HD

7001HD

Receivers: 5-6 VDC Power Input

Receivers: 7-36 VDC Power Input

Receivers: 85-265 VAC Power Input

Options

Options

Part # Description List Price Cart
162172 Battery Charger 6V SLA 7000/7001

List Price: $63.00

162173 Battery 6V SLA 7000/7001

List Price: $120.00

162175 Enclosure Battery 6V SLA 7000/7001

List Price: $320.00

150965 CABLE ASSY,SERIAL I/O DTE D9 PINS 8000

List Price: $170.00

160109 PWR ADAPTER 12W 6VDC WALL MOUNT. UNIVERSAL INPUT 90-264VAC. 2.1mm COAX POWER PLUG.

List Price: $53.00

162178 Option Kit Remote Antenna 7000/7001 (Uses Standard Antenna)

List Price: $440.00

139309 ANTENNA KIT LONG RANGE OMNI W/3M COAX

List Price: $460.00

139310 ANTENNA KIT CORNER REFLECTOR 9DBI W/3M COAX

List Price: $455.00

139311 ANTENNA KIT CORNER REFLECTOR 12dBi W/3m COAX

List Price: $485.00

139312 ANTENNA KIT YAGI 15DBI W/3M COAX

List Price: $375.00

144345 CABLE ASSY RF-195 COAX N TO TNC 100 FEET

List Price: $430.00

139313 ANTENNA KIT VEHICLE MOUNT 5DBI W/5M COAX

List Price: $140.00

162177 Cordset IP68 4 Pin Male Shielded 2 Meter (6.56 feet)

List Price: $120.00

162184 CONN,M12 4 Pin Male Field Wireable 4-6mm Cable OD Straight

List Price: $55.50

162185 CONN,M12 4 Pin Male Field Wireable 6-8mm OD Straight IP 67

List Price: $55.50

162186 CONN,M12 4 Pin Male Field Wireable 4-6mm OD Right Angle

List Price: $55.50

162187 CONN,M12 4 Pin Male Field Wireable 6-8mm OD Right Angle

List Price: $55.50

143531 POWER CORD IEC 320/C7 EUROPEAN

List Price: $27.00

143533 POWER CORD IEC 320/C7 AUSTRALIAN

List Price: $48.00

143534 POWER CORD IEC 320/C7 U.K.

List Price: $42.00

160110 PWR ADAPTER 18W 6VDC WALL MOUNT. UNIVERSAL INPUT 90-264VAC. 2.1mm COAX POWER PLUG. CONTAINS KIT OF BLADES FOR WORLDWIDE APPLICATIONS. INCLUDES BLADES FOR UK, EUROPE, AUTRALIA, US/CANADA, CHINA

List Price: $53.00

145085 CORDSET IP68 PICO 4 PIN MALE SHIELDED 4M

List Price: $120.00

164865 Cordset IP68 M12 4 Pin Male Shielded 4M PVC Jacket Shield Connected 22AWG Conductors

List Price: $135.00

165648 Cordset IP68 M12 4P Male Shielded 5m length (16.4 feet)

List Price: $145.00

165651 Cordset IP68 M12 4P Male Shielded 10m length (32.8 feet)

List Price: $205.00

145084 CORDSET IP68 4 PIN FEM 4 COND 2 METER

List Price: $58.00

144400 CORDSET IP68 4 PIN FEMALE 4M

List Price: $90.00

168903 Cordset IP68 M12 4 Pin Female 10M (32.8 ft)

List Price: $135.00

184002 7000HD FHSS 7-36 VDC HALF PLATE ASSY.

List Price: $2,310.00

182244 Printer, GoDex MX30i

Call for price

Consult Straight connector, analog output, field wire able, 4-6 mM OD

Call for price

Consult Straight connector, analog output, field wire able, 6-8 mM OD

Call for price

Consult Right angle connector, analog output, field wire able, 4-6 mM OD

Call for price

Consult Right angle connector, analog output, field wire able, 6-8 mM OD

Call for price

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
