Product PDF

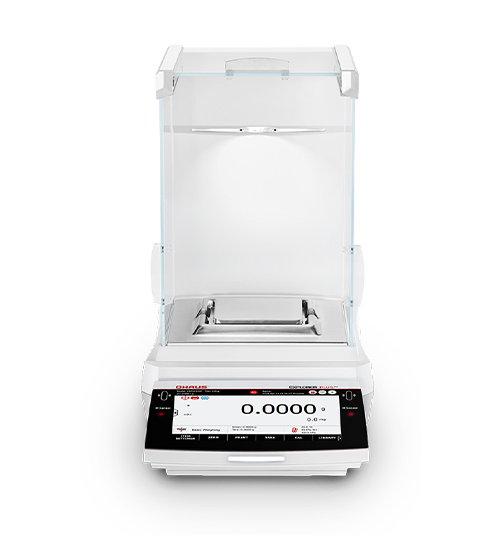

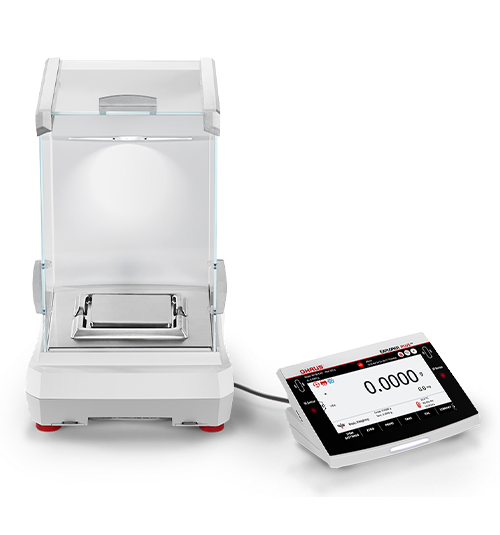

Explorer Plus™ Series, OHAUS Analytical Balance

  • Automatic calibration via AutoCal™
  • Communication USB Host (Type A) × 2, USB Device (Type B) × 1, USB Device (Type C) × 1,
  • Ethernet (RJ45) × 1, RS232 × 1; Optional Wi-Fi/ Bluetooth Dongle
  • On-screen prompts
  • Spill channel
  • Applications library
  • Backlit, high-resolution dot matrix display
  • GLP outputs via RS-232 to meet traceability requirements
  • User-selectable filter, stability indicator and auto-zero tracking
  • Five-language operation display text
  • Protective in-use cover and security bracket
  • Underweigh hook

Options

  • NTEP Certified, Legal for Trade models by special order
Request More Information

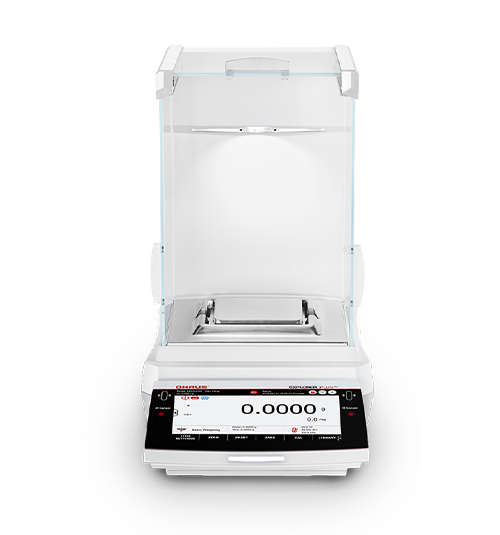

Explorer Plus Analytical Front

High Accuracy Analytical Balance for Reliable Results

The OHAUS Explorer Plus Analytical balance is ideal for precise weighing in laboratories or similar environments. It features a 7-inch touchscreen display for easy readability and a digital high-speed load cell for quick calibration.

Weighing Units:
Milligram, gram, kilogram, ounce, carat, pennyweight, troy ounce, grain, newton (see technical manual for complete listing)

Operating Modes:
Weighing, percent weighing, parts counting, checkweighing, dynamic/animal weighing, filling,
totalization, formulation, Differential weighing, density determination, peak hold, ingredient costing, pipette adjustment, SQC

Power:
AC adapter input: 100 to 240 VAC 0.6A 50/60 Hz

Stabilization Time:
EX124: Approx. 2 seconds
EX224: Approx. 2 seconds
EX324: Approx. 3 seconds

Calibration:
AutoCal™ at 1.5 °C temperature change, 11 hours, and external calibration

Temperature:
Operating:
50 °F to 86 °F (10 °C to 30 °C)

Est. Weight:
21.1 lb (9.6 kg)

Warranty:
Two-year limited

Return Policy:
OHAUS standard policy - restock fee may apply

Model  Capacity Readability Repeatability Linearity Weighing Chamber Pan Size Dimensions Part #

EX124N/AD

120 g

0.1mg

0.1mg

±0.2 mg

9.5 x 7.5 x 6.5 in
(241 x 190 x 165 mm)

Ø 3.5 in
(90 mm)

9.1 x 15.5 x 13.8 in
(230 x 393 x 350 mm)

233269

EX224N/AD

220 g

0.1mg

0.1mg

±0.2 mg

9.5 x 7.5 x 6.5 in
(241 x 190 x 165 mm)

Ø 3.5 in
(90 mm)

9.1 x 15.5 x 13.8 in
(230 x 393 x 350 mm)

233270

EX324N/AD

320 g

0.1mg

0.1mg

±0.2 mg

9.5 x 7.5 x 6.5 in
(241 x 190 x 165 mm)

Ø 3.5 in
(90 mm)

9.1 x 15.5 x 13.8 in
(230 x 393 x 350 mm)

233272



Resources/Downloads

Title Download Email
Explorer Series Analytical Catalog Page Download Email

Title Version Revision Download Email Category Archived
OHAUS Explorer Analytical, Precision and High Capacity Instruction Manual Download Email Precision Balances No

Title Collateral Wizard Request Download Email Category
OHAUS Explorer Analytical/Precision Series Download Email Balances

Parts

Part # Description List Price Cart/Quote
233269 Balance,Ohaus EXP124N/AD Analytical, Explorer, 120 g x 0.1 mg, 120-240 VAC AC Adapter US Power Cord

List Price: $7,006.00

Options

Part # Description List Price Cart/Quote
77712 Balance OPT,Cable IBM-PC 25 Pin For Ohaus Adventurer Pro and Discovery

List Price: $336.00
70406 Balance OPT,Cable 9-Pin Serial Ext

List Price: $354.00
156234 Adapter,AC Ohaus 120-240V Universal 46001724 Navigator XT, PA, PX, EX Series Requires 156235 Plus SET or 166574 US Plug Only Sold Separately

List Price: $90.00
156235 Plug Set,Intl Ohaus Kit PN 46001780 Includes 46001766 US Plug - Valor 2000, PA, PX, EX, Defender Series (Kit includes plugs for EU, AU, UK) Add ASAP for US plug

List Price: $45.00
