Explorer Plus™ Series, OHAUS High-capacity Balance

  • Touchless IR (infrared) sensors minimize keypad use
  • Program IR sensor to control operations including print, tare and other selectable functions
  • Color VGA, 7 in display with icons for simple menu navigation
  • Multiple application modes designed for versatility
  • AutoCal™ calibration
  • Robust IP54 die-cast metal bottom housing with stainless steel pan
  • ENERGY STAR qualified adapter
  • Underweigh hook
Request More Information

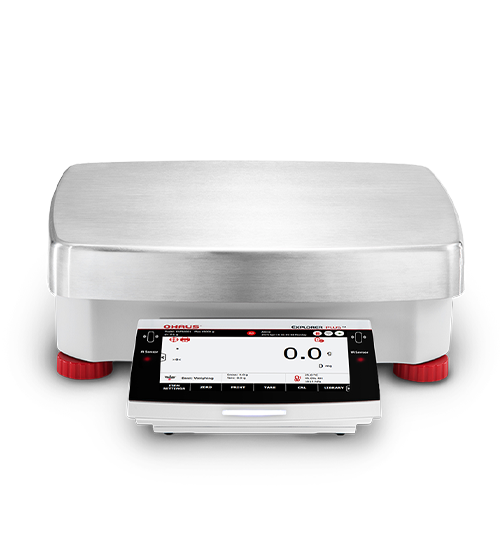

Explorer Plus High Capacity Front

High-capacity Precision Balance for Labs

The OHAUS Explorer Plus High Capacity balance is a compact weighing solution with advanced communication capabilities to integrate into Laboratory Information Management Systems (LIMS). This high-precision balance has an eco-friendly design made with recycled materials alongside a metal base and top housing.

Weighing Units:
Gram, kilogram, ounce, pound, carat, pennyweight, grain (see technical manual for complete listing)

Operating Modes:
Weighing, counting, animal/dynamic weighing, checkweighing, percent weighing, filling, parts counting, totalization, formulation, differential weighing, density determination, peak hold, ingredient costing, SQC

Power:
AC adapter input: 100 to 240 VAC 0.6 A 50/60 Hz

Stabilization Time:
Approx. 1 second

Calibration:
AutoCal™ at 1.5 °C temperature change, 11 hours, and external calibration

Temperature:
Operating:
14 °F to 140 °F (-10 °C to 60 °C)

Est. Weight:
25 lb (12.5 kg)

Warranty:
Two-year limited

Return Policy:
OHAUS standard policy - restock fee may apply

Model  Capacity Readability Repeatability Linearity Pan Size Dimensions Part #

Ex24001

24,000 g

0.1 g

±0.1 g

±2m g

14.84 × 12.24 in
(377 × 311 mm)

14.84 × 4.72 × 17.44 in
(377 × 120 × 443 mm)

233264

Ex35001

35,000 g

0.1 g

±0.1 g

±2m g

14.84 × 12.24 in
(377 × 311 mm)

14.84 × 4.72 × 17.44 in
(377 × 120 × 443 mm)

233265

Ex35001

35,000 g

0.1 g

±0.1 g

±2m g

14.84 × 12.24 in
(377 × 311 mm)

14.84 × 4.72 × 17.44 in
(377 × 120 × 443 mm)

233266



Resources/Downloads

Title Download Email
Explorer Series High-Capacity Catalog Page Download Email

Title Version Revision Download Email Category Archived
OHAUS Explorer Analytical, Precision and High Capacity Instruction Manual Download Email Precision Balances No

Title Collateral Wizard Request Download Email Category
OHAUS Explorer High Capacity Series Download Email Balances

Parts

Part # Description List Price Cart/Quote
233264 Balance,Ohaus EXP24001 Explorer High Capacity, 24000 x 0.1g, 120-240V Adapter

List Price: $7,022.00
233265 Balance,Ohaus EXP35000 Explorer High Capacity, 35000 x 0.1g, 120-240V Adapter

List Price: $8,247.00
233266 Balance,Ohaus EXP65001 Explorer High Capacity, 65000 x 0.1g, 120-240V Adapter

List Price: $9,401.00

Options

Part # Description List Price Cart/Quote
77712 Balance OPT,Cable IBM-PC 25 Pin For Ohaus Adventurer Pro and Discovery

List Price: $336.00
233257 Balance OPT,Cable 9-Pin Serial Ext

List Price: $236.00
156234 Adapter,AC Ohaus 120-240V Universal 46001724 Navigator XT, PA, PX, EX Series Requires 156235 Plus SET or 166574 US Plug Only Sold Separately

List Price: $90.00
156236 Adapter,Univeral Ohaus 46001802 Valor 2000, Valor 5000, FD, Aviator, T31P, Defender 2000, Defender 3000, RA, RV Order PN 156235 Plug SET or 166574 US Plug Only Separately

List Price: $106.00
