Product PDF

Explorer Plus™ Series, OHAUS Semi-micro Balance

  • Intuitive SmarText™ software
  • Four programmable touchless sensors
  • Weighing chamber
  • 7 inch color touchscreen display
  • Memory for up to 99 items
  • Real-time clock for GLP/GMP data collection
  • Audible stability alert
  • Autocal automatic calibration
  • EXP225D/AD and EXP225/AD
  • Includes ionizer and auto doors
  • USB Host (Type A) × 2, USB Device (Type B) × 1, USB Device (Type C) × 1
  • Ethernet (RJ45) × 1, RS232 × 1; Optional Wi-Fi/WPAN Dongle
Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

UL Listed

WARNING: Cancer and Reproductive Harm California Proposition 65

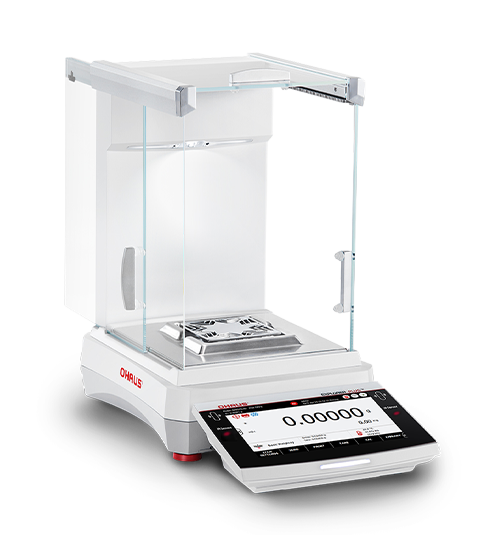

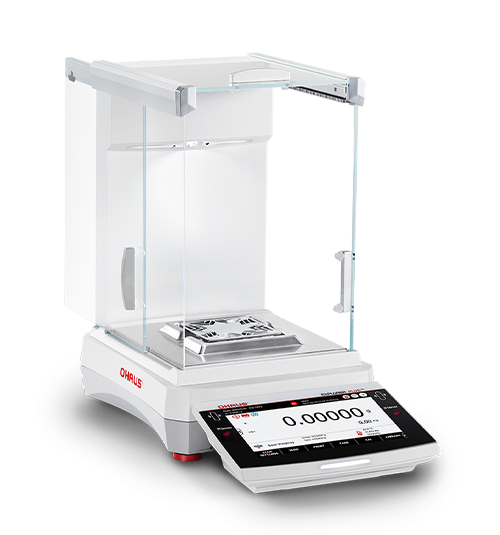

Explorer Plus Semi Micro Balance

Semi-micro Lab Balance for Precision

For high-precision weighing in laboratories, the OHAUS Explorer Plus Semi-Micro balance is ideal. It features a detachable terminal and base for ease of use, as well as anti-pinch auto doors to make removing and adding samples simple.

Weighing Units:
Gram, kilogram, ounce, pound, carat, pennyweight, grain, newton (see technical manual for complete listing)

Operating Modes:
Weighing, percent weighing, parts counting, checkweighing, dynamic/animal weighing, filling, totalization, formulation, Differential weighing, density determination, peak hold, pipette adjustment, SQC

Power:
AC adapter input: 100 to 240 VAC 0.6A 50/60 Hz

Stabilization Time:
0.1 mg = 0.3 seconds; 0.01 mg = 8 second

Min-Weight:
20.0 mg fine range (USP, u=0.10%, k=2)

Calibration:
AutoCal™ at 1.5 °C temperature change, 11 hours and external calibration

Temperature:
Operating:
14 °F to 86 °F (-10 °C to 30 °C)

Est. Weight:
25 lb (12.5 kg)

Warranty:
Two-year limited

Return Policy:
OHAUS standard policy - restock fee may apply

Model  Capacity Readability Repeatability
(20 g) std		 Repeatability
(100 g) std		 Linearity Pan Size Dimensions Part #

EX125D/AD

82 g/120 g

0.01 mg / 0.1 mg

±0.015 mg

0.1 mg

±0.1 mg

3.1 in
(80 mm)

9 × 15.4 × 13.8 in
(230 × 393 × 350 mm)

233253

EX125/AD

120 g

0.01 mg

±0.015 mg

0.02 mg

±0.1 mg

3.1 in
(80 mm)

9 × 15.4 × 13.8 in
(230 × 393 × 350 mm)

233254

EX225D

120 g/220 g

0.01 mg / 0.1 mg

±0.015 mg

0.01 mg /0.1 mg

±0.1 mg

3.1 in
(80 mm)

9 × 15.4 × 13.8 in
(230 × 393 × 350 mm)

233255

EX225D/AD

120 g / 220 g

0.01 mg / 0.1 mg

±0.015 mg

0.01 mg /0.1 mg

±0.1 mg

3.1 in
(80 mm)

9 × 15.4 × 13.8 in
(230 × 393 × 350 mm)

233256



Resources/Downloads

Title Version Revision Download Email Category Archived
OHAUS Explorer Semi-Micro Balance Instruction Manual Download Email Precision Balances No

Title Collateral Wizard Request Download Email Category
OHAUS Explorer Semi-Micro Balance Download Email Balances

Parts

Part # Description List Price Cart/Quote
233253 Balance,Ohaus EXP125D/AD Semi-Micro Explorer, 82g/120g x 0.01 mg/0.1mg, 120-240 VAC AC Adapter, US power cord

List Price: $9,224.00
233254 Balance,Ohaus EXP125/AD Semi-micro Explorer, 120 g x 0.01 mg, 120-240VAC AC adapter, US Power Cord

List Price: $9,225.00
233255 Balance,Ohaus EXP225/AD Semi-micro Explorer, 120 g/220 g x 0.01/0.1 mg, 120-240VAC AC Adapter, US Power Cord

List Price: $13,675.00
233256 Balance,Ohaus EXP225D/AD Semi-micro Explorer, 120 g/220 g x 0.01/0.1 mg, 120-240VAC AC Adapter, US Power Cord

List Price: $11,140.00

Options

Part # Description List Price Cart/Quote
233257 Balance OPT,Cable 9-Pin Serial Ext

List Price: $236.00
156235 Plug Set,Intl Ohaus Kit PN 46001780 Includes 46001766 US Plug - Valor 2000, PA, PX, EX, Defender Series (Kit includes plugs for EU, AU, UK) Add ASAP for US plug

List Price: $45.00
