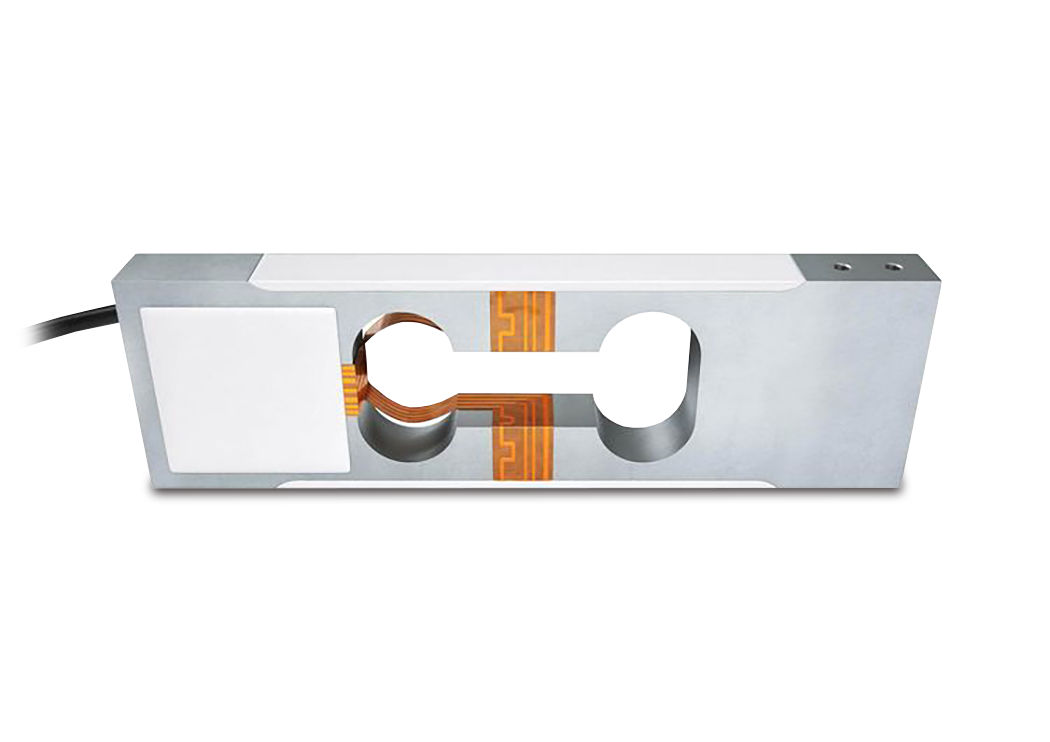

Flintec® PA3 Aluminum, Single Point Load Cell

Full Scale Output:
1 mV/V

Output Resistance:
350 (± 10) ohm

Input Resistance:
409 (± 15) ohm

Material Finish:
Aluminum

Temperature:
Compensated:
14 °F to 104 °F (-10 °C to 40 °C)
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP66

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC

Combined Error:
± 0.05% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
0.5 m

Cable Jacket:
PVC

Color Code:
Green +Excitation
Black -Excitation
White +Signal
Red -Signal
Yellow Shield

Max Platform Size:
200 × 200 mm

Warranty:
One-year limited
