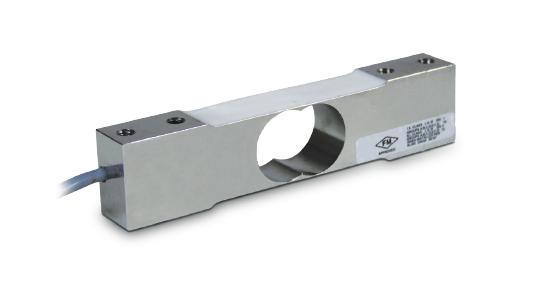

Flintec® PC3 Stainless Steel, Single Point Load Cell

A stainless steel, single point load cell. Has an IP67 rating and is environmentally sealed, making it ideal for harsh environments, Capacities range from 7 to 150 kg. Complete with 10 ft of load cell cable.

Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

WARNING: Cancer and Reproductive Harm California Proposition 65

Portals 0 Products 2C3dfd8d372a43b483d3d8dc8037eb56 Orig

HD View

PC3 Load Cell Specifications

Full Scale Output:
2 mV/V

Output Resistance:
350 (± 10) ohm

Input Resistance:
385 (± 15) ohm

Material Finish:
Stainless Steel

Temperature:
Compensated:
14 °F to 104 °F (-10 °C to 40 °C)
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally Sealed, IP67

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC

Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
10 ft

Cable Diameter:
0.140 in
Polyurethane jacket

Color Code:
Green +Excitation
Black -Excitation
White +Signal
Red -Signal
Yellow Shield

Max Platform Size:
7 to 30 kg: 350 × 350 mm
60 to 150 kg: 450 × 450 mm

Warranty:
One-year limited

Approvals:
NTEP
OIML
FM

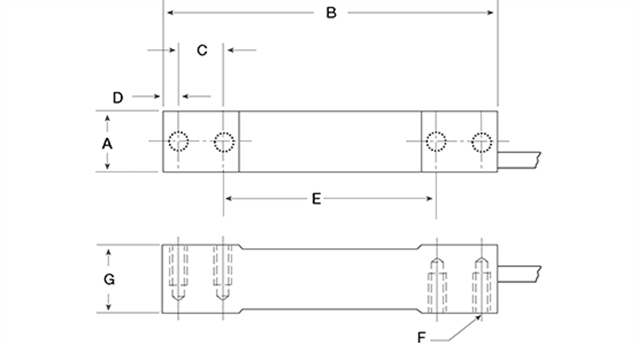

PC3 Load Cell Dimensions

Rated Capacity	A	B	C	D	E	F	G
kg/mm
7 to 10	18.2	140.0	19.0	6.4	88.9	1/4-20 UNC	30.0
30 to 60	24.5	140.0	19.0	6.4	88.9	1/4-20 UNC	30.0
100 to 150	30.8	140.0	22.4	7.8	79.3	3/8-16 UNC	30.0

Resources/Downloads

Catalogs

Title	Download	Email
Flintec PC3 Load Cell Catalog Page	Download	Email

Manuals

Title	Version	Revision	Download	Email	Category	Archived
Load Cell and Weigh Module Handbook		D	Download	Email	Load Cells\|Weigh Modules	No

Sales Literature

Title	Collateral Wizard	Request	Download	Email	Category
Load Cell and Weigh Module Selection Guide		Request	Download	Email	Load Cells\|Weigh Modules

White Papers

Title	Download	Email	Category
Choosing Load Cells for Tough Applications	Download	Email	Load Cells

Parts

Part #	Description	List Price	Cart/Quote
202686	Load Cell, SPT Flintec PC3-7kg 10ft 2 mv/v 350 Ohm EW NTEP III 3S C3 SST IP67 FM OIML C3	List Price: $328.00	View
202687	Load Cell, SPT Flintec PC3-10kg 10ft 2 mv/v 350 Ohm EW NTEP III 3S C3 SST IP67 FM OIML C3	List Price: $328.00	View
202688	Load Cell, SPT Flintec PC3-30kg 10ft 2 mv/v 350 Ohm EW NTEP III 3S C3 SST IP67 FM OIML C3	List Price: $328.00	View
202689	Load Cell, SPT Flintec PC3-60kg 10ft 2 mv/v 350 Ohm EW NTEP III 3S C3 SST IP67 FM OIML C3	List Price: $328.00	View
202690	Load Cell, SPT Flintec PC3-100kg 10ft 2 mv/v 350 Ohm EW NTEP III 3S C3 SST IP67 FM OIML C3	List Price: $328.00	View
202691	Load Cell, SPT Flintec PC3-150kg 10ft 2 mv/v 350 Ohm EW NTEP III 3S C3 SST IP67 FM OIML C3	List Price: $328.00	View
