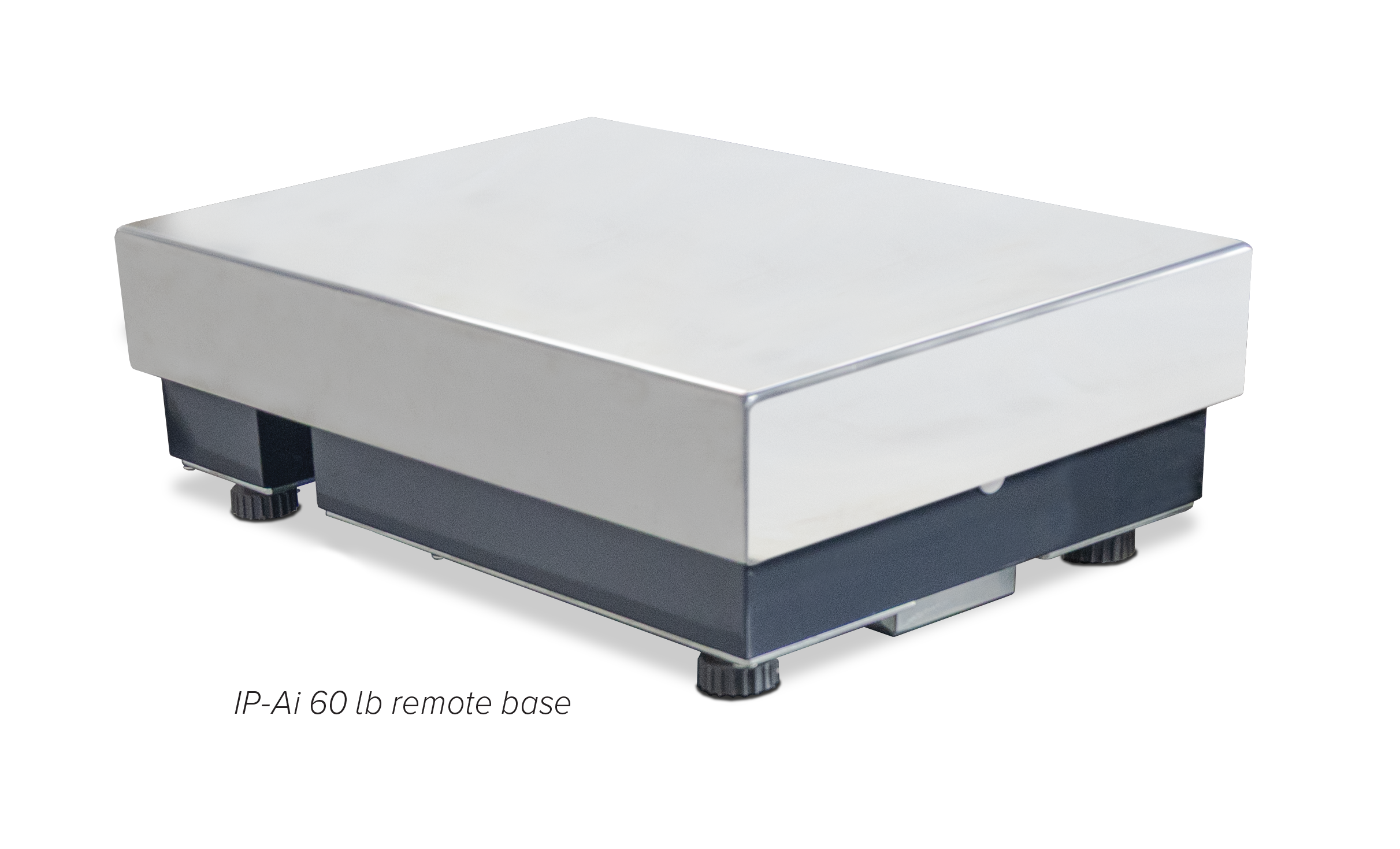

Ishida IP-Ai Label Printer with Remote Scale Base

  • Packing House features (i.e., build a pallet)
  • High-capacity label roll with 5.6× the length of a standard roll

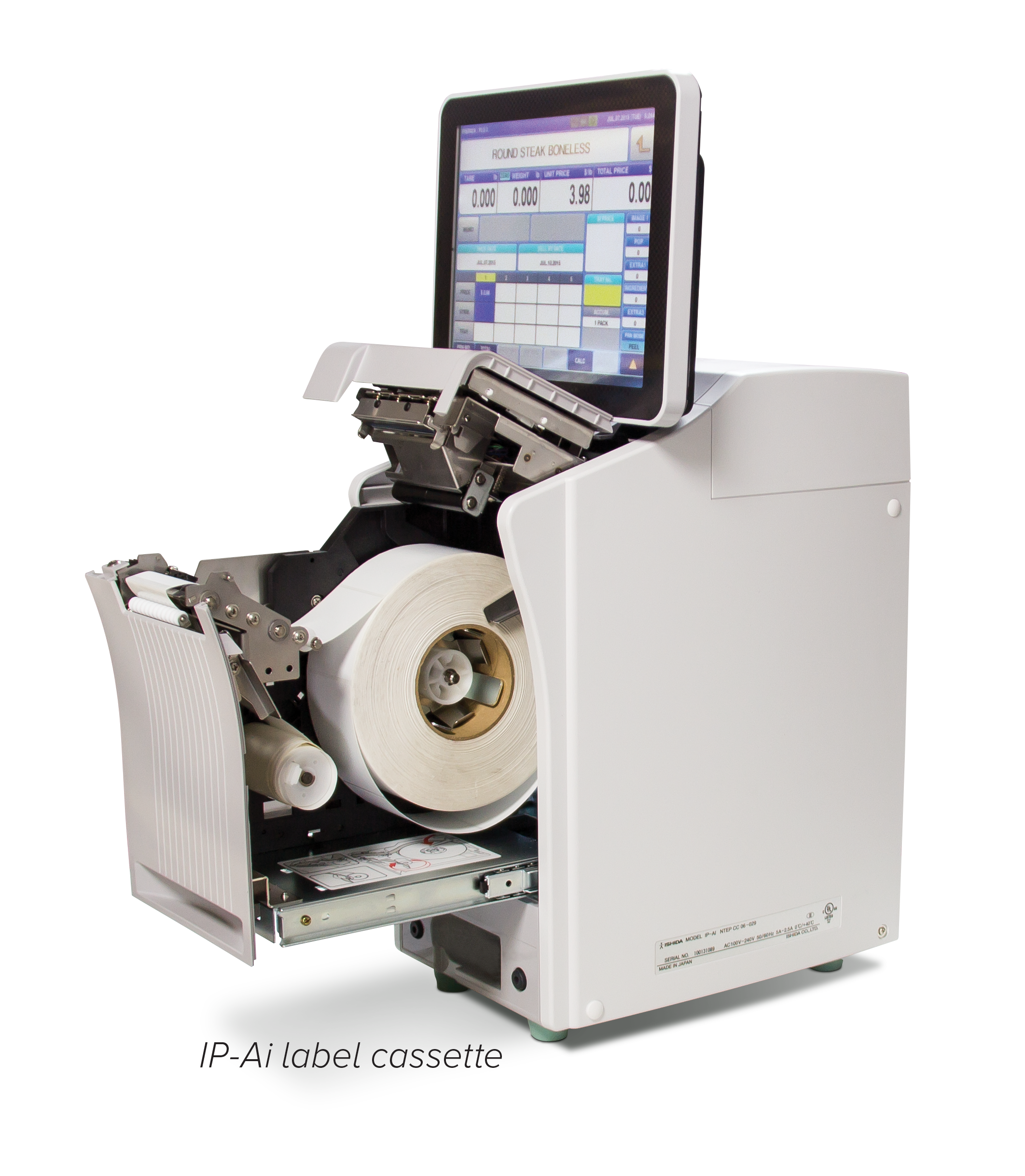

  • Fixed high-capacity front load cassette with virtual function
  • High resolution printhead prints safe handing instructions, country of origin, 2020 nutrition, custom text messages, custom images and more
  • Batch printing
  • Graphic based QR code printing
  • Large customizable color touch screen with adjustable viewing angle and tactile keypad
  • Assign color images to presets keys
  • Display videos with sound on operator display
  • PC-based with a solid-state drive for speed and reliability
  • Secured remote access
  • Fully compliant with RoHS regulations for a completely lead-free machine
  • Wi-Fi kit (PN 219408) (factory installation recommended)
  • Compatible with third-party software, including Upshop 360®, ADC's InterScale®, Invafresh’s ePlum®, Toast®, Square® and Droste®
Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo UL_Listed_C-US

WARNING: Cancer and Reproductive Harm California Proposition 65
Hdimage(1)

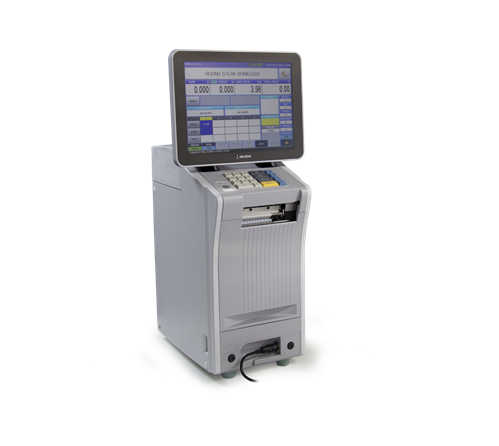

Premier Performance with Ishida’s Hand-wrapping System

Ishida’s IP-Ai PC-based hand-wrapping system is the ideal complement to high-volume automatic wrappers. The IP-Ai is capable of fast weighing and print speeds up to 5.9 inches per second. Its front-loading, large nine-inch label capacity keeps businesses up and running longer. Create eye-catching labels with the ability to store and print custom graphics.

Designed to enhance visibility and productivity, the large color touchscreen provides easy access to PLUs via category keys. Networking capability with Ishida’s ScaleLink Pro 5 and other third-party scale management software helps maintain consistent and accurate pricing.

From ergonomic design to high-speed performance, the IP-Ai offers the latest technology to streamline prepackaging operations.

Power:
110 to 120 VAC, 50/60 Hz

Power Consumption:
In operation: 120 W
Stand-by: 50 W

Resolution:
30 lb base, 3,000 display divisions maximum
60 lb base, 6,000 display divisions maximum

Communications:
LAN
Static/DHCP
Optional Wi-Fi 802.11a/b/g/n/ac -2.4GHz/5GHz
Security: WEP/WPA/WPA2

Input/Output:
LAN × 1
USB × 4 (service, transaction data)
SD card × 1 (for transaction data, 16GB max)

Operating System:
Linux

Memory Capacity:
SSB 2 GB

Preset Keys:
99 dynamically programmed groups with 99 sub pages
19 tactile function keys

Display:
Operator: Resistive thin film analogue touch panel, TFT LCD color touchscreen with LED backlight with SVGA
12.1 inch (800 × 600 pixels)
Unit Price: six digits
Tare: four digits
Weight: five digits
Total Price: eight digits

Printer:
Print Head: 3.1 inch (80 mm) direct thermal, effective 3 inch (78mm)
Dots/inch: 300 dpi (12 dot/mm)
Speed: 5.9 in/sec (150 mm/sec) max
Min Weight: 30 lb, 0.015 lb (0.006 kg) 60 lb, 0.03 lb (0.015kg)
Formats: 999 customizable label formats
Barcode: JAN, EAN, EAN128, CODE128, UPC, ITF, GS1, Custom

Label Size:
Type: die-cut
Width: 1.5 to 3.1 in (38 to 80 mm)
Length: 1.2 to 7.9 in (30 to 200 mm)

Label Roll:
I.D.: 3.0 in (76 mm) min
O.D.: 9.0 in (230 mm) max
Backing Width: 3.2 in (82 mm) max

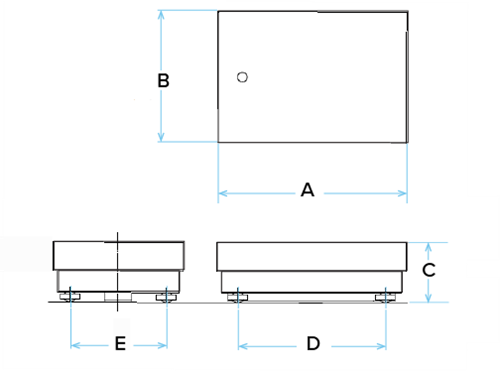

Platter:
30 lb: 16 x 10 inch (406 x 254 mm)
60 lb: 15.5 x 10.5 inch (394 x 267  mm)

Weight:
Approx. 55 lb (25 kg)

Temperature:
Operating: 23 °F to 104 °F (-5 °C to 40°C)

Humidity:
20% to 85% (without condensation)

Warranty:
One-year limited

Approvals:
NTEP 06-029
cULus Listed

Resources/Downloads

Title Download Email
Ishida IP-Ai Wrapping System Catalog Page Download Email

Title Version Revision Download Email Category Archived
Ishida IP-Ai Cleaning, Sanitizing and Inspection Instructions A Download Email Retail Equipment|Wrappers No

Title Download Email
IP-Ai Main Body Frame Unit Replacement Parts Catalog Page Download Email
IP-Ai Base Unit Replacement Parts Catalog Page Download Email
IP-Ai Printer Unit Replacement Parts Catalog Page Download Email
IP-Ai Head Unit Replacement Parts Catalog Page Download Email
IP-Ai Keyboard Unit Replacement Parts Catalog Page Download Email
IP-Ai Cassette Unit Replacement Parts Catalog Page Download Email
IP-Ai Display Unit Replacement Parts Catalog Page Download Email
IP-Ai Scale Unit, 30 lb Replacement Parts Catalog Page Download Email
IP-Ai Scale Unit, 60 lb Replacement Parts Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
IP-Ai Hand Wrapping System Request Download Email Retail Equipment|Price Computing Scales|Wrappers
Retail Systems Literature Request Download Email Retail Accessories|Retail Equipment|Retail Labelers

Parts

Part # Description List Price Cart/Quote
220065 Retail Scale, IP-Ai, S Ver., CFast, Pre Pack, Hand wrap, 9 inch OD label support 15x0.005-30x0.01lb, 115VAC, Ishida

Consult
220066 Retail Scale, IP-Ai S Ver. CFast, Pre Pack, Hand wrap, 9 inch OD label support 60x0.01lb, 115VAC, Ishida

Consult

Options

Part # Description List Price Cart/Quote
47670 Retail Scale OPT,Base Unit Scalemate 27 Deep x 23 Wide x 32 High Scale Shelf 36 inch Overall Height 2 Roll 18 in Max Roll Size 750 Watt 6 x 15 in Heat Pad w/Cover 115 VAC 12ft Power Cord Ishida

Consult
47672 Retail Scale OPT,Wrap Station Wing Left, SM20ES, 200ES, 14 x 22 in, (Scalemate Hand Wrap Station), Heat Seal, Ishida

Consult
102933 Wrap Station,Right Wing w/o Hood 14 x 34 SST, With Support Leg

Consult
104948 Mounting kit, Handwrap station, Uni-7RP, Uni-9RP 60lb, Uni-3RP, Ishida

Consult
178842 Shelf Assembly, Hand Wrapping Station, IP-Ai, Ishida

Consult
155176 Option,UNI-7 RP POP Label Dispenser with Mounting Hardware for ScaleMate

Consult
151761 Option, Spacer POP label dispenser, Set of 10, Ishida, use for wider core POP labels

List Price: $30.00
53866 Non-Stick Cover,PTFE, Teflon, 6x15, Sealing Plate, (Scalemate Hand Wrap Station), Ishida

Consult
98400 Option,10 Key Cover Clear Membrane Self Adhesive Tenkey SOLD PER EACH OMNi-4000 IP-EMZ WM-4000, WM-Ai, WM-Micro, IP-Ai, IP-Ai-P Ishida

List Price: $66.00
174110 Card, SD 2GB Uni-7, WM-Ai, IP-Ai Ishida

Consult
186485 Base Plate Stabalizer Roll over protection base for IP-AI-P, SST

Consult
160906 USB Memory, Stick 1G Hagiwara, UDG4-1GDRJS, Ishida

Consult
