Ishida Uni-10 Series PC Based Price Computing Scale with Printer and Color Touchscreen

  • Customizable color touchscreen
  • Top seller (scheduled/real-time)
  • Time stamp for data credibility
  • 2020 nutrition labeling
  • Color printer connectivity
  • Secured remote access
  • Calendar entry for quick data change
  • Video functions
  • DHCP connectivity
  • Dynamic search
  • Flexible bar code structures
  • Multi-department
  • OS security maintenance
  • Filter for third-party driver communication
  • Flexible and expanded preset key layout
  • Adjustable customer side message
  • Logo checking field
  • Self-service mode is available for bench or pole model

Options/Accessories

  • Additional label cassette



Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo UL_Listed_C-US

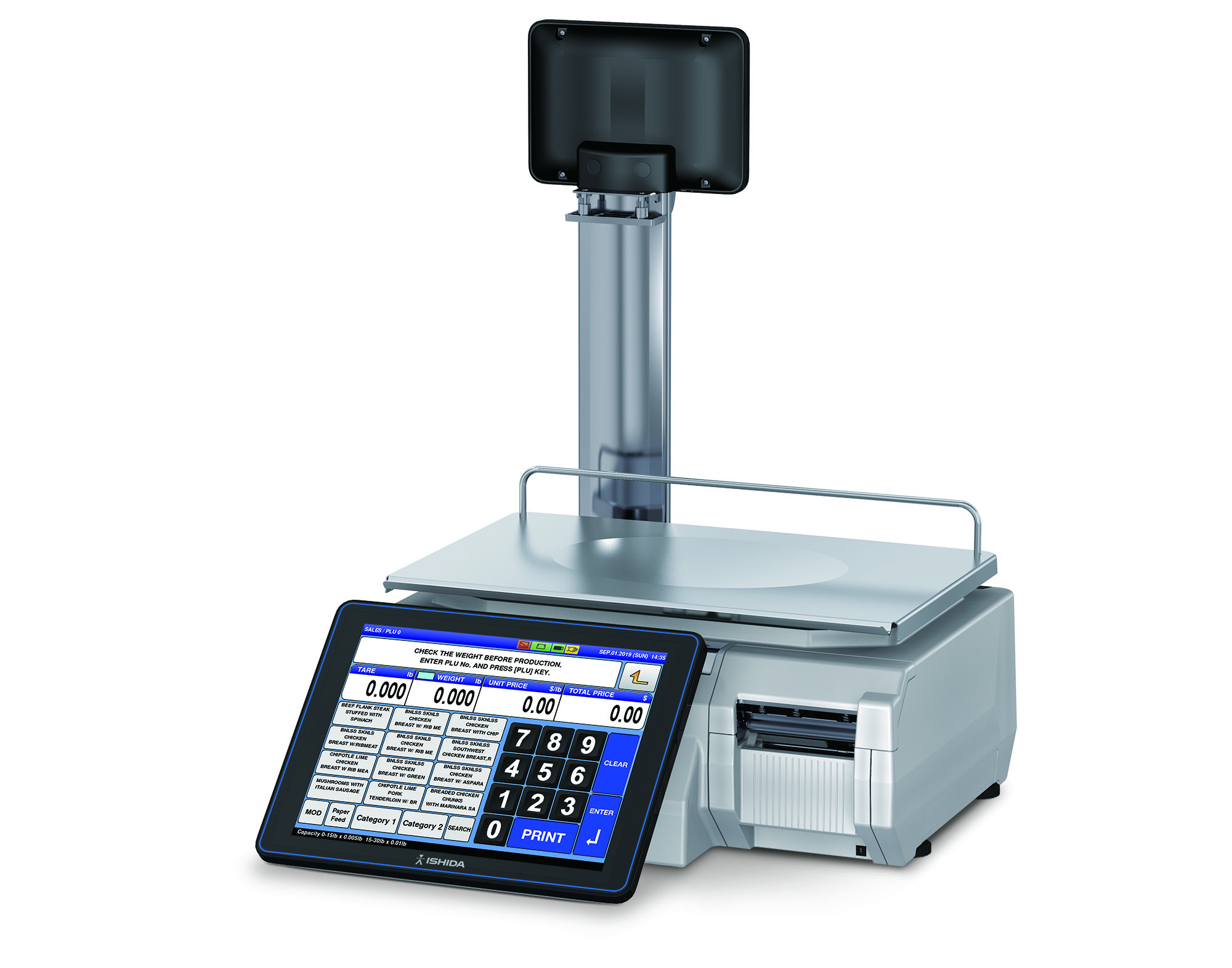

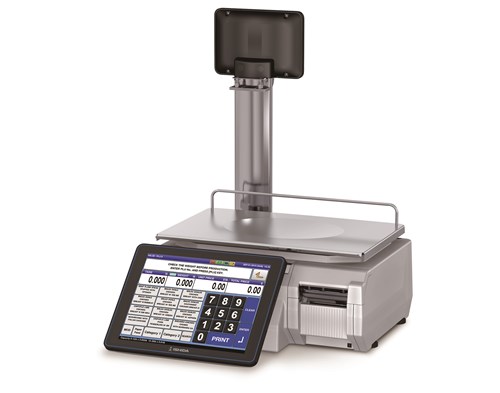

WEB Uni 10 Pole

A Price Computing Scale with Simple and Efficient Operation

The Ishida Uni-10 retail scale provides flexibility and features to ensure you have complete control. Grocery stores require employees to wear gloves when directly handling food. The Uni-10’s resistive touch panel provides control for operators wearing gloves without sacrificing durability. The scale’s control panel has a flat design, making it easy to clean and sanitize. The Uni-10 has a 12.1-inch operator display for more visibility and to view larger graphics.

With a 5-inch label roll capacity, the front-load label cassette allows operators to easily change labels in a comfortable position, making it easy to quickly load labels, even during busy times. The Uni-10 is compliant with the latest nutrition label requirements. According to the FDA, new labels reflect current scientific evidence leading to a healthier lifestyle.

Power:
100 to 240 VAC ±10%, 50/60 Hz

Power Consumption:
Stand-by: 50 W
In operation: 120 W

Resolution:
12 dot/mm (300 dpi)

Communication:
TCP/IP, USB 4-channel, 2.4/5 GHz Wi-Fi plus Ethernet port, Lan 1-channel ethernet, RS-485

Bar Code Type:
JAN, EAN, EAN128, CODE128, UPC, ITF, GS1, QR code

Operating System:
Linux

Display:
Operator: 12.1 in LCD (1,024 × 768 pixel)
Customer: 7 in LCD (800 × 480 pixel)

Display Items:
Tare: Four digits
Unit price: Six digits
Weight: Five digits
Total price: Six digits

Display Systems:
Resistive thin film type analogue touch panel

Buttons/Keys:
1980: 20 × 99 pages

Platter:
16.5 × 10.4 in
(420 × 263 mm)

Temperature:
Operating: 32 ­°F to 104 °F (0 °C to 40 °C)

Cassette:
Front-load, removable label cassette

Print Head:
Direct thermal 3.1 in (80 mm)

Printing Speed:
Max: 4.7 in per second
(120 mm per second)

Printing Width:
Max: 3.1 in (78 mm)

Printing Length:
Max: 11.8 in (300 mm)

Media Type:
Die-cut label, continuous label, receipt

Label Size:
Width: 1.2 to 3.1 in (30 to 80 mm) (+2 mm with backing paper)
Length: 0.79 to 11.8 in (20 to 300 mm)

Label Roll:
OD: 5.0 in (125 mm) or less
ID: 1.5 in (40 ±1 mm)

Label Backing Paper:
Width: Up to 3.1 in (80 mm)

Approvals:
NTEP 22-014
cULus

Warranty:
One-year limited

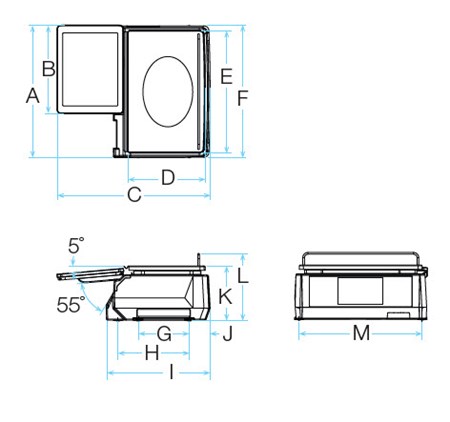

Dimensions
A 17.8 in (453 mm) F 17.7 in (450 mm) J 2.8 in (72 mm)
B 11.9 in (303 mm) G 6.9 in (174 mm) K 7.4 in (188 mm)
C 20.6 in (523 mm) H 9.6 in (243 mm) L 9.1 in (231 mm)
D 10.4 in (263 mm) I 14.0 in (355 mm) M 16.5 in (420 mm)
E 16.5 in (420 mm)

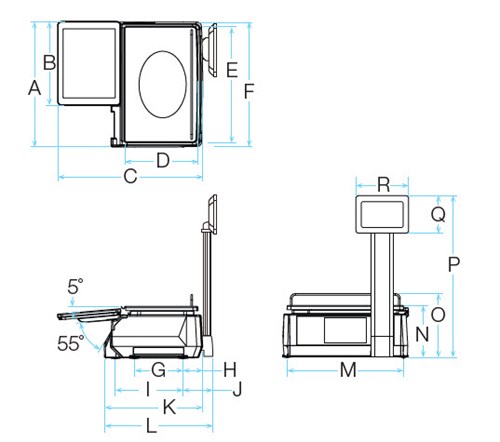

Dimensions
A 17.8 in (453 mm) G 17.7 in (450 mm) M 16.5 in (420 mm)
B 11.9 in (303 mm) H 6.9 in (174 mm) N 7.4 in (188 mm)
C 22.7 in (576 mm) I 9.6 in (243 mm) O 9.1 in (231 mm)
D 10.4 in (263 mm) J 14.0 in (355 mm) P 23.1 in (586 mm)
E 16.5 in (420 mm) K 14.0 in (355 mm) Q 5.4 in (136 mm)
F 17.7 in (450 mm) L 15.5 in (394 mm) R 7.6 in (192 mm)

Resources/Downloads

Title Download Email
Ishida Uni-10 Catalog Page Download Email

Title Version Revision Download Email Category Archived
Ishida Uni-10 User Manual A Download Email No

Title Download Email
Ishida Uni-10 Replacement Parts Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
Ishida Uni-10 Series Request Download Email Retail Equipment

Title Version Size Release Date Download Email
VNC Viewer for Remote Connection - RealVNC ver. 6.19.325 6.19.325 7.4 MB 04/15/2019 Download Email

Title View Download Email Category
Use the Uni-10 Price Computing Scale to Optimize Retail Spaces View Download Email Retail Equipment|Price Computing Scales

Parts

Part # Description List Price Cart/Quote
220028 Retail Scale, Uni-10 Bench, 2.4/5Ghz WiFi, 12.1 inch operator screen, PC based 15x0.005/30x0.01lb 115VAC Ishida

Consult
223573 Retail Scale, Uni-10 Pole, 2.4/5Ghz WiFi, 12.1 inch operator screen, PC based 15x0.005/30x0.01lb 115VAC Ishida

Consult

Options

Options/Accessories

Part # Description List Price Cart/Quote
46916 Retail Scale OPT,Produce Platter 11-1/2 in Deep x 17 in Wide Ishida

Consult
46917 Retail Scale OPT,Fish Platter 11-1/2 in Deep x 17 in Wide Ishida

Consult
220610 DT continuous label 80MM perm adhesive, 1 5/8 core, 125mm max OD, 3000IN per Roll

Consult

Communication

Manuals and Service Tools

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.

Related Products

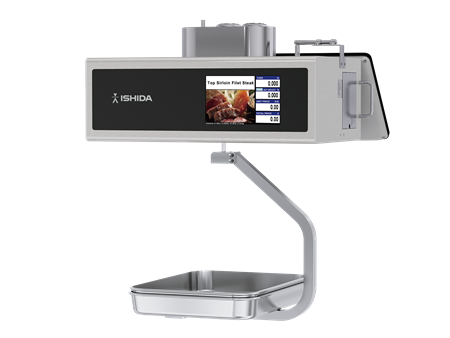

WEB Uni 10 Hanging
