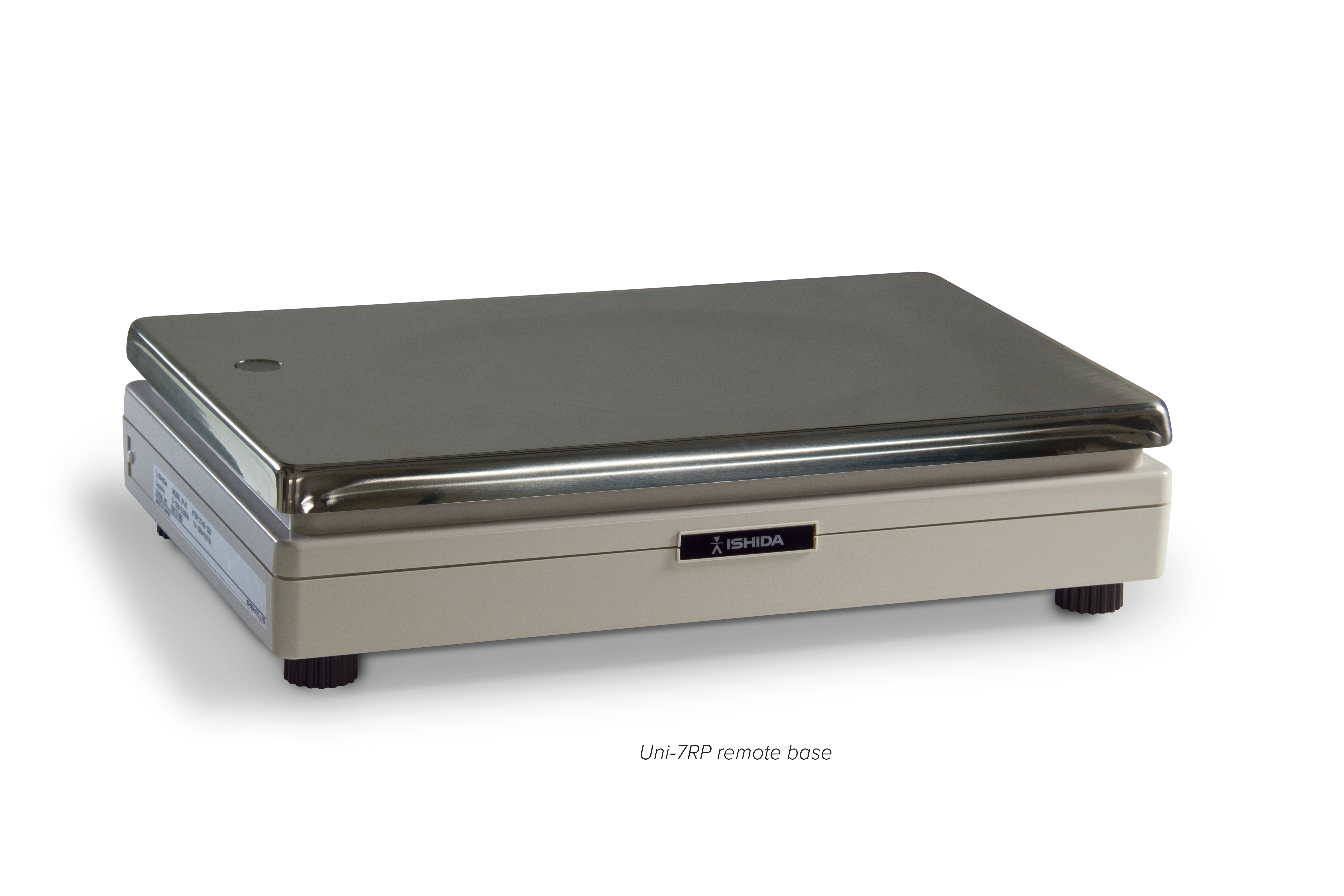

Ishida Uni-7RP Remote Scale Base

Power:
100 to 240 VAC, 50/60Hz

Power Consumption:
In operation: 100W
Stand-by: 50W

Resolution:
3,000 display divisions maximum

Communications:
LAN
Optional Wi-Fi 802.11a/b/g/n/ac -2.4 GHz/5GHz
Security: WEP/WPA/WPA2

Input/Output:
LAN × 1
USB × 1 (service, transaction data)
RS-485 x 2
SD card x 1 (expanded storage, 8GB max)

Operating System:
VxWorks

Memory Capacity:
Flash ROM 4MB expandable to 2GB

Preset Keys:
99 programmable pages, 20 PLUs each
60 programmable tactile preset keys
24 tactile function keys

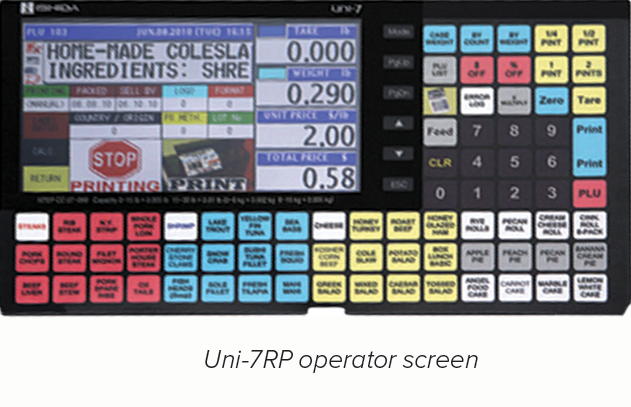

Display:
Operator: touch panel, color 7-inch LCD
Unit Price: six digits
Tare: four digits
Weight: five digits
Total Price: eight digits

Printer:
Print Head: 2.2 inch (56 mm) direct thermal, effective 2.2 inch (56 mm)
Dots/inch: 200 dpi (8 dot/mm)
Speed: 4.7 inch/sec (120 mm/sec) max
Min. Weight: 0.015 lb (0.006 kg)
Formats: 0.015 lb (0.006 kg)
Barcodes: JAN, EAN, EAN128, CODE128, UPC, ITF, GS1, Custom

Label Size:
Type: Die-cut, continuous
Width: 1.2 to 2.5 in (30 to 64 mm)
Length: 0.8 to 7.9 in (20 to 200 mm)

Label Roll:
I.D.: 1.6-inch (40 mm) min
O.D.: 3.9-inch (100mm) max
Backing width: 2.6-inch (66 mm) max

Platter:
15.5 × 9.5 in (394 × 241 mm)

Weight:
Approx. 33 lb (15 kg)

Temperature:
Operating: 32 °F to 104 °F (0 °C to 40 °C

Humidity:
20% to 85% RH (without condensation)

Warranty:
One-year limited

Approvals:
NTEP 07-099
cULus Listed
