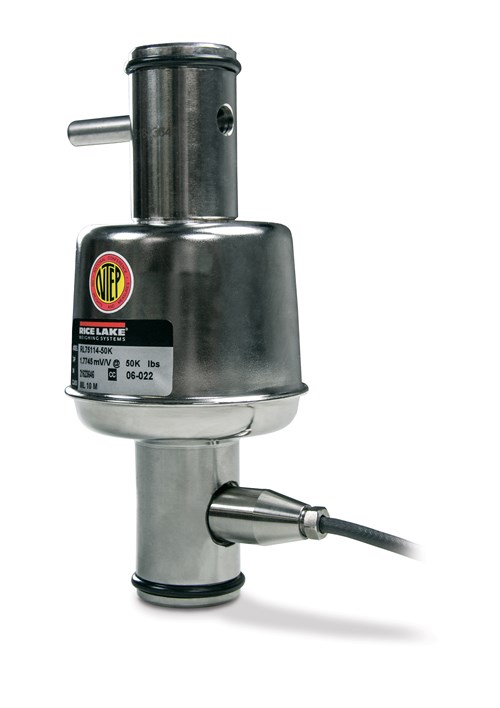

Rice Lake RL75114-50K Stainless Steel, Rocker Column Load Cell

Stainless steel, hermetically sealed rocker column designed to interchange with the Fairbanks part number 64166. Comes with 30 ft of overbraid cable to protect it from abrasion and pests. NTEP Certified.

Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65
Portals 0 Products 6F70a18a2a8743da850b49b36c550586 Orig
360 Image

 Full Scale Output:
1.8 mV/V nominal

Output Resistance:
1,000 (±10) ohm

Input Resistance:
1,000 ohm

Material/Finish:
Stainless steel

Temperature:
Compensated:
14 °F to 104 °F (-10 °C to 40 °C)
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Welded-seal, IP67

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC

Combined Error:
0.025% full scale

Non-repeatability:
0.01% full scale

Insulation Resistance:
1,000 megohm

Cable Length:
30 ft

Cable Diameter:
0.200 in overbraid cable

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal

Warranty:
Two-year limited

Approvals:
NTEP 06-022
cFMus

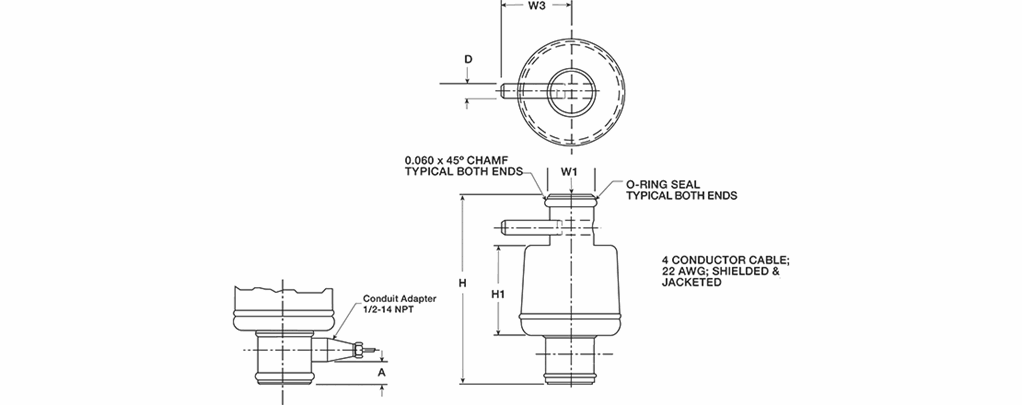

Rated Capacity A D H H1 W1 W3
lb/in
50,000 LE 0.87 0.38 7.56 2.82 1.46 2.18





Resources/Downloads

Parts

Part # Description List Price Cart/Quote
88074 Load Cell,CSR RL75114-50K 50,000lb 30FT 1.8 mv/v 1000 Ohm EW SST HS NTEP IIIL 10M overbraid cable.

List Price: $1,450.00
