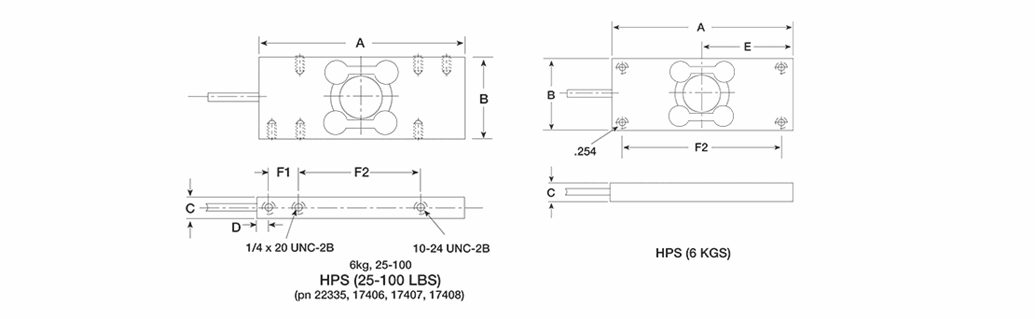

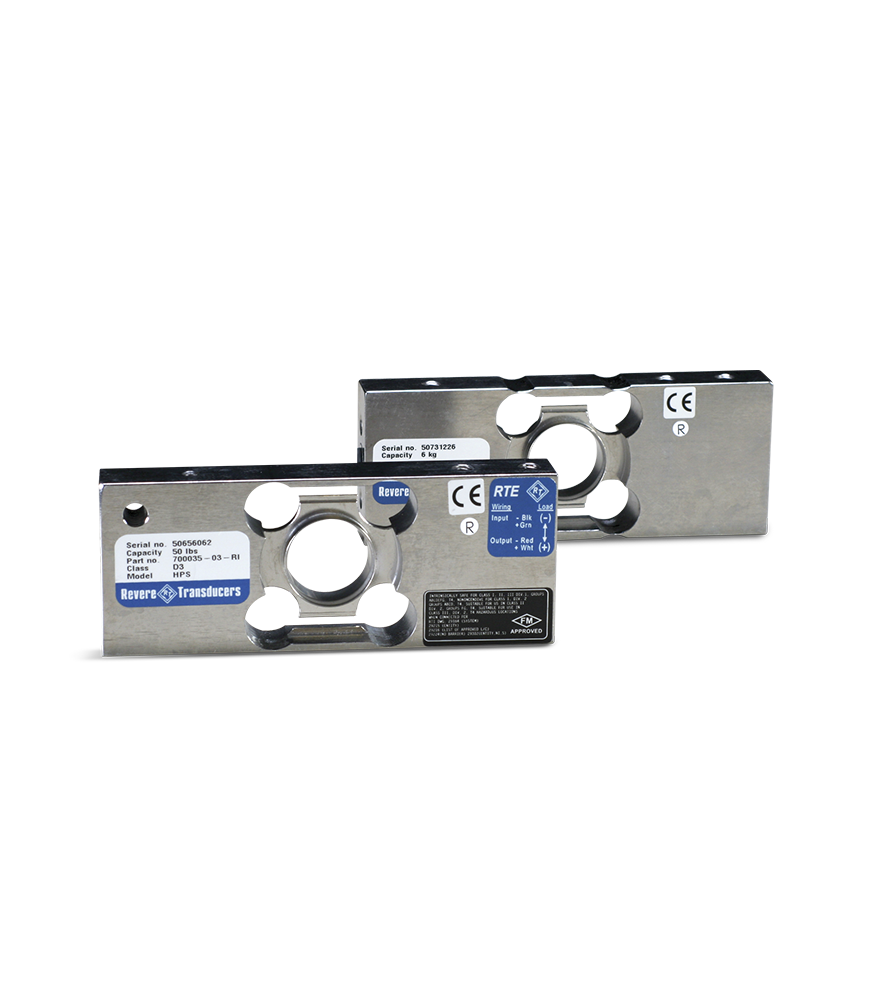

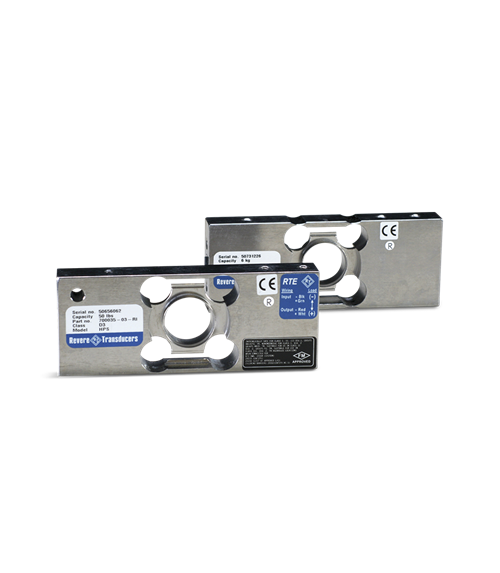

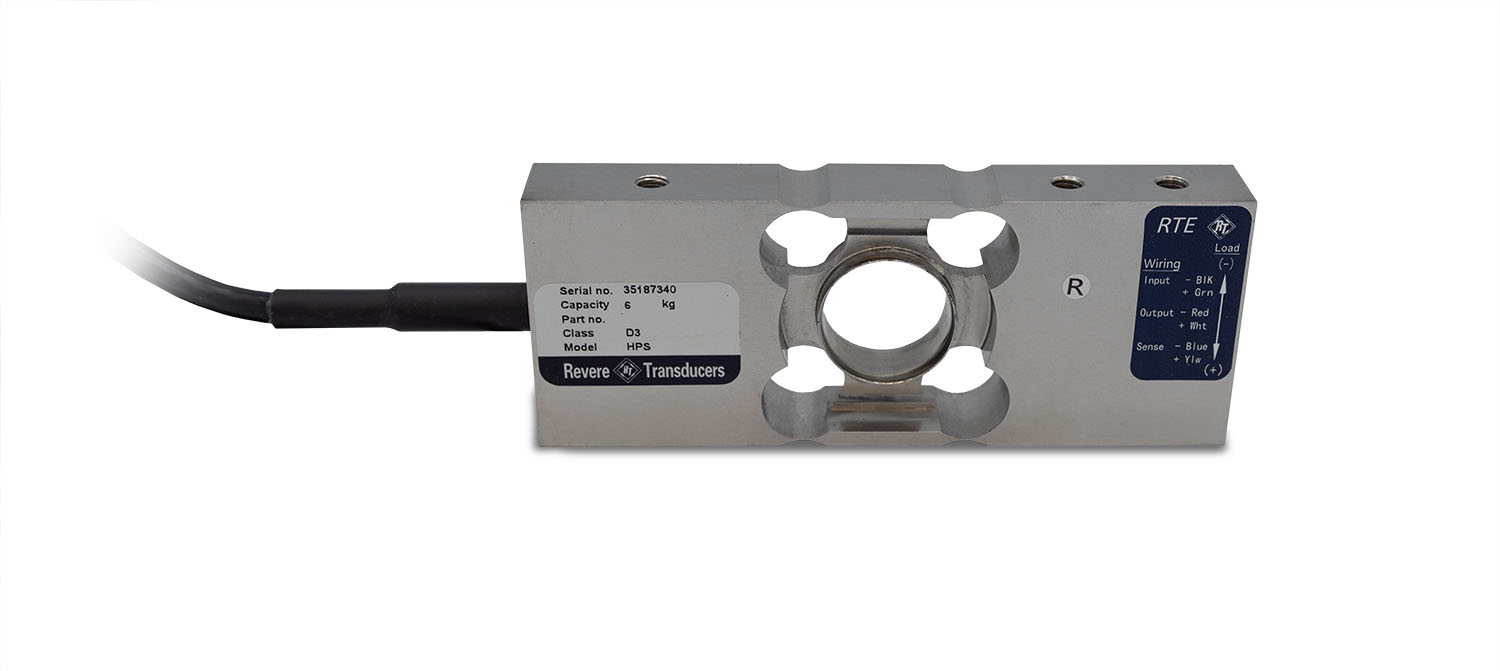

VPG® Revere HPS Stainless Steel, Single Point Load Cell

Full Scale Output:
25 to 100 lb: 3.0 mV/V
6 kg: 2.0 mV/V

Output Resistance:
350 (± 7) ohm

Input Resistance:
400 (± 6) ohm

Material/Finish:
Stainless steel

Temperature:
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Welded-seal, IP67

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VAC (15 V maximum)

Combined Error:
0.03% full scale

Non-repeatability:
0.01% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
10 ft

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal

Warranty:
One-year limited

Approvals:
cFMus
