Wire Rope Assemblies
Wire rope assemblies provide better alignment and greatly increase load cell repeatability. In addition, they act as natural vibration dampeners.

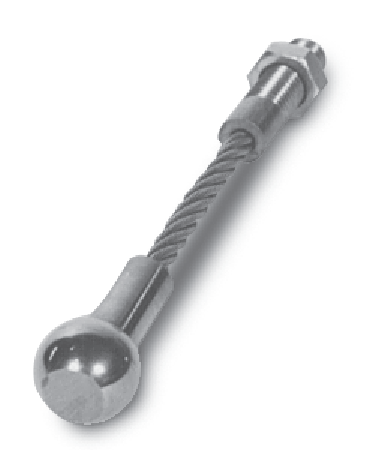

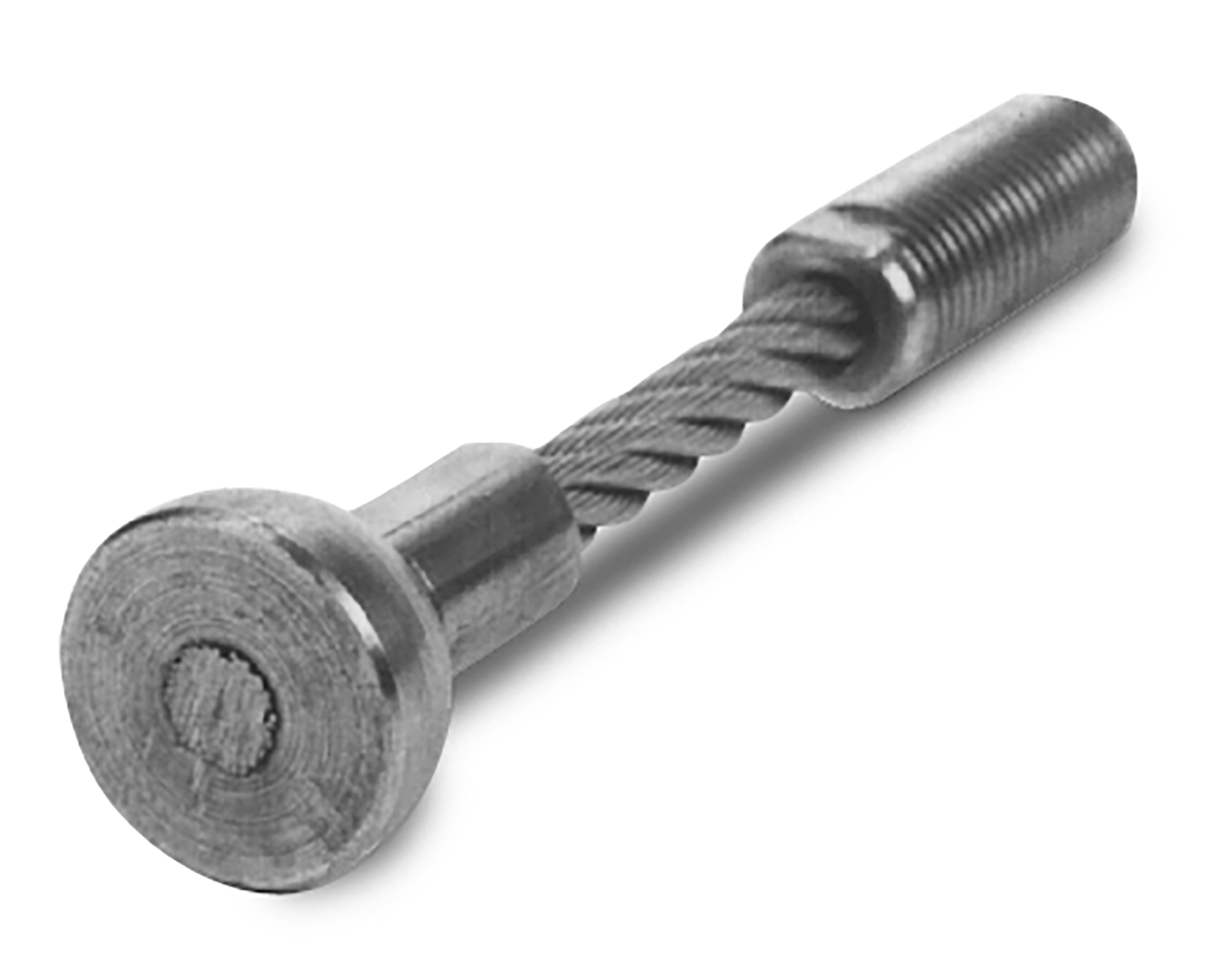

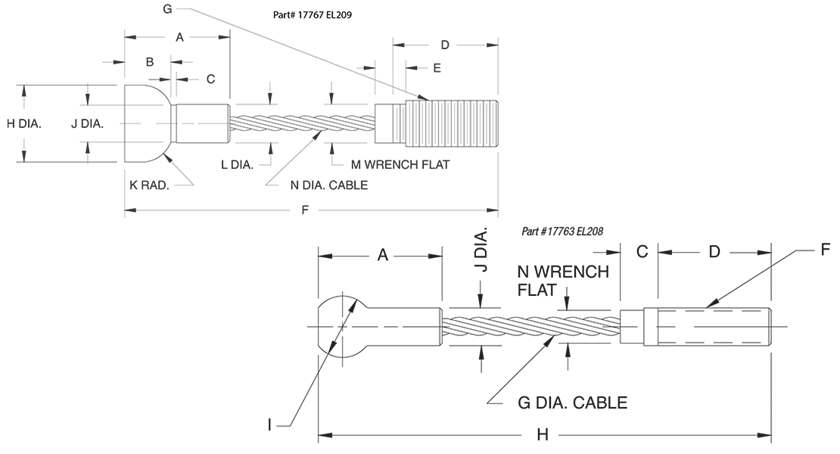

Cardinal Wire Rope Assemblies
EL208 Cardinal wire rope assembly: Used on 7,500 lb capacity FH model and 8,000 lb capacity EP model
EL209 Cardinal wire rope assembly: Used on 20,000 lb capacity FH and EP models. May also be used on 15,000 lb capacity FH and EP models

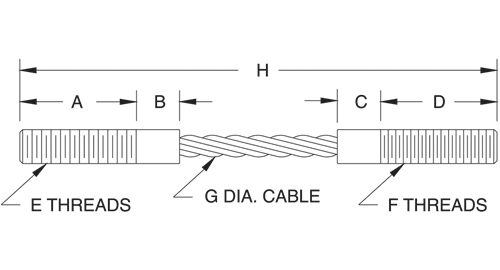

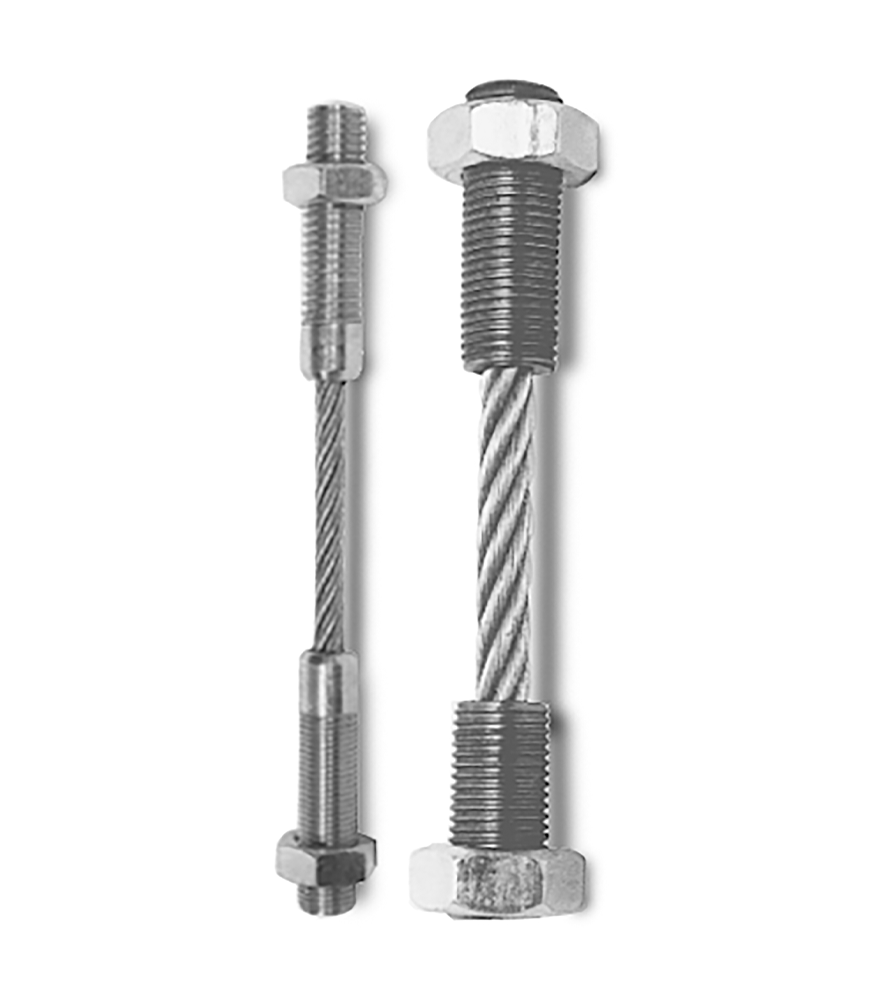

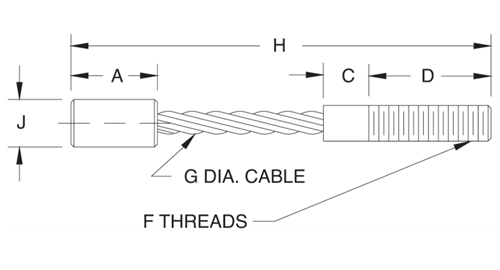

Custom Wire Ropes
When ordering, please complete the Custom Wire Rope Definition form, provide a sample if possible, and specify the required tension rating and total capacity
Wire ropes should not be exposed to shock loads, chemicals or twisting. Chains or rods should be used as a safety backup in case of catastrophic failure.
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 17760 | Wire Rope,1/4-20NCx1/4-28 NFx4L 400 lb Steel Galvanized Jam Nut INCL | List Price: $58.00 | |
| 17762 | Wire Rope,3/8-16NCx3/8-24 NFx5L 850 lb Steel Galvanized Jam Nut INCL | List Price: $64.00 | |
| 17766 | Wire Rope,1/2-13NCx1/2-20 NFx6-1/2L 1,400 lb Steel Galvanized Jam Nut INCL | List Price: $66.00 | |
| 17765 | Wire Rope,1/2-13NCx1/2-20 NFx5-1/2L 1,400 lb Steel Galvanized Jam Nut INCL | List Price: $79.00 | |
| 17764 | Wire Rope,1/2-20NFx1/2-20 NFx4L 1,400 lb Electro Scale Steel Galvanized Jam Nut INCL | List Price: $95.00 | |
| 17768 | Wire Rope,3/8-24NFx3/8-24 NFx5-1/2L 400 lb Steel Galvanized Jam Nut INCL | List Price: $143.00 | |
| 17769 | Wire Rope,1/4-28NFx1/4-28 NFx3L 400 lb RLWS FB Steel Galvanized Jam Nut INCL | List Price: $159.00 | |
| 17771 | Wire Rope,1/2-20NFx1/2-20 NFx3L 1,400 lb RLWS FB Steel Galvanized Jam Nut INCL | List Price: $69.00 | |
| 115292 | Wire Rope,1/4-28NFx1/4-28 NF x 3L 350lb RLWS FB stainless steel Jam nut incl | List Price: $111.00 | |
| 33084 | Wire Rope,1/2-20NFx1/2-20 NFx3-5/8 Long SST Jam Nuts Included | List Price: $87.00 |
