Rice Lake RLHBB Stainless Steel, Single-Ended Beam Load Cell

Stainless steel construction, hermetic sealing and polyurethane shielded cable enable the RLHBB to function in harsh environments while maintaining its operating specifications. Suitable for low-profile platforms, weighing and packing machines, electromechanical conversions and general-purpose weighing applications. OIML C3-certified capacities range from 5 kg to 500 kg. Complete with 3 m (9.8 ft) of load cell cable.

Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo OIML Logo LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65
Portals 0 Products 665B1711c1994937bfa5f65e738005a2 Orig

Full Scale Output:
2.0 mV/V

Output Resistance:
355 (± 5) ohm

Input Resistance:
380 (± 10) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated range:
14°F to 104°F/-10°C to 40°C
Operating range:
0°F to 150°F/-18°C to 65°C

Seal Type:
Hermetically sealed, IP68

Safe Overload:
150% full scale

Rated Excitation:
5-10 VDC (15V maximum)

Combined Error:
0.02% full scale

Insulation Resistance:
2,000 megohms

Deflection at Capacity:
5 kg-500 kg=0.4 mm (0.015 in)

Cable Length:
3 m (9.8 ft)

Cable Diameter:
0.220 polyurethane jacket

Cable Color Code:
Blue +Excitation
Black –Excitation
White +Signal
Red –Signal
Green +Sense
Grey –Sense

Warranty:
Two-year limited warranty

Approvals:
cFMus
NTEP
OIML

Rated Capacity A B C D E F G H J K M N
kg/mm
5-500 120.0 40.0 23.0 32.0 20.5 45.5 10.0 82.0 18.0 20.0 20.0 8.20





Resources/Downloads

Parts

OIML

Part # Description List Price Cart/Quote
32678 Load Cell,CLB RLHBB-C3- 5kg 3M 2mV/V 350 OHM OIML-C3 SST HS IP66/68 FM

Consult
31260 Load Cell,SEB RLHBB-C3- 50kg 50kg 3m 2mV/V 350 OHM OIML-C3 SST HS IP66/68 FM

Consult
31262 Load Cell,SEB RLHBB-C3- 200kg 200kg 3m 2mV/V 350 OHM OIML-C3 SST HS IP66/68 FM

Consult
31263 Load Cell,SEB RLHBB-C3- 250kg 250kg 3m 2mV/V 350 OHM OIML-C3 SST HS IP66/68 FM

Consult

Related Products

rl-RL9018SS-load-cell

Rice Lake RL9018SS Stainless Steel, Single-Ended Beam Load Cell

The Rice Lake RL9018SS is a stainless steel, single-ended beam load cell that is hermetically sealed with an IP68 rating. It has NTEP approval for capacities from 5 kg to 500 kg. Each load cell comes with 3 m of cable.

rl-HBM-Z6-load-cell

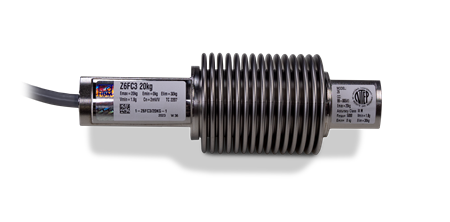

HBK® Z6 Stainless Steel, Single-Ended Beam Load Cell
