65059 Mini Tank Weigh Module Kit, VPG® Sensortronics®
Complete Kit Includes
- Three or four neoprene isolation/compression mounts with load cells. (1,000 to 2,500 lb are NTEP Certified)
- 50 to 250 lb mild steel: 60040
- 500 lb mild steel: 65023-500-0107
- 1,000 to 2,500 lb mild steel: 65023A1K-5107
- 500 lb stainless steel: 65023-500-0113
- 1,000 to 2,500 lb stainless steel: 65023S1K-5113
- One JB4SS NEMA Type 4X stainless steel signal trim junction box
- 25 ft of hostile environment EL147HE SURVIVOR® load cell cable
Standard Features
- Zinc plated, mild steel modules
- Lower weighing ranges from 50 to 500 lb per module
- Environmentally protected load cells
- 1,000 to 2,500 lb capacities are NTEP Certified
- Neoprene isolation/compression mounts allow for minor misalignment, thermal expansion and shock absorption
- Overload stop for 500 lb modules provides durability
Applications
- Small tanks and hoppers
- Conveyor/In-motion weighing
- Small platform scales where minor shock loading may occur
Approvals
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
65059 Mini Tank Weighing Module, VPG Sensortronics
The 65059 mild steel single weigh module kit provides a cost-effective alternative for your customers’ low-range weighing needs using VPG Sensortronics load cells. Ideal for various indoor weighing applications where checking requirements are low, this kit utilizes Rice Lake's high-quality mounts and environmentally protected load cells to create a mini tank weighing module with outstanding performance.
65059 Mini Tank Weighing Module Dimensions
50 to 250 lb
500 lb
1,000 lb
2,000 to 2,500 lb
| Rated Capacity | C | C1 | H | H1 | L | L1 | L2 | W | W1 | W2 | W3 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| lb/in | |||||||||||
| 50 to 250 | 0.34 | - | 3.13 | 0.50 | 4.00 | 3.25 | 2.38 | 3.88 | 3.00 | 2.25 | - |
| 500 | 0.44 | 0.56 | 3.88 | 0.50 | 6.00 | 4.00 | 3.38 | 5.50 | 4.00 | 3.00 | 4.13 |
| 1,000 | 0.44 | - | 4.00 | 0.50 | 6.00 | 4.00 | 3.00 | 5.13 | 4.00 | 3.00 | 4.13 |
| 2,000 to 2,500 | 0.44 | 0.56 | 4.00 | 0.50 | 6.00 | 4.00 | 4.62 | 6.25 | 4.00 | 3.00 | 5.00 |
Resources/Downloads
Manuals
| Title | Version | Revision | Download | Category | Archived | |
|---|---|---|---|---|---|---|
| Load Cell and Weigh Module Handbook | D | Download |  Email |
Load Cells|Weigh Modules | No | |
| (Archived) RL50210TA/65059 Load Cell Mounting Kit Installation Guide Rev B | B | Download | Email |
Weigh Modules|Rice Lake Weigh Modules|VPG Sensortronics Weigh Modules | Yes |
Parts
Mild Steel Single Module (Includes Load Cell)
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 17825 | Mount ASSY,65059-50 50 lb Mild Steel Zinc Plated Compression INCL 60040-50 lb |
List Price: $470.00 |
|
| 17826 | Mount ASSY,65059-100 100 lb Mild Steel Zinc Plated Compression INCL 60040-100 lb |
List Price: $470.00 |
|
| 17827 | Mount ASSY,65059-150 150 lb Mild Steel Zinc Plated Compression INCL 60040-150 lb |
List Price: $470.00 |
|
| 17828 | Mount ASSY,65059-250 250 lb Mild Steel Zinc Plated Compression INCL 60040-250 lb |
List Price: $470.00 |
|
| 17829 | Mount ASSY,65059-500 500 lb Mild Steel Zinc Plated Compression INCL 65023-500-0107 |
List Price: $625.00 |
|
| 17830 | Mount ASSY,65059-1K 1,000 lb Mild Steel Zinc Plated Compression INCL 65023-1K |
List Price: $625.00 |
|
| 17946 | Mount ASSY,65059-2K 2,000 lb Mild Steel Zinc Plated Compression INCL 65023-2,000 lb |
List Price: $625.00 |
|
| 17947 | Mount ASSY,65059-2.5K 2,500 lb Mild Steel Zinc Plated Compression INCL 65023-2,500 lb |
List Price: $625.00 |
Mild Steel 3-Module Kit
Mild Steel 4-Module Kit
Stainless Steel Single Module (Includes Load Cell)
Stainless Steel 3-Module Kit
Stainless Steel 4-Module Kit
Replacement Parts
Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.
To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
Related Products
RL50210TA Mini Tank Weigh Module Kit
The RL50210TA weigh module kit provides a cost-effective alternative for low-range weighing needs in various indoor weighing applications.
VPG® Sensortronics® 65023A Alloy Steel, Single-ended Beam Load Cell
The VPG Sensortronics 65023 alloy steel, single-ended shear beam load cell is designed for low-profile floor scales and is environmentally protected with stainless steel side plates.

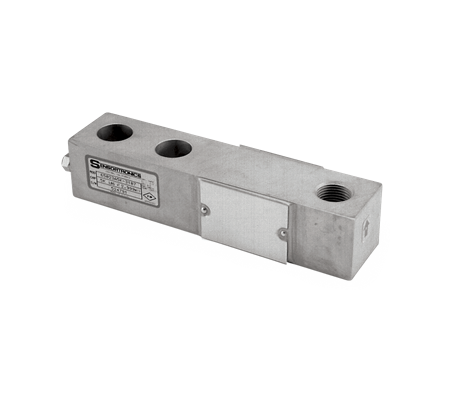

VPG® Sensortronics® 65023A-5107-10 Alloy Steel, Single-ended Beam Load Cell
