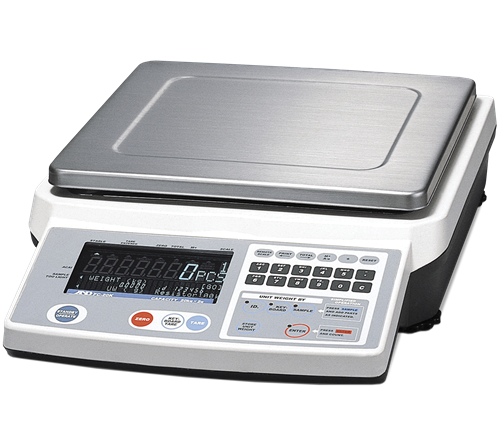

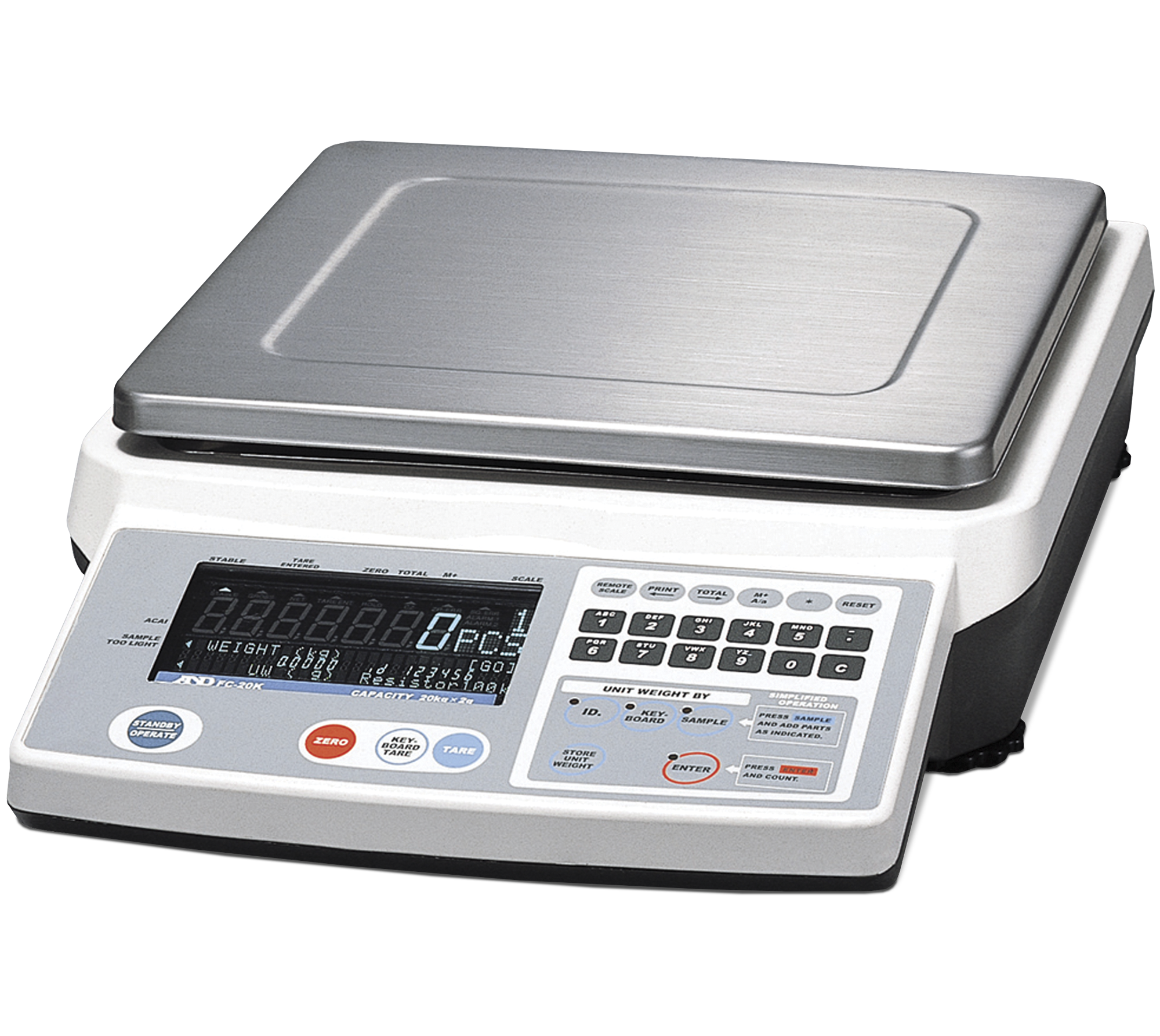

A&D® FC-i/Si Series Counting Scale

  • 500 ID memory storage
  • LED keypad prompting for intuitive operator use
  • Automatic Counting Accuracy Improvement (ACAI)
  • Display function - Hi/OK/Lo
  • Rugged aluminum die-cast frame with splash-proof display and keyboard

Options

  • Remote scale

Internal Resolution:
Si Series: 1/5,000,000
FC-i Series: 1/1,000,000

Display:
Vacuum fluorescent display (VFD)
Seven segment

Power Source (included):
110 VAC 50/60 Hz AC adapter
230 VAC 50/60 Hz AC adapter

Minimum Sample Unit Weight:
500 si - 0.0001 g, 5000 si - 0.001 g
500 si - 0.0005 g, 1000 i - 0.001 g
2000 i - 0.002 g, 5000 i - 0.005 g
10 Ki - 0.01 g, 20 Ki - 0.02 g
50 Ki - 0.05 g

Memory Items:
500 ID - six-digit ID, unit weight, tare weight, comparator limits, accumulator and 12-digit ID name

Weight Sensor:
Si - Super hybrid sensor (SHS)
FC-i - Strain gauge load cell

Operating Temperature:
Si: 41 ºF to 104 ºF (5 ºC to 40 ºC)
FC-i: 14 ºF to 104 ºF (-10 ºC to 40 ºC)

Dimensions:
(L × W × H)
13.0 × 18.2 × 4.6 in
(330 × 462 × 117 mm)

Warranty:
Two-year limited

Resources / Downloads

Title View Email Category Type
It's What's Inside That Counts View Email Articles

Title Download Email
A&D FC-i/Si Series Catalog Page Download Email

Title Version Revision Download Email Category Archived
A&D Weighing FC-i/Si Series Instruction Manual Download Email Counting Scales No

Title Collateral Wizard Request Download Email Category
A&D Weighing FC-i/Si Series Download Email Platform Scales|Counting Scales

Parts

Part # Description List Price Cart
108351 Scales,Counting FC-500Si 1lb x .00005lb (with Breeze Break), 5 x 5IN pan size

List Price: $1,800.00

108352 Scales,Counting FC-5000Si 10lb x .0005lb, 6.5 x 6.5IN pan size

List Price: $1,800.00

108353 Scales,Counting FC-1000i 2lb x 0.0002lb, 8 x 6in pan

List Price: $1,320.00

108354 Scales,Counting FC-2000i 5lb x .0005lb, 8 x 6IN pan size

List Price: $1,320.00

108355 Scales,Counting FC-5000i 10lb x .001lb, 8 x 6IN pan size

List Price: $1,320.00

108356 Scales,Counting FC-10Ki 20lb x .002lb, 11.8 x 11IN pan size

List Price: $1,320.00

108357 Scales,Counting FC-20Ki 50lb x .005lb, 11.8 x 11IN pan size

List Price: $1,320.00

108358 Scales,Counting FC-50Ki 100lb x .01lb, 11.8 x 11IN pan size

List Price: $1,320.00

Options

Part # Description List Price Cart
108360 Connection,Remote FC-05i For FCi counting scales

List Price: $149.00

97613 Balance OPT,AC Adapter TB:636, 120V 15 VDC 1000mA Negative A&D FC, FC-i, FC-Si, GP, HF, SV-10/100, SV-A, FR, FP, HA, HX Models

List Price: $44.00

97631 Balance,AC Adapter TB:123 A&D

List Price: $52.00

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
