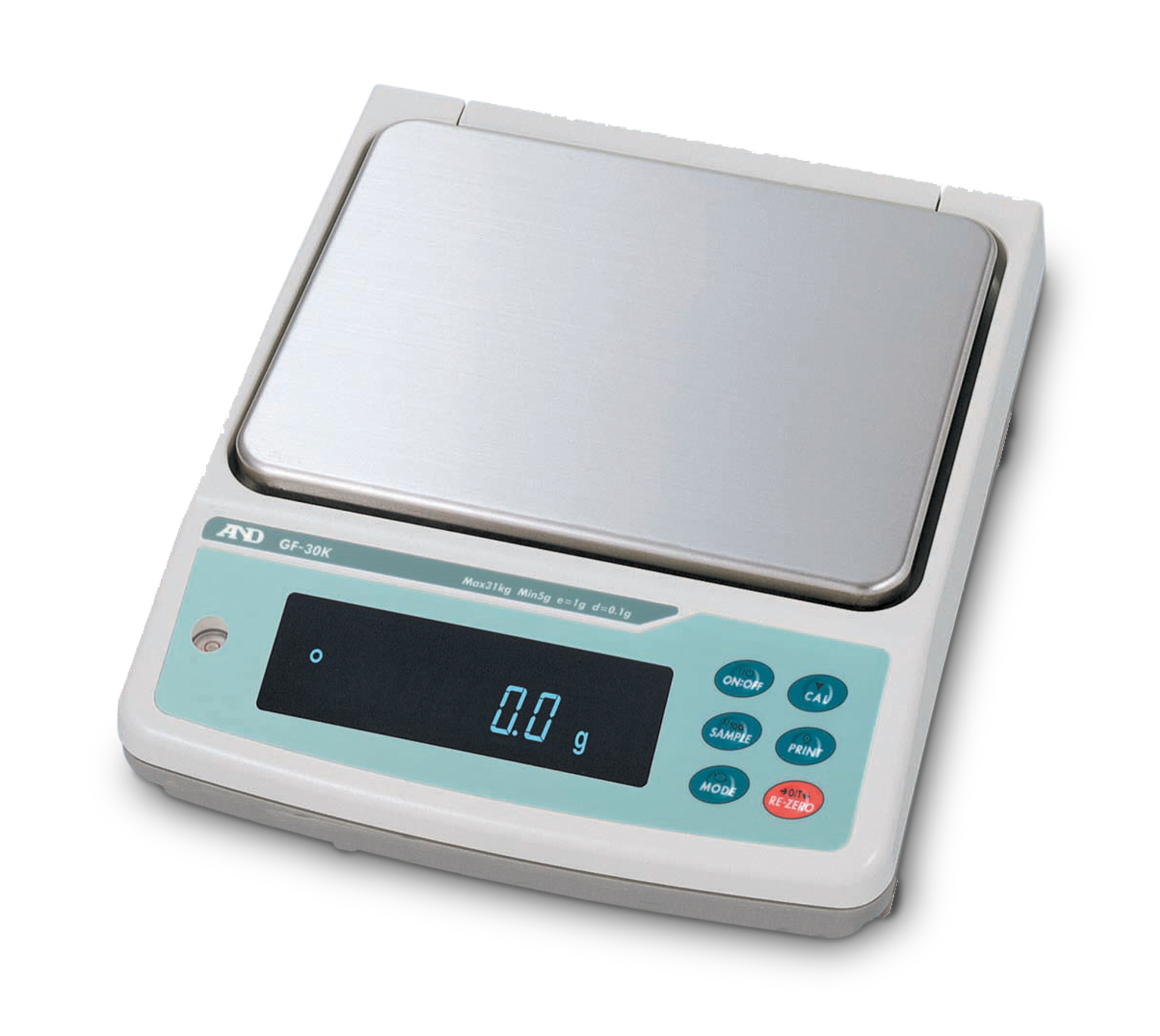

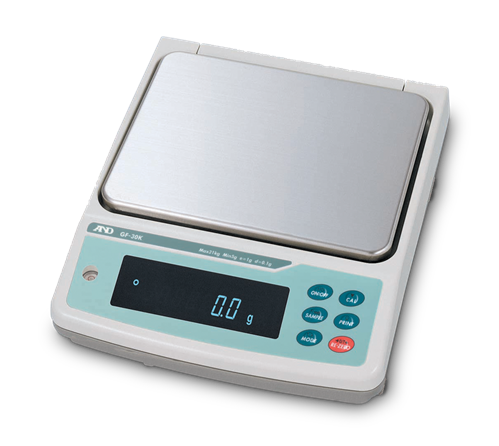

A&D Weighing GF-K Series Precision Balance

  • IP65/NEMA Type 4
  • RS-232 interface for connecting to printer or PC
  • Quick reference operation card
  • Time and date
  • Vacuum fluorescent display (VFD)
  • Interval time setting
  • Underhook weighing

  GF-8K2 GF-8K GF-10K GF-12K
Part # 97792 97793 97794 97795
Capacity 2.1/8.1 kg 8.1 kg 10.1 kg 12 kg
Resolution 0.01/0.1 g 0.01 g 0.01 g 0.1 g
Operating Modes Counting, Percentage
Repeatability 0.01 g 0.05 g/0.01 g 0.01 g 0.1 g
Linearity ±0.1 g/±0.02 g ±0.02 g ±0.03 g ±0.2 g
Stabilization Time Approx. 1.5 seconds (typical in FAST mode)
Sensitivity Drift (10° C-30° C) ±3 ppm/° C ±2 ppm/° C ±2 ppm/° C ±3 ppm/° C
Display Refresh 5 times per second/10 times per second
Operating Temperature 41° F to 104° F (5° C to 40° C) RH less than 85% (No condensation)
Pan Size Stainless steel 10.62 W x 8.26 in D (270 x 210 mm)
Dimensions 11.81 W x 13.98 D x 4.37 in H (300 x 355 x 111 mm)
Weight 18.3 lb (8.3 kg)
External Cal. Mass 2, 3, 4, 5, 6, 7, 8 kg 10 kg 5, 10 kg
Power 120/240 V AC adapter
Warranty Five-year Limited Warranty
Return Policy A&D Weighing Standard Policy - restock fee may apply
UNIT OF MEASURE
Decimal Ounce 285.720 x 0.005/74.0755 x
0.0005 oz
285.7190 x 0.0005 oz 370.4 x 0.0005 oz 423.290 x 0.005 oz
Troy Ounce 260.420 x 0.005/67.5165 x
0.0005 ozt
260.4210 x 0.0005 ozt 337.6 x 0.0005 ozt 385.810 x 0.005 ozt
Pennyweight 5,208.4 x 0.1/1,350.33 x
0.01 dwt
5,208.42 x 0.01 dwt 6751 x 0.01 dwt 7716.2 x 0.1 dwt
Carat 40,500.0 x 0.5/10,500.00 x
0.05 ct
40,500.00 x 0.05 ct 50500 x 0.05 ct 60000 x 0.5 ct
Momme 2,160.00 x 0.05/560.000 x
0.005 mom
2,160.000 x 0.005 mom 2800.000 x 0.005 mom 3200.00 x 0.05 mom
Grain 125,002 x 2/32,408.0 x 0.2 GN 125,002.2 x 0.2 GN 162040 x 0.2 GN 185188 x 2 GN
Pound 17.8575 x 0.0005/4.62970 x
0.00005 lb
17.85745 x 0.00005 lb 23.15 x 0.00005 lb 26.4555 x 0.0005 lb
Pound/Ounce 17 lb x 0.01 oz/4 lb x 0.001 lb 17 lb x 0.001 oz 23 lb x 0.001 oz 26 x 0.01 oz



  GF-20K GF-30K GF-32K
Part # 97796 97797 97798
Capacity 21 kg 31 kg 6.1/31 kg
Resolution 0.1 g 0.1 g 0.1/1 g
Operating Modes Counting, Percentage
Repeatability 0.1 g 0.5 g/0.1 g
Linearity ±0.2 g ±1 g/0.2 g
Stabilization Time Approx. 1.5 seconds (typical in FAST mode)
Sensitivity Drift (10° C-30° C) ±3 ppm/° C ±5 ppm/° C
Display Refresh 5 times per second / 10 times per second
Operating Temperature 41° F to 104° F (5° C to 40° C) RH less than 85% (No condensation)
Pan Size Stainless steel 10.62 W x 8.26 in D (270 x 210 mm)
Dimensions 11.81 W x 13.98 D x 4.37 in H (300 x 355 x 111 mm)
Weight 18.3 lb (8.3 kg)
Ext. Cal. Mass (optional) 10, 20 kg 20, 30 kg
Power 120/240 VAC adapter
Warranty Five-year Limited Warranty
Return Policy A&D Weighing Standard Policy - restock fee may apply
UNIT OF MEASURE
Decimal Ounce 740.755 x 0.005 oz 1093.495 x 0.005 oz 1093.50 x 0.05/215.170 x 0.005 oz
Troy Ounce 675.165 x 0.005 ozt 996.675 x 0.005 ozt 996.65 x 0.05/196.120 x 0.005 ozt
Pennyweight 13503.3 x 0.1 dwt 19933.5 x 0.1 dwt 19933 x 1/3922.4 x 0.1 dwt
Carat 105000.0 x 0.5 ct 155000.0 x 0.5 ct 155000 x 5/30500.0 x 0.5 ct
Momme 5600.00 x 0.05 mom 8266.65 x 0.05 mom 8266.5 x 0.5/1626.65 x 0.05 mom
Grain 324080 x 2 GN 478404 x 2 GN N/A
Pound 46.2970 x 0.0005 lb 68.3435 x 0.0005 lb 68.345 x 0.005/13.4480 x 0.0005 lb
Pound/Ounce 46 lb x 0.01 oz 68 lb x 0.01 oz 68 lb x 0.1 oz/17 lb x 0.01 oz

Resources / Downloads

Title Download Email
GF-K Series Catalog Page Email

Title Version Revision Download Email Category Archived
A&D Weighing GX-K/GF-K Series Instruction Manual Download Email Precision Balances No

Title Collateral Wizard Request Download Email Category
A&D Weighing GF-K/GX-K Series Download Email Balances|Precision Balances

Parts

Part # Description List Price Cart

Options

Part # Description List Price Cart
97782 Balance,Accessory, A&D GX-04K, Comparator Output & RS-232C/20ma Interface

List Price: $380.00

97783 Balance,Accessory, A&D GX-06K, Analog Output/20mA Interface

List Price: $866.00

97784 Balance,Accessory, A&D GX-07K, Waterproof Cable For Standard RS-232C

List Price: $321.00

102899 Option,Balance, A&D GXK-12 Animal Weighing Pan for all GX-K and GF-K models

List Price: $861.00

102898 Option,Balance, A&D GXK-31 Draft Shield For all GX-K and GF-K models

List Price: $120.00

97605 Balance OPT,Anti Theft Device A&D AD-100-2

List Price: $77.00

97785 Balance,Accessory, A&D AX:073007197A, Protective In-Use Cover

List Price: $22.00

151247 Data Logger,AD-1688 3 Cables (1 m) 9-pin, 25-pin, 7-pin connectors, to USB, Time & Date, 5000 memory storage

List Price: $320.00

196128 Printer,A&D AD-8127 Dot Matrix, Statistical, Includes Power Supply and Serial Cable. GLP/GMP/GCP/ISO Compliant.

List Price: $890.00
