FX-i Series, A&D Weighing Precision Balance

  • Compact Super Hybrid Sensor Technology (SHS)
  • Vacuum Fluorescent Display (VFD)
  • GLP/GMP/ISO compliant to either AD-8121 printer or computer. Transmits date, time, ID number, serial number and calibration data
  • RS-232 interface for connecting to printer or PC
  • Response indicator function
  • Weighing chamber
  • Underhook weighing

Options:

  • Built-in rechargeable battery
  • Quick USB interface (FXi-02) option
  • LAN-Ethernet interface
  • WinCT© communication tools software
  • Note: FXi NTEP and FXi models available by special order (internal calibration)

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO Measurementcanada Approved BW

WARNING: Cancer and Reproductive Harm California Proposition 65

Weighing Units
Pound, Carat, Pennyweight, Troy Ouce, Grain, Pound/Ounce (See technical manual for
complete listings)

Operating Modes
Weigh, Count, Percent, Animal Weighing, Statistical, Hold and Comparator

Power Consumption
120/240 V AC adapter, approx. 11 VA

Stabilization Time
Approx. 1 second

Sensitivity Drift (10° C to 30° C)
±2 ppm/° C

Display Refresh Rate
5 times/second, 10 times/second or 20 times/second

Calibration Weight
FX-120i: 100 g
FX-200i: 200 g
FX-300i: 300 g

Operating Temperature
41° F to 104° F (5° C to 40° C) 85% RH or less
(no condensation)

Est. Weight
8 lb (3.5 kg)

Warranty
Five-year limited warranty

Return Policy
A&D Weighing Standard Policy -
restock fee may apply

Model  Capacity Readability Repeatability Linearity Pan Size Dimensions Part #

FX-120i

122 g

0.001 g

0.001 g

±0.002 g

130 mm
(5.12 in)

7.6 x 10.3 x 3.3 in
(193 x 263 x 84.5 mm)

98021

FX-200i

220 g

0.001 g

0.001 g

±0.002 g

130 mm
(5.12 in)

7.6 x 10.3 x 3.3 in
(193 x 263 x 84.5 mm)

98022

FX-300i

320 g

0.001 g

0.001 g

±0.002 g

130 mm
(5.12 in)

7.6 x 10.3 x 3.3 in
(193 x 263 x 84.5 mm)

98023

Resources / Downloads

Title Download Email
A&D Weighing FX-i Series Legal-for-Trade Balance, Catalog Page Download Email

Title Version Revision Download Email Category Archived
A&D Weighing FX-i Series Precision Balance Instruction Manual Download Email Precision Balances No

Title Collateral Wizard Request Download Email Category
A&D Weighing FX-i Series Download Email Balances|Precision Balances

Parts

Part # Description List Price Cart
98021 Balance,A&D FX-120i Toploader, 122g x 0.001g, 120V adapter

List Price: $1,085.00

98022 Balance,A&D FX-200i Toploader, 220g x 0.001g, 120V adapter

List Price: $1,145.00

98023 Balance,A&D FX-300i Toploader, 320g x 0.001g, 120V adapter

List Price: $1,195.00

Options

Part # Description List Price Cart
98027 Balance OPT,Quick USB Interface A&D FXi-02

List Price: $91.00

98028 Balance OPT,Ethernet Interface With WinCT-Plus Software A&D FXi-08

List Price: $299.00

98029 Balance OPT,Built In Rechargable Battery A&D FXi-09

List Price: $335.00

98030 Balance OPT,Small Breeze Break A&D FXi-10

List Price: $81.00

98031 Balance OPT,Large Breeze Break A&D FXi-11

List Price: $135.00

151247 Data Logger,AD-1688 3 Cables (1 m) 9-pin, 25-pin, 7-pin connectors, to USB, Time & Date, 5000 memory storage

List Price: $320.00

196128 Printer,A&D AD-8127 Dot Matrix, Statistical, Includes Power Supply and Serial Cable. GLP/GMP/GCP/ISO Compliant.

List Price: $890.00

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.

Related Products

FX Iwp (1)

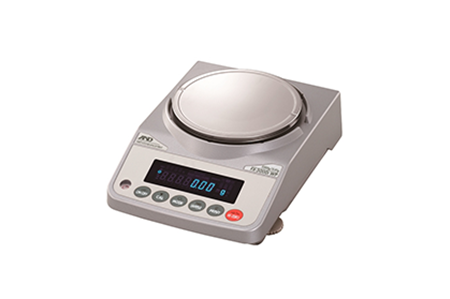

FX-iWP Series, A&D Weighing Precision Washdown Balance
