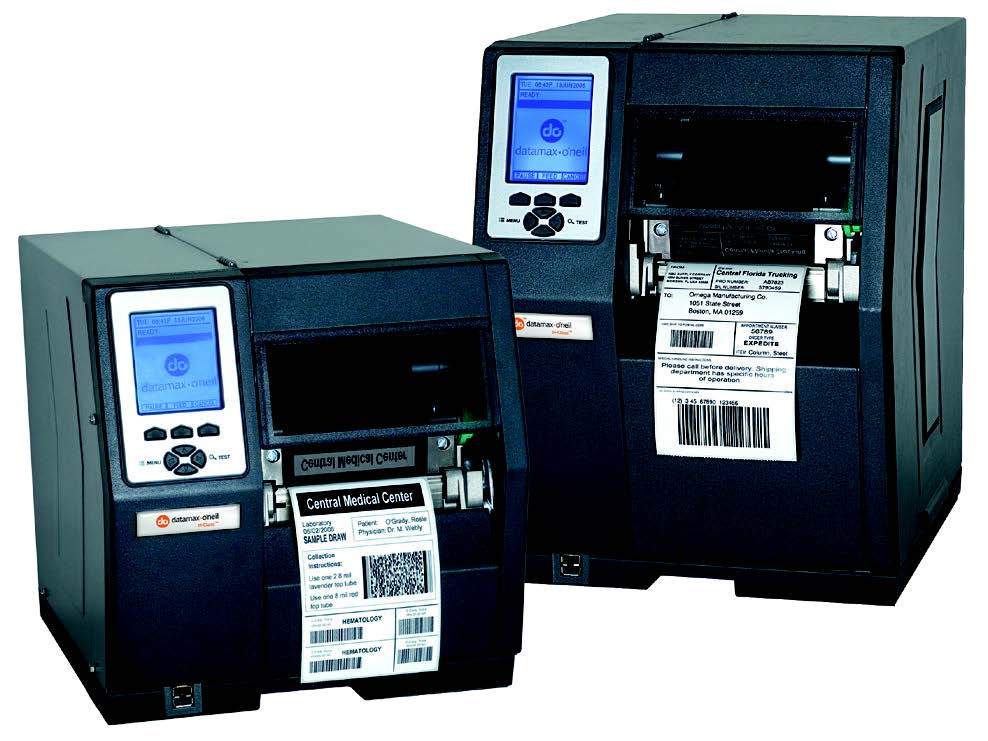

Honeywell H-4212/H-4310 Thermal Transfer Printer (Discontinued)

  • Peel and present
  • Thermal transfer
  • Nine bitmapped fonts
  • Scalable engine
  • Revolving media hub
  • 16 MB RAM (optional)
  • Media window
  • 8 MB flash RAM
  • Options easily field-installed
  • Honeywell CD-ROM (contains Windows® print drivers and manuals)
  • MCL Enabled
  • Optional R series RFID and RFID ready printers
  • Real-time clock
  • Secure digital input (SDID) card slot-SDID flash memory card


Some approval documents are available to view by clicking the icons below.

UL Listed CE Mark CSA

WARNING: Cancer and Reproductive Harm California Proposition 65

The H-Class printer gear-driven design provides rugged and reliable performance for mission critical service. The large graphical display provides an easy-to-read view for quick navigation and printer notifications. In addition, H-Class printers are designed with options to address evolving RFID applications.

Print Speed:
H-4310(x): 2 in to 10 in per second
H-4212(x): 2 in to 12 in per second (50.8 to 304.8 mm) in 0.5 in (0.01 mm)
programmable increments

H-4212x-200 dpi
H-4310x-300 dpi

Maximum Print Width/Length:
Width: 4.10 in (H-4212x) 4.16 in (H-4310x)
Length: 0.25 in to 99 in (6 mm to 2475 mm) 0.75 in (19 mm) minimum print length with optional present sensor

Media Width:
1 in to 4.65 in (25 mm to 118 mm)

Supply Roll:
8 in (203 mm) maximum diameter on 3 in (76 mm) core. Fan-fold stock accepted from rear and bottom of printer

Industry standard ribbon widths; 1 in (25 mm) ribbon core, 1,968 ft (600 m) in length

Macro Command Language allows printer to control the printing application

H-4212: (H x W x D): 13.0 x 12.6 x 18.9 in
H-4310: (H x W x D): 16.37 x 12.51 x 18.83 in
RFID printers (Contact Rice Lake)
CABINET: Metal construction, clear side window

Bar Codes:
Code 3 of 9, Interleaved 2 of 5, Code 128,
Codabar, UPC-A, UPC-E, UPC 2 and 5 digit
addendums, EAN-8, EAN-13, EAN 2 and 5 digit
addendums, Code 93, Plessey, UCC/EAN
Code 128, Postnet, PDF 417, UPS MaxiCode,
Datamatrix, FIM,Telepen, HIBC, Aztec, TLC39,
QR Code, PDF417, USD-8, Micro PDF41, 7,

Graphics Support:
.PCX, .BMP and .IMG files

8 MB Flash Memory; 16 MB DRAM memory

Centronics® parallel port (IEEE 1284 compliant), RS232/422 (DB-9F) at 2400 to 38400 BPS
Ethernet, USB

Power Source:
Auto-sensing 115, 230 VAC 50/60 Hz; specify appropriate power cord when ordering

Operating Temperature:
32° F to 100° F (0° C to 38° C)

UL listed, CSA certified, CE marked, FCC Class A emissions standard, TUV-GS safety standards, RoHS and WEE compliant

47 lb

One-year limited warranty on parts.
One-year or 1 million linear inches on original print head.
90 days on replacement print head.

Resources / Downloads

Title Download Email
Honeywell H-4212/H-4310 Catalog Page Download Email

Title Version Revision Download Email Category Archived
Honeywell Programming Language and Storage Download Email Printers No

Title Download Email
Custom Label Format Form Download Email

Title Download Email
Honeywell Label Printers Replacement Parts Catalog Page Download Email

Title Version Size Release Date Download Email
Honeywell Label Format Strings 1 7.1 KB 10/19/2009 Download Email
Revolution Format Examples DPL 1 7.6 KB 11/11/2011 Download Email

Title View Download Email Category
ScaleTalk: Direct Thermal vs Thermal Transfer Paper View Download Email


Part # Description List Price Cart
96885 Printer,Label H-4212X H-Class, Direct/Thermal Transfer, 12ips, 203dpi, Internal Rewind, Auto-Sensing 90 - 132 or 180-264VAC, US power cord

List Price: $3,330.00


Accessories & Consumables

Part # Description List Price Cart
96957 Printer,OPT Printhead 203 dpi, H-Series

List Price: $475.00

68517 Rewinder,Label DMXREW1 Label Rewinder/Unwinder

List Price: $495.00

96956 Printer,OPT Cutter Kit 10 mil stock, H-Series

List Price: $1,480.00

53913 Printer OPT,Font Expansion Kit, RTC, GPIO and 8MB Flash Memory I Class Mark I / W Class

List Price: $165.00

Label Stock/Ribbon (W x L)

Cables, Adapters and Connectivity

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
