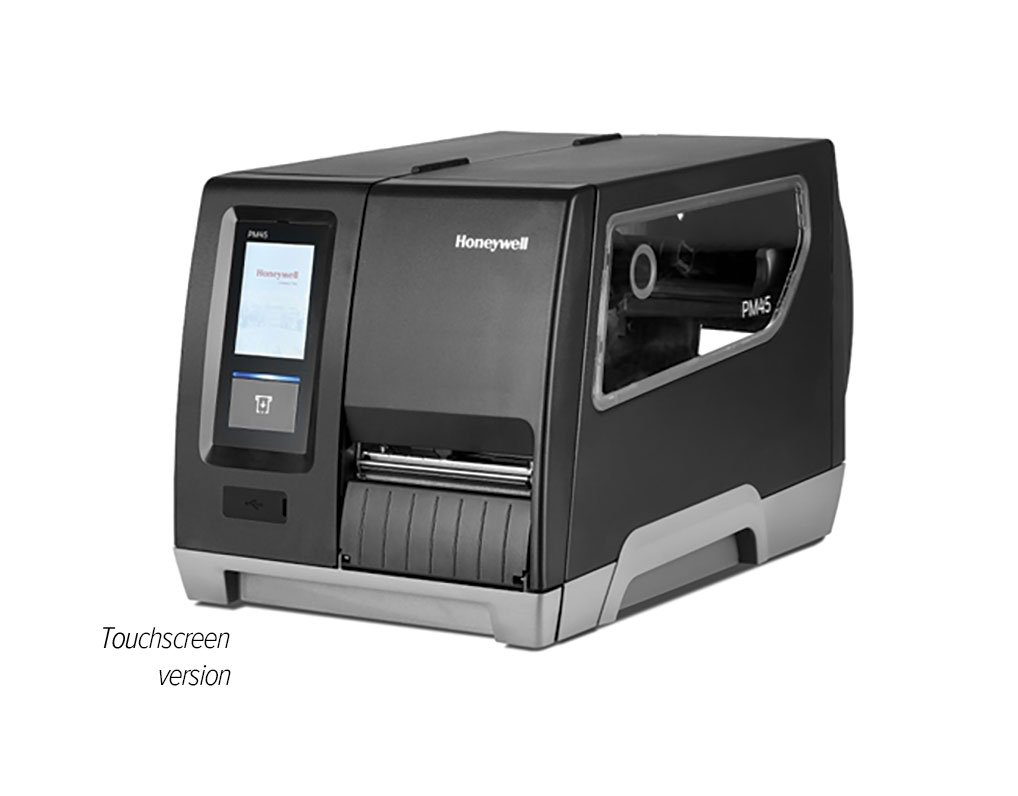

Honeywell PM45 Direct Thermal / Thermal Transfer Label Printer

Print Speed:
203 dpi: 2 to 14 ips
300 dpi: 2 to 12 ips

Supply Roll Capacity:
Maximum 8.375 in diameter on 3 in core

Media Width:
0.79 to 4.5 in

Media Type:
Tag, label, ribbon

Print Length:
0.25 to 99 in (6 to 247 mm)

Media Thickness:
0.003 to 0.01 in

Ribbons (Optional):
2 in core, up to 4.33 in wide

Printer Command Language:
WMS, FP, DPL, IPL, ZPL II, XML, DP

Bar Codes:
SCC-14, HIBC 39, EAN-13, HIBC 128, ITF-14, EAN-128, GS1 Databar Expanded, ISBT 128, Code 39, EAN-8, Code 128, GS1-128, UPC-E, UPC-A, Interleavened 2 of 5, RSS14E, ISBT Data Matrix, Data Matrix

Graphics Support:
PNG, GIF, PCX, BMP

Memory:
256 MB Flash/1GB Ram

Interfaces:
USB 2.0 Host (x2), USB 2.0 Device, Ethernet 10/100 Mbps, RS-232 (up to 115.2 KB/s)

Power Source:
100 to 240 VAC, 50/60 Hz

Operating Temperature:
41 °F to 104 °F (5 °C to 40 °C)

Dimensions:
(L × W × H)
19.0 × 11.2 × 11.6 in

Weight:
50.71 lb (23 kg)

Warranty:
One-year limited
Printhead (original): One-year or 1 million linear inches
Printhead (replacement): 90 days

Approvals:
CE
UL
