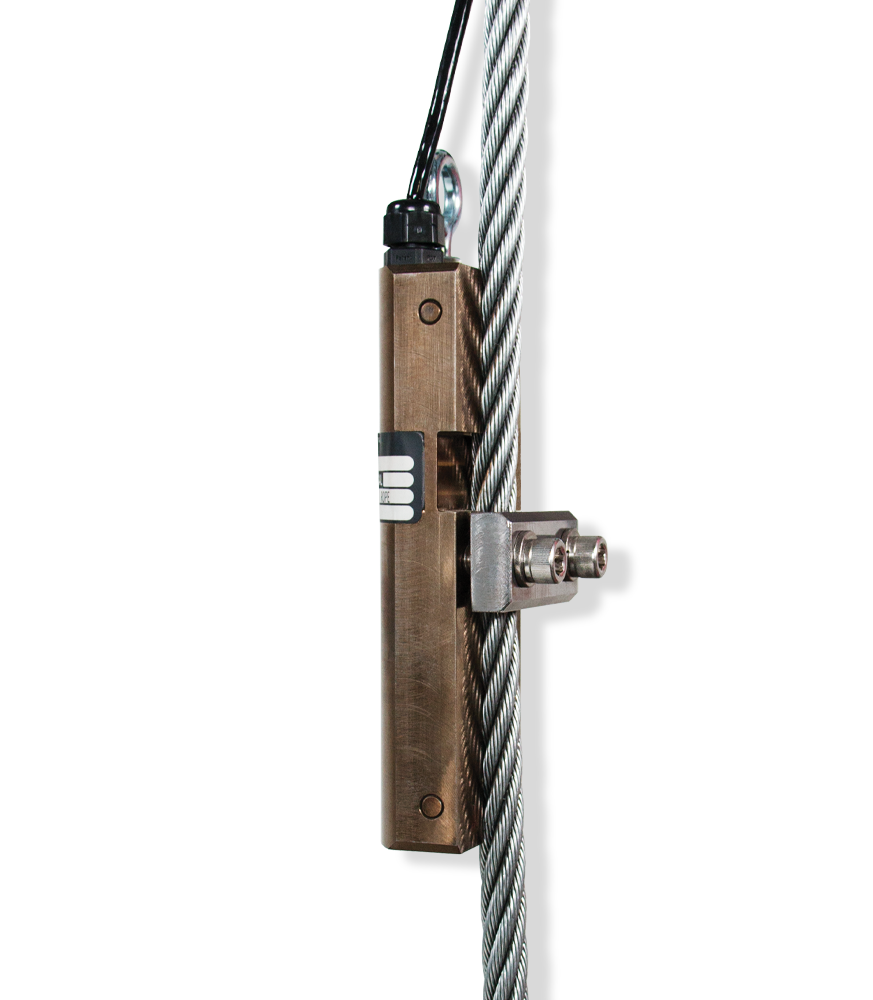

MSI Clamp-On Load Cell
- ETD 150 construction
- Accommodates up to 3/4 in wire rope size
- Larger diameter clamp-on available - call for pricing
Options
(Contact MSI for application consultation)
- Custom sizes available on request
- Pair with an SCT transmitter for basic safety functions
A Durable Solution for Measuring Wire Rope Tension
The MSI Clamp-on Load Cell is a durable solution for measuring wire rope tension, providing dependable overload detection and prevention for overhead cranes and hoists. Available in two envelopes to accommodate most common wire ropes, 3/8-1/2 inch and 9/16-3/4 inch, the MSI Clamp-on installs quickly and easily to the wire rope dead end. The integral signal cable can be connected to a variety of detection device such as the MSI-8004 LED indicator or an advanced SCT weight transmitter. Weight-based setpoints can be used to communicate with crane electronics providing operator alerts and safety shut offs based on unsafe load conditions.
MSI Clamp-On Specifications
|
System Accuracy of Calibrated Capacity: Material: |
Output Resistance: IP Rating: |
Cable Color Code: Cable Length: |
MSI Clamp-On Dimensions
| Cable Range | P/N | A | B | C |
|---|---|---|---|---|
| 3/8 - 1/2 | 179080 | Cable + 1.70 | 6.00 | 2.00 |
| 9/16-3/4 | 179082 | Cable + 1.67 | 6.00 | 2.00 |
Resources / Downloads
Articles
| Title | View | Category | Type | |
|---|---|---|---|---|
| Clamp-On Load Cell Basics |  Email |
Overhead Weighing Systems | Articles | |
| Why Buy MSI? | Email |
Overhead Weighing Systems|Tension Dynamometers | Articles |
Sales Literature
| Title | Collateral Wizard | Request | Download | Category | |
|---|---|---|---|---|---|
| Crane Scale Selection Guide | Request | Download | Email |
MSI Crane Scales|Overhead Weighing Systems | |
| MSI Clamp-On Kit | Download | Email |
MSI Crane Scales | ||
| MSI Tension Link and MSI Clamp-on Load Cell | Request | Download | Email |
MSI Crane Scales | |
| The Overhead Weighing Solutions Buyer's Guide | Request | Download | Email |
Systems Integration/Load Cells|Tension Dynamometers|MSI Software|MSI Aircraft Load Monitoring|MSI Crane Scales|Overhead Weighing Systems | |
| 6 Step Integrated Crane Weighing Component Selector Guide | Request | Download | Email |
MSI Crane Scales |
Videos / Webinars
| Title | View | Download | Category | |
|---|---|---|---|---|
| Ensure Safety with MSI | View | Download | Email |
Overhead Weighing Systems|MSI Crane Scales|Systems Integration/Load Cells|Hanging Scales|Weight Indicators|MSI Software|MSI Aircraft Load Monitoring |
| Get to Know Rice Lake’s MSI Clamp-On Load Cell | View | Download | Email |
Overhead Weighing Systems |
| Get to Know MSI Integrated Solutions | View | Download | Email |
Overhead Weighing Systems|Systems Integration/Load Cells |
Ensure Safety with MSI
Get to Know Rice Lake’s MSI Clamp-On Load Cell
Get to Know MSI Integrated Solutions
Parts
| Part # | Description | List Price | Cart |
|---|---|---|---|
| 179080 | Load Cell Assembly Clamp-On For 3/8 to 1/2 Inch Wire Rope |
List Price: $750.00 |
|
| 179082 | Load Cell Assembly Clamp-On For 9/16 to 3/4 Inch Wire Rope |
List Price: $890.00 |
|
| 188816 | 3/8 ClampOn and SCT2200 System Kit, includes 179080 (Clamp On),182589 (SCT2200-AN) and 88792 (12VDC DIN rail PSU) |
List Price: $1,330.00 |
|
| 188817 | 9/16 ClampOn and SCT2200 System Kit, includes 179082 (Clamp On),182589 (SCT2200-AN) and 88792 (12VDC DIN rail PSU) |
List Price: $1,470.00 |
Options
No options found for this product
