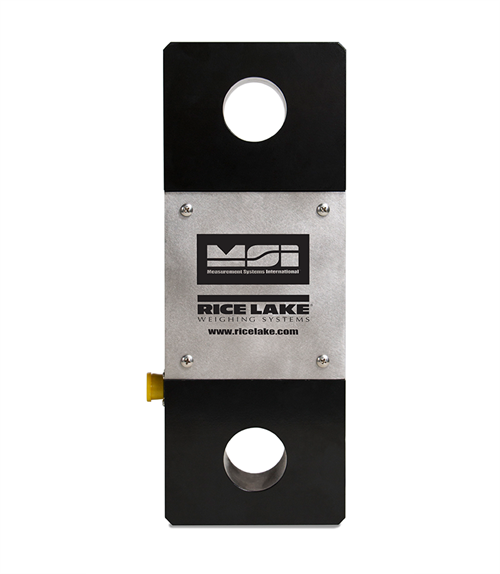

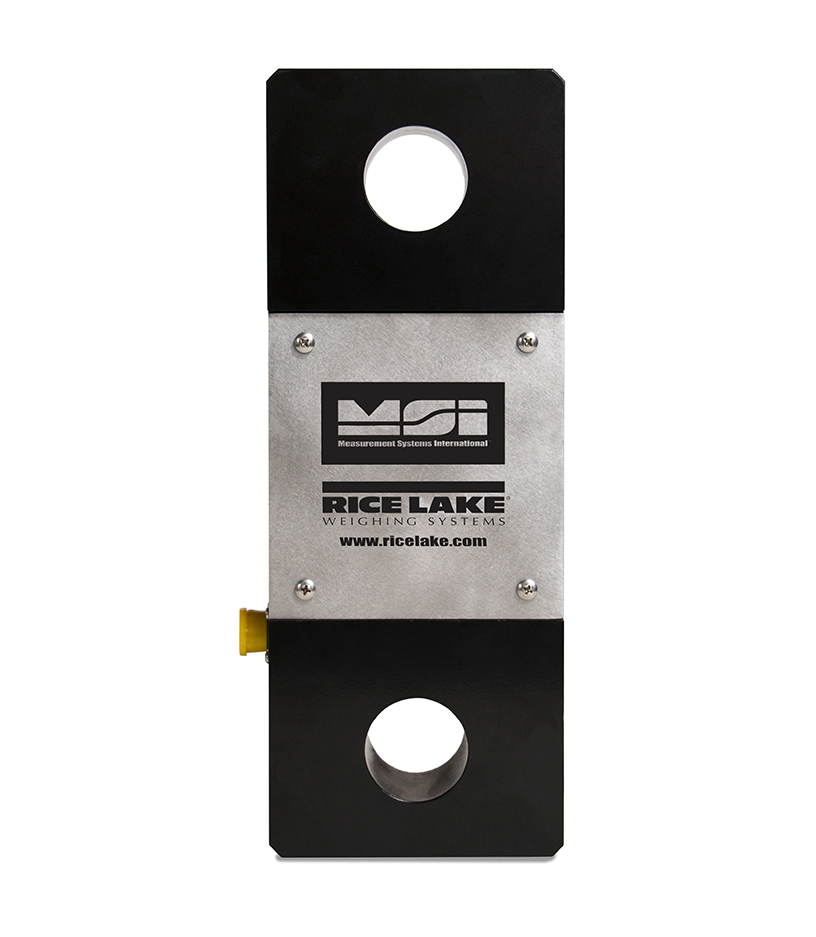

MSI Tension Link Load Cell

(contact MSI for application consultation)

  • 4340 steel construction
  • Mil spec connector
  • 7:1 safety factor

Options

  • Crosby® top and bottom shackles

The MSI Tension Link integrates between a crane block and lifting equipment to provide force measurement for lifted items, making it an ideal integration for cranes. The MSI Tension Link features a 7:1 safety factor for compliance with industrial and military safety requirements.

Material:
4340 steel

Input Resistance:
1,500 ohm

Output Resistance:
2,000 ohm

Full Scale Output:
0.8 mV/V

Accuracy:
0.1% sensor accuracy

Connector Pin Out:
A: EX+
B: Sig +
C: Sig –
D: EX-

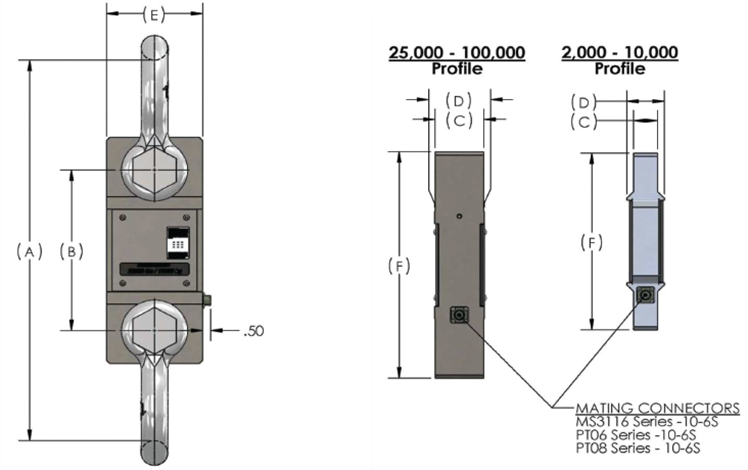

Capacity
(lbs)

P/N Load Cell
Material
(A)
Headroom Loss
(B)
C-C Length

(C)
Lug Thk

(D)
Body Thk
(E)
Body Width

(F)
Body Length

Lug Hole Crosby Shackle
2,000 181907 Aluminum 13.50 8.00 0.99 2.13 4.50 9.75 0.78 3-1/4 T 151357
5,000 181908 Aluminum 13.50 8.00 0.99 2.13 4.50 9.75 0.78 3-1/7 T 151357
10,000 181909 Aluminum 16.13 8.50 1.35 2.13 5.37 10.75 1.05 6-1/2 T 151355
25,000 178093 Steel 22.39 9.26 2.24 2.24 4.80 12.76 1.67 17 T 141992
50,000 178094 Steel 25.74 9.76 2.74 2.81 5.43 13.76 2.05 25 T 151356
100,000 181910 Steel 28.49 10.74 3.09 3.09 6.86 15.74 2.30 55 T 146336
