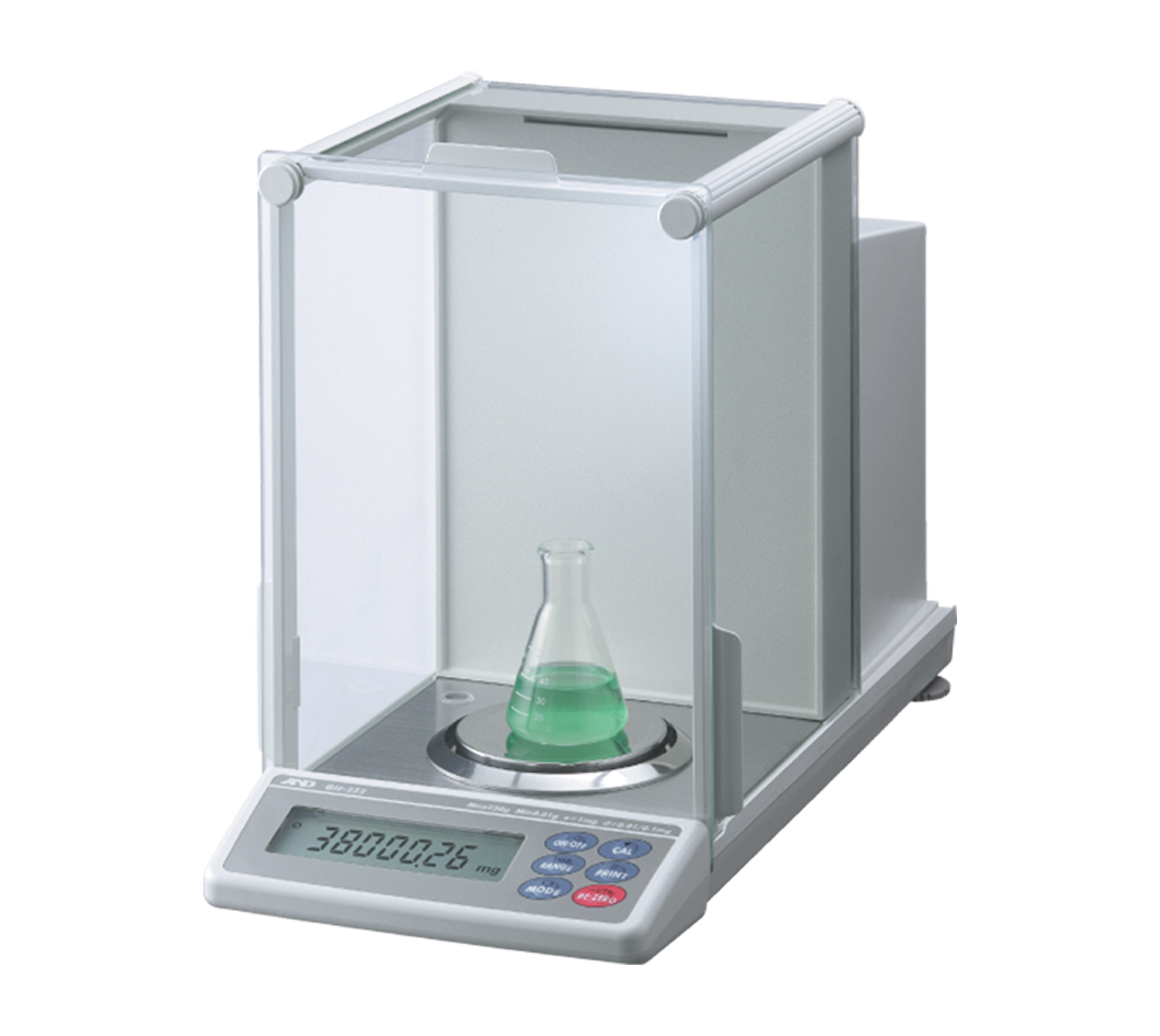

Phoenix GH Series, A&D Weighing Micro/Semi-Micro Balance

  • Simple and easy to operate, adapts to your environment
  • GLP/GMP/GCP/ISO compliant which outputs the calibration data and ID number of the balance for calibration confirmation to the AD-8121B printer
  • Internal calibration mass; full digital calibration
  • System diagnostic to alert operator of abnormal weighing conditions
  • Weighing chamber
  • Underhook weighing
  • RS-232 interface for connecting to printer or PC
  • Data memory function
  • Time and date function
  • WinCT©; communication tools software
  • Liquid crystal display (LCD)

Weighing Units:
Carat, Pennyweight, Troy Ounce, Decimal Ounce (See technical manual for complete listing)

Operating Modes:
Percentage, Counting

Power:
120 V AC (AC Adapter) 50 Hz/60 Hz, 11 VA (110, 220, 240 available by special order)

Stabilization Time:
Approx. 3.5 sec (0.1 mg)/8 sec (0.01 mg)

Sensitivity Drift (10 °C to 30 °C):
±2 ppm/°C (when automatic self-calibration is not used)

Calibration Weight:
20 g/50 g/100 g/200 g



Operating Temperature:
41 °F to 104 °F (5 °C to 40 °C) 85% RH or less (no condensation)

Est. Weight:
Approx. 18 lb (8.2 kg)

Warranty:
Five-year limited

Return Policy:
A&D Weighing Standard Policy -
restock fee may apply

Model  Capacity Readability Repeatability Linearity Weighing Chamber Pan Size Dimensions Part Number

GH-202

220 g / 51 g

0.0001 / 0.00001 g

±0.2 mg /
±0.03 mg

0.1 mg /
0.02 mg

164 × 149 × 251 mm
(6.45 × 4.87 × 9.88 in)

90 mm
(Ø 3.6 in)

217 × 442 × 316 mm
(8.54 × 17.4 × 12.24 in)

97601

GH-252

250 g / 101 g

0.0001 / 0.00001 g

±0.2 mg /
±0.10 mg

0.1 mg /
0.03 mg

164 × 149 × 251 mm
(6.45 × 4.87 × 9.88 in)

90 mm
(Ø 3.6 in)

217 × 442 × 316 mm
(8.54 × 17.4 × 12.24 in)

97602

Resources / Downloads

Title Download Email
A&D Weighing Phoenix GH Series Micro and Semi-Micro Balance, Catalog Page Download Email

Title Version Revision Download Email Category Archived
A&D Weighing Phoenix GH Series Download Email Precision Balances No

Title Collateral Wizard Request Download Email Category
A&D Weighing Phoenix GH Series Download Email Balances|Precision Balances

Parts

Semi-Micro Models

Part # Description List Price Cart
97602 Balance,A&D,Semi Micro Phoenix GH Series, GH-252, 250g x 0.1mg and 101g x 0.01mg, 120 V adapter

List Price: $5,895.00

97601 Balance,A&D,Semi Micro Phoenix GH Series, GH-202, 220g x 0.1mg and 51g x 0.01mg, 120 V adapter

List Price: $5,350.00

Options

Part # Description List Price Cart
97604 Balance OPT,Ethernet GH Series A&D GH-08

List Price: $299.00

97605 Balance OPT,Anti Theft Device A&D AD-100-2

List Price: $77.00

97606 Balance OPT,Density Determination Kit A&D AD-1653

List Price: $579.00

97607 Balance OPT,Battery Pack Rechargeable A&D AD-1682

List Price: $710.00

97608 Balance OPT,Universal Remote Display A&D AD-8920

List Price: $275.00

97609 Balance OPT,Remote Controller A&D AD-8922

List Price: $650.00

97610 Balance OPT,Static Eliminator A&D AD-1683

List Price: $1,275.00

151247 Data Logger,AD-1688 3 Cables (1 m) 9-pin, 25-pin, 7-pin connectors, to USB, Time & Date, 5000 memory storage

List Price: $320.00

97612 Foot Switch,SW:128 A&D

List Price: $85.00

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
