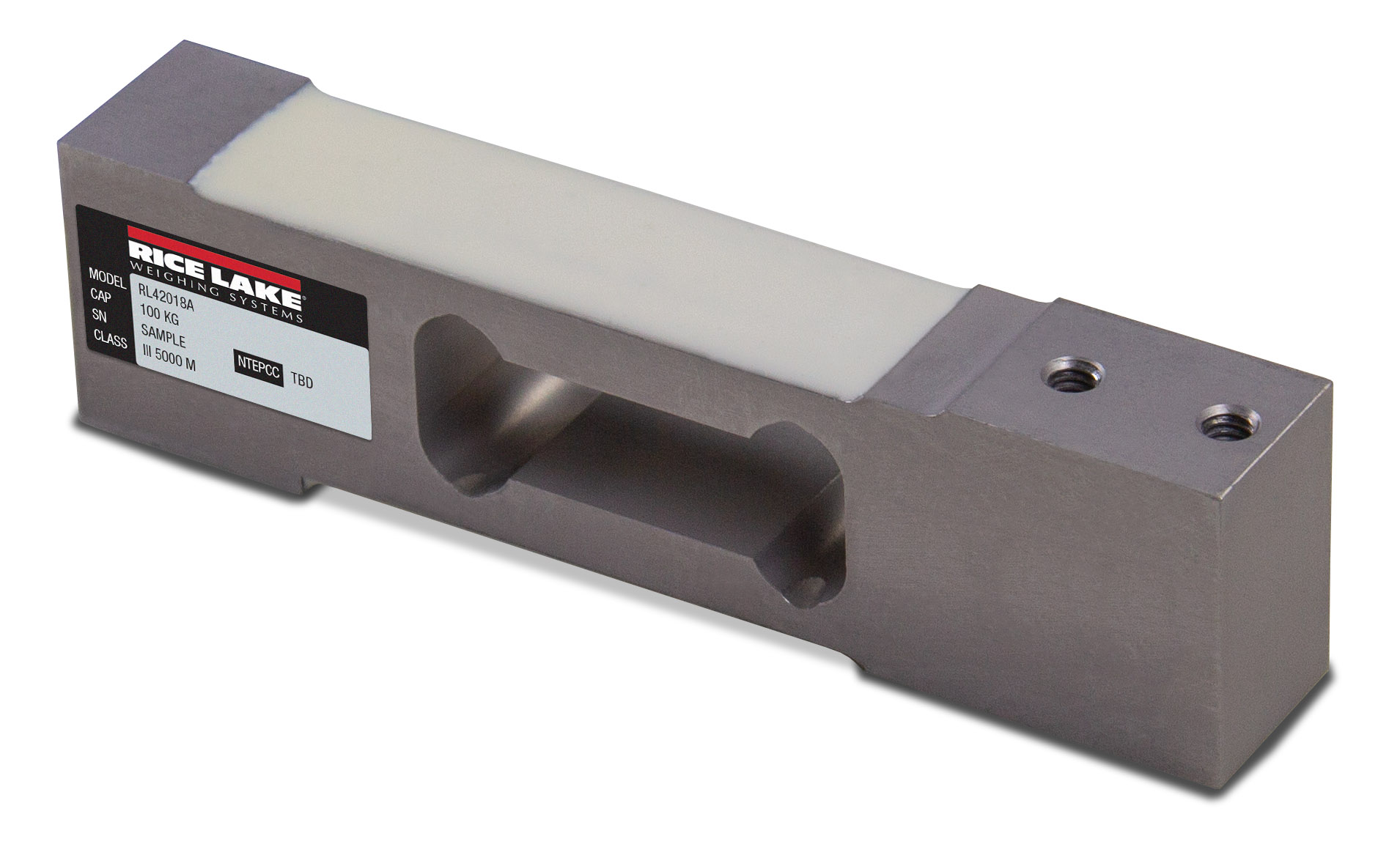

Rice Lake RL42018A Aluminum, Single Point Load Cell
An aluminum, IP66 single point load cell. Available in capacities ranging from 3 to 100 kg and has NTEP Certified and FM approvals. Includes 10 ft of load cell cable.
Approvals
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
RL42018A Load Cell Specifications
|
Full Scale Output: Output Resistance: Input Resistance: Material/Finish: Temperature: |
Seal Type: Safe Overload: Rated Excitation: Combined Error: Insulation Resistance: Deflection at Capacity: |
Cable Length: Cable Color Code: Max Platform Size: Warranty: Approvals: |
RL42018A Load Cell Dimensions
| Rated Capacity | A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|
| kg/mm | ||||||||
| 3 to 30 | 150.0 | 100.0 | 19.0 | 20.0 | 40.0 | 31.2 | 34.0 | 1/4-20 UNC |
| 50 to 100 | 150.0 | 100.0 | 19.0 | 25.4 | 40.0 | 31.2 | 34.0 | 1/4-20 UNC |
Resources/Downloads
Sales Literature
| Title | Collateral Wizard | Request | Download | Category | |
|---|---|---|---|---|---|
| Load Cell Wiring Guide | Request | Download |  Email |
Load Cells | |
| Load Cell Selection Guide | Request | Download | Email |
Load Cells|Weigh Modules | |
| Load Cell and Weigh Module Selection Guide | Request | Download | Email |
Load Cells|Weigh Modules | |
| Load Cell and Weigh Module Handbook | Request | Download | Email |
Load Cells|Weigh Modules |
Parts
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 188672 | Load Cell, SPT RL42018A 3kg 10ft 2mv/v 350 Ohm NTEP III 5S Al FM IP66 |
List Price: $190.00 |
|
| 188673 | Load Cell, SPT RL42018A 5kg 10ft 2mv/v 350 Ohm NTEP III 5S Al FM IP66 |
List Price: $190.00 |
|
| 188674 | Load Cell, SPT RL42018A 7kg 10ft 2mv/v 350 Ohm NTEP III 5S Al FM IP66 |
List Price: $190.00 |
|
| 188675 | Load Cell, SPT RL42018A 10kg 10ft 2mv/v 350 Ohm NTEP III 5S Al FM IP66 |
List Price: $190.00 |
|
| 188676 | Load Cell, SPT RL42018A 15kg 10ft 2mv/v 350 Ohm NTEP III 5S Al FM IP66 |
List Price: $190.00 |
|
| 188677 | Load Cell, SPT RL42018A 20kg 10ft 2mv/v 350 Ohm NTEP III 5S Al FM IP66 |
List Price: $190.00 |
|
| 188678 | Load Cell, SPT RL42018A 30kg 10ft 2mv/v 350 Ohm NTEP III 5S Al FM IP66 |
List Price: $190.00 |
|
| 188679 | Load Cell, SPT RL42018A 50kg 10ft 2mv/v 350 Ohm NTEP III 5S Al FM IP66 |
List Price: $190.00 |
|
| 188680 | Load Cell, SPT RL42018A 75kg 10ft 2mv/v 350 Ohm NTEP III 5S Al FM IP66 |
List Price: $190.00 |
|
| 188681 | Load Cell, SPT RL42018A 100kg 10ft 2mv/v 350 Ohm NTEP III 5S Al FM IP66 |
List Price: $190.00 |
