Product PDF

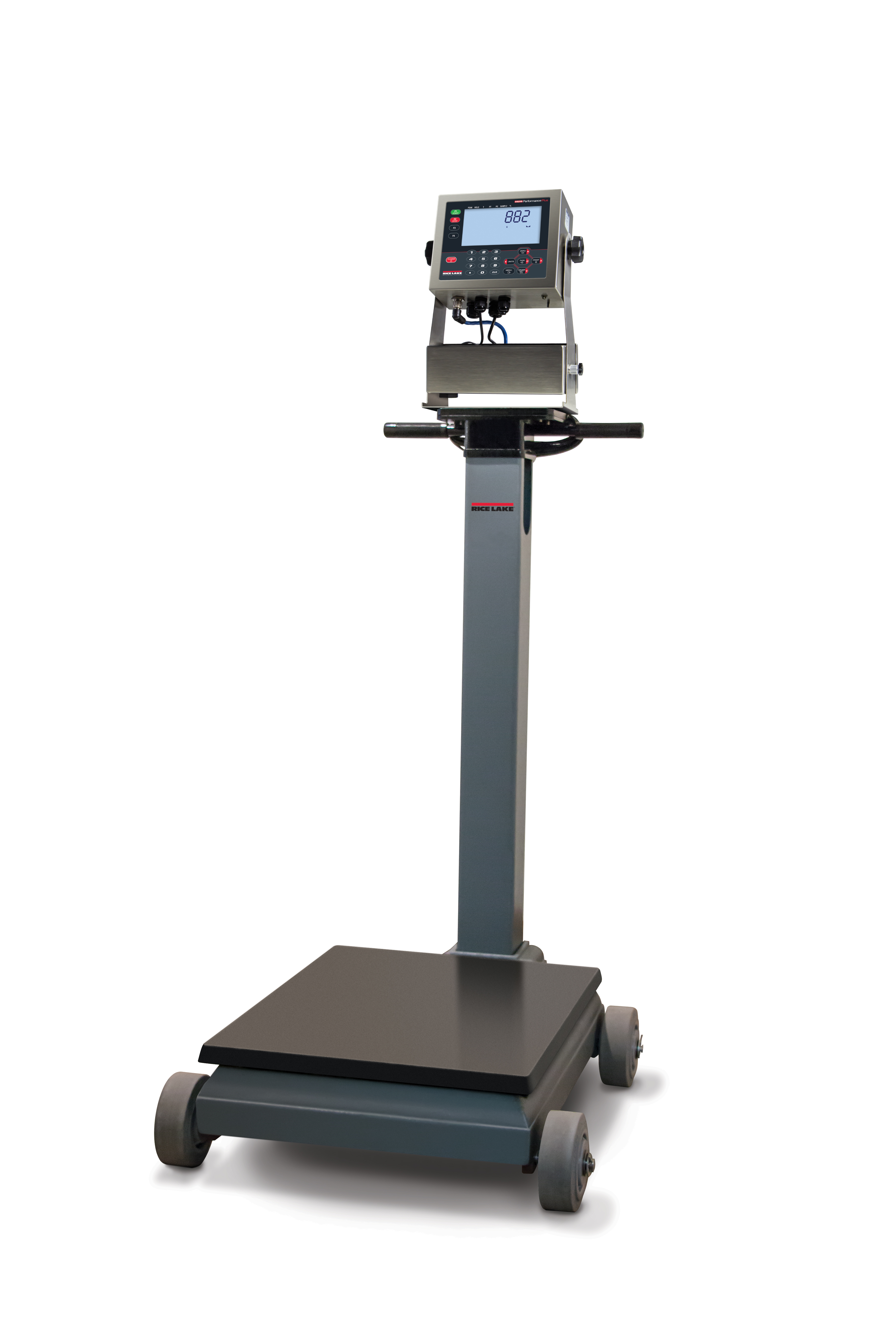

RL1200 IS Intrinsically Safe Electromechanical Portable Beam Scale

Scale

  • NTEP Certified
  • 1,000 lb capacity
  • Conductive wheels to eliminate static buildup and discharge
  • Handle for ease of portability

Indicator

  • Intrinsically safe
  • LCD display with white LED backlight
  • Power on/off; battery save mode
Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO FM Approved

WARNING: Cancer and Reproductive Harm California Proposition 65
Portals 0 Products Bac7d9c903b74bb38927bd1d191cb895 Orig

Construction:
Cast-iron platform, base and levers

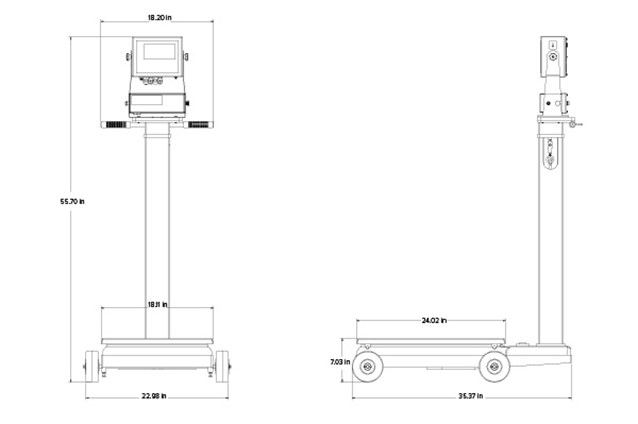

Platform Dimensions:
(L × W): 24 × 18 in

Capacity:
1,000 lb

Approvals:
NTEP 93-004 Class III 2,000 d

 Warranty:
One-year limited

Power:
Input: 5.8 to 7.9 VDC, 100 to 175 mA

Battery (optional):
60 hours with 4 × 350 ohm load cells
80 to 100 hours with 1 × 350 ohm load cell
8 to 10 hour charging time

Annunciators:
Center of zero, gross, net, motion, lb, kg, oz, g

Display Increments:
1, 2, 5

Display:
Seven-digit, seven-segment LCD display
121 × 24 dot matrix messaging area
White LED backlight

Keys/Buttons:
Flat membrane panel, tactile feel
882IS: zero, gross/net, tare, print, units conv, start, stop, on/off
882IS Plus: zero, gross/net, tare, print, units conv, start, stop, full numeric keypad, on/off

Rating/Material:
IP66 enclosure
Stainless steel

Warranty:
One-year limited

Approvals:
cULus Listed*
FM Entity
ATEX
IECEx
NTEP CC 19-015
Measurement Canada AM-6124C
OIML R76/2006-A-NL1-21.11
EU Test Certificate T11166
cULus* Listed
CE Marked
*cULus is only applicable to 882IS I/O and battery charger

Resources/Downloads

Title View Email Category Type
What Is Intrinsic Safety? Email Intrinsically Safe Articles

Title Download Email
RL1200 IS Catalog Page Download Email

Title Version Revision Download Email Category Archived
RL1200 Installation and Operation Manual A Download Email Platform Scales|Floor Scales|Portable Beam Scale No
Load Cell and Weigh Module Handbook D Download Email Load Cells|Weigh Modules No

Title View Download Email Category
ScaleTalk: What are Hazardous Areas? View Download Email
MS-101 Mechanical Scale Training View Email Mechanical Scale Parts
Mechanical Basics: Part 1 View Download Email Mechanical Scale Parts
Mechanical Basics: Part 2 View Download Email Mechanical Scale Parts
Mechanical Basics: Part 3 View Download Email Mechanical Scale Parts|Mechanical Health Scales|Mechanical Balances
Mechanical Basics: Part 4 View Download Email Mechanical Scale Parts

Parts

Part # Description List Price Cart/Quote
195558 Scale,RL1200IS Elect. Conversion 882IS Indicator with battery pack and charger, 1000 x .5lb, NTEP III The 882IS is designed and approved for use in specific Hazardous (classified) areas by Factory Mutual (FM). These areas are classified by the NFPA70, National Electric Code (Article 500) as: Class I,II,III Divisions 1 or 2 and Groups ABCDEFG T4 and Class I, Zone 0 AEx/Ex ia IIC T4 Ga Zone 21 AEx/Ex ib IIIC T135C Db Ta = -10C to 40C(14F to 104F) and ATEX/IECEx II 1G Ex ia IIC T4 Ga II 2 D Ex ib IIIC T135C Db it is the responsibility of the reseller to keep a permanent traceable record of the location (end user) of the Equipment or return a completed Rice Lake Weighing Systems "Hazardous Area Classification Form" signed by the reseller and users hazardous(classified) area defining authority for our acceptance and permanent record. Proper specification, installation, operation and service of this equipment to National and Local regulations are the responsibility of the end user. Any field modifications of the product voids any and all warranty and FM Approval.

List Price: $4,745.00
195560 Scale,RL1200IS Elect. Conversion 882IS Plus Indicator with battery pack and charger, 1000 x .5lb, NTEP III The 882IS is designed and approved for use in specific Hazardous (classified) areas by Factory Mutual (FM). These areas are classified by the NFPA70, National Electric Code (Article 500) as: Class I,II,III Divisions 1 or 2 and Groups ABCDEFG T4 and Class I, Zone 0 AEx/Ex ia IIC T4 Ga Zone 21 AEx/Ex ib IIIC T135C Db Ta = -10C to 40C(14F to 104F) and ATEX/IECEx II 1G Ex ia IIC T4 Ga II 2 D Ex ib IIIC T135C Db it is the responsibility of the reseller to keep a permanent traceable record of the location (end user) of the Equipment or return a completed Rice Lake Weighing Systems "Hazardous Area Classification Form" signed by the reseller and users hazardous(classified) area defining authority for our acceptance and permanent record. Proper specification, installation, operation and service of this equipment to National and Local regulations are the responsibility of the end user. Any field modifications of the product voids any and all warranty and FM Approval.

List Price: $5,235.00
