Rice Lake RL20001HE Stainless Steel, S-Beam Load Cell

A full stainless steel, welded-seal, S-beam featured in our ITCM HE products, and it is ideal for the harshest tension mounting applications. NTEP Certified capacities range from 500 lb to 5,000 lb; non-NTEP Certified capacity of 10,000 lb.

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65

Full Scale Output:
2.0 mV/V

Bridge Resistance:
350 ohm, nominal

Material/Finish:
Stainless steel

Temperature:
Compensated:
14 °F to 104 °F (-10 °C to 40 °C)
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Welded-seal, IP68

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
20 ft

Cable Diameter:
0.200 in
Polyurethane jacket

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
Two-year limited

Approvals:
cFMus
NTEP 98-071

Rated Capacity A B D E
lb/in
500 to 3,000 1/2-20 UNF 1.00 2.00 3.00
5,000 to 10,000 3/4-16 UNF 1.00 3.50 4.75





Resources/Downloads

Parts

NTEP Certified

Part # Description List Price Cart/Quote
46469 Load Cell,SBM RL20001HE- 500 500lb 20ft 2mV/V 350 Ohm WW SST WS NTEP III 5S/IIIL 10S IP68

List Price: $900.00

46470 Load Cell,SBM RL20001HE- 750 750lb 20ft 2mV/V 350 Ohm WW SST WS NTEP III 5S/IIIL 10S IP68

List Price: $900.00

46471 Load Cell,SBM RL20001HE- 1K 1000lb 20ft 2mV/V 350 Ohm WW SST WS NTEP III 5S/IIIL 10S IP68

List Price: $900.00

46472 Load Cell,SBM RL20001HE- 1.5K 1500lb 20ft 2mV/V 350 Ohm WW SST WS NTEP III 5S/IIIL 10S IP68

List Price: $900.00

46473 Load Cell,SBM RL20001HE- 2K 2000lb 20ft 2mV/V 350 Ohm WW SST WS NTEP III 5S/IIIL 10S IP68

List Price: $900.00

46474 Load Cell,SBM RL20001HE- 2.5K 2500lb 20ft 2mV/V 350 Ohm WW SST WS NTEP III 5S/IIIL 10S IP68

List Price: $900.00

46475 Load Cell,SBM RL20001HE- 3K 3000lb 20ft 2mV/V 350 Ohm WW SST WS NTEP III 5S/IIIL 10S IP68

List Price: $900.00

46476 Load Cell,SMB RL20001HE- 5K 5000lb 20ft 2mV/V 350 Ohm WW SST WS NTEP III 5S/IIIL IP68

List Price: $1,205.00

Non-NTEP Certified

Related Products

rl-VPG-sensortronics-60063-s-beam-load-cell

VPG® Sensortronics® 60063 Stainless Steel, S-Beam Load Cell

The VPG Sensortronics 60063 welded seal, stainless steel, S-beam load cell is designed for compression and tension and is ideal for scale conversions and general-purpose weighing.

Portals 0 Products A20697d2cbc34147bca0943baab32f16 Orig

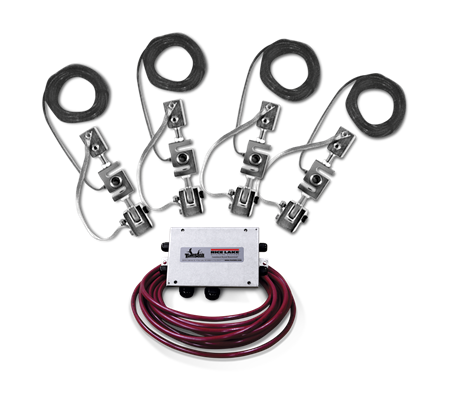

ITCM HE Isolated Tension Cell Module
